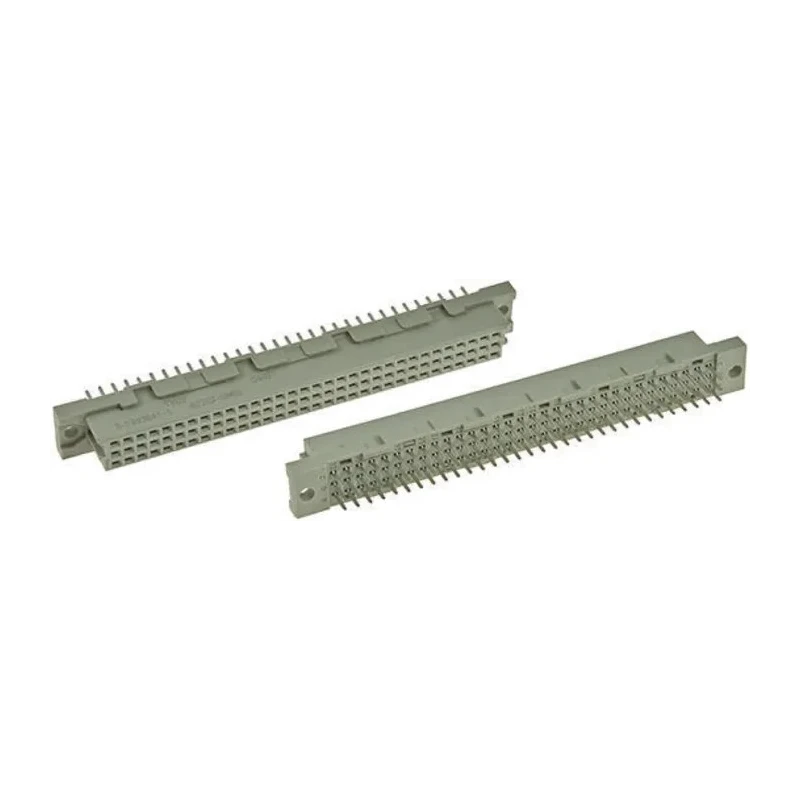

TE Connectivity Eurocard DIN 41612 Connector 48 Way 2.54 mm Pitch Through Hole Type C/2 Solder Class C2 3 Row 8-1393644-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 48 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/B/C |
Key Features
- Compliant with DIN 41612 and IEC 60603-2 standards for reliable signal integrity.
- Features 48 contacts arranged in 3 rows with a 2.54 mm pitch.
- Solder termination type with through hole mounting ensures secure PCB attachment.
- Constructed with copper alloy contacts and thermoplastic housing for durability.
- Operates safely within a voltage rating of 250V AC and current up to 1.5A.
- Rated for temperature range from -55°C to 125°C for versatile industrial environments.
- Class C2 solder class with Type C/2 contact loading and right angle orientation.
- Designed with flame retardant materials and polarization to prevent mis-mating.
Product Description
TE Connectivity 8-1393644-0 Eurocard DIN 41612 Connector is a high-quality, 48-way male connector designed for industrial and electronic component applications requiring secure and reliable interconnection. This connector features a 2.54 mm pitch, three-row configuration, and through hole mounting ensuring strong mechanical and electrical connections on printed circuit boards.
Constructed with copper alloy contacts and a thermoplastic, flame retardant housing, it meets DIN 41612 and IEC 60603-2 standards, suitable for high signal integrity and electrical performance requirements. The solder termination (Class C2) provides robust and durable connections for demanding environments.
This connector supports a maximum current of 1.5 A and a voltage rating of 250 V AC, with operation temperature capability from -55°C to 125°C, making it suitable for use in telecommunications, industrial control systems such as DCS, data centers, storage, servers, modular rack systems, and backplane assemblies.
It is designed with polarization features to prevent mis-mating and offers selective contact loading with Type C/2 contact configuration, presented in a right angle orientation. The connector also comes with options for solder post lengths and incorporates action pin and eye of needle contact tails for enhanced reliability.
Applications include usage in common bus systems such as STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS II, NUBUS, VXi Bus, and VME 64X, widely deployed in industrial and commercial electronic assembly and maintenance.
Complies with DIN 41612 and IEC 60603-2 standards ensuring compatibility and quality. Features a 48-contact, 3-row male Eurocard design with 2.54 mm pitch for high-density connections. Robust copper alloy contacts and flame retardant thermoplastic housing enhance durability.
Through hole solder termination and right angle orientation provide secure mounting. Capable of operating from -55°C to 125°C at 1.5A current and 250V AC voltage rating. Polarized housing prevents incorrect mating during assembly or maintenance.
Suitable for demanding industrial, telecommunications and data center applications. Explore more in the Electronics Components category at EnvMart for reliable DIN 41612 Connectors and related products by TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a voltage rating of 250V AC and can handle a maximum current of 1.5A.
It features a 2.54 mm pitch with 48 contacts arranged in a three-row configuration.
This model utilizes a solder termination type, specifically Class C2, for secure connections.
The contacts are made of copper alloy, and the housing is constructed from thermoplastic material.
It operates safely within a temperature range of -55°C to 125°C.
This model is designed for through hole mounting, ensuring strong mechanical and electrical connections.
It is designed with polarization features to prevent incorrect mating during assembly or maintenance.
It complies with DIN 41612 and IEC 60603-2 standards, ensuring reliability and compatibility.
The connector is designed with a right angle orientation.
It is suitable for telecommunications, industrial control systems, data centers, and modular rack systems, among others.
The maximum contact resistance is rated at 15mΩ.
This connector has 3 rows and a total of 48 contacts.
