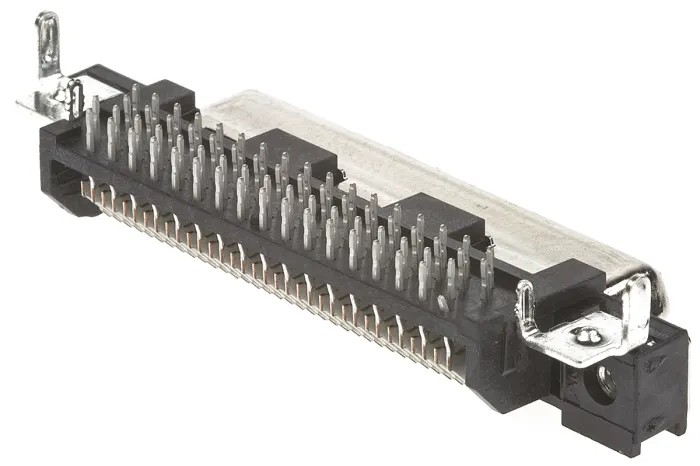

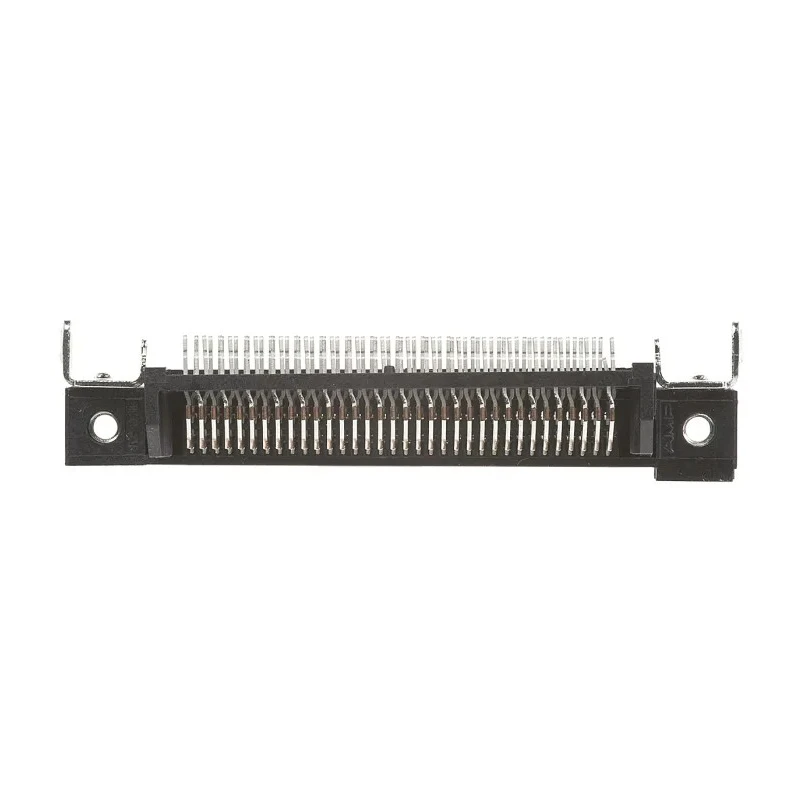

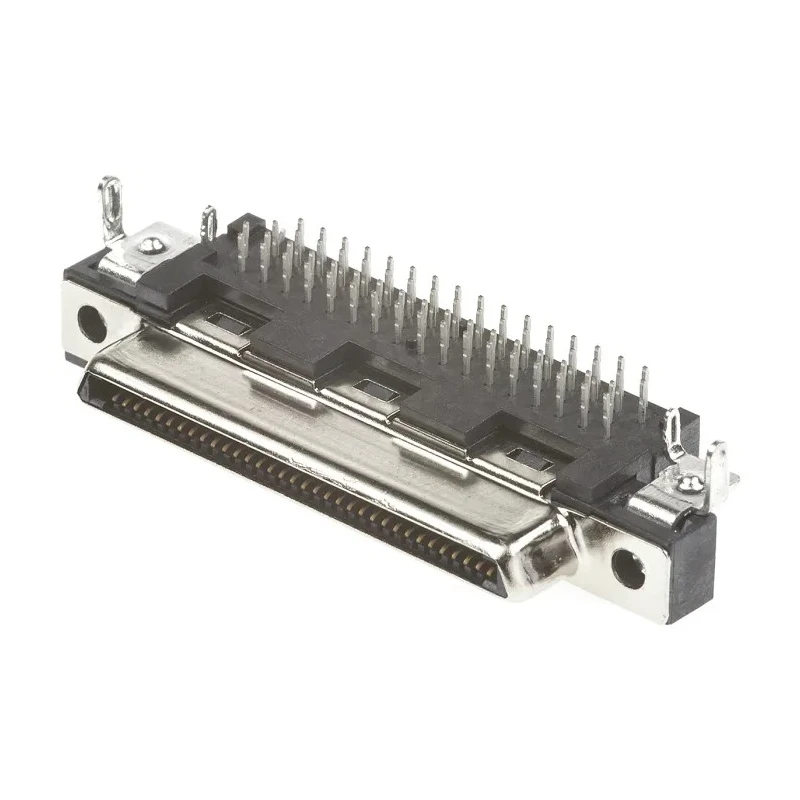

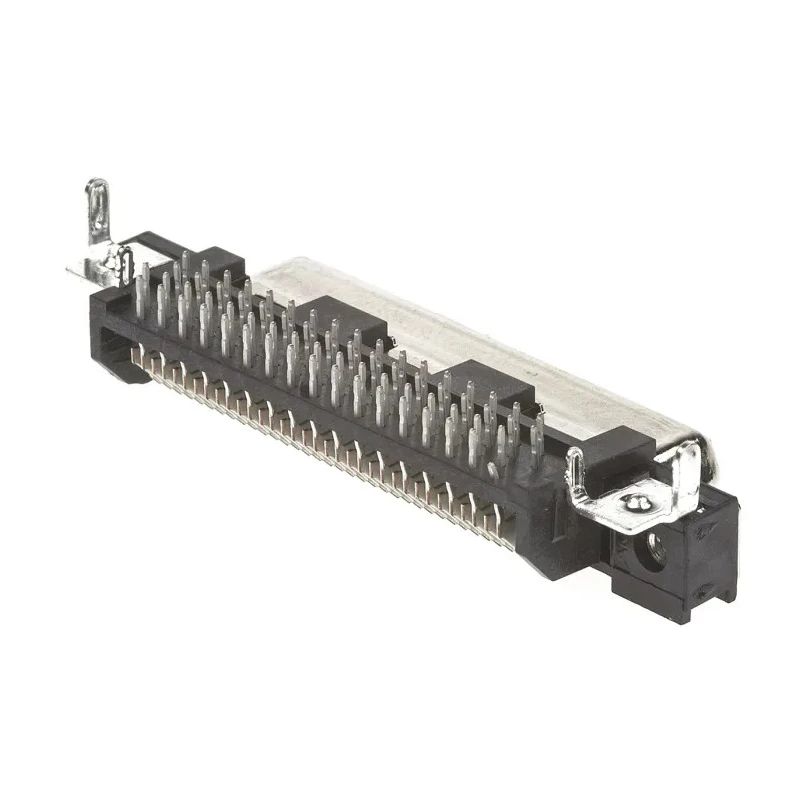

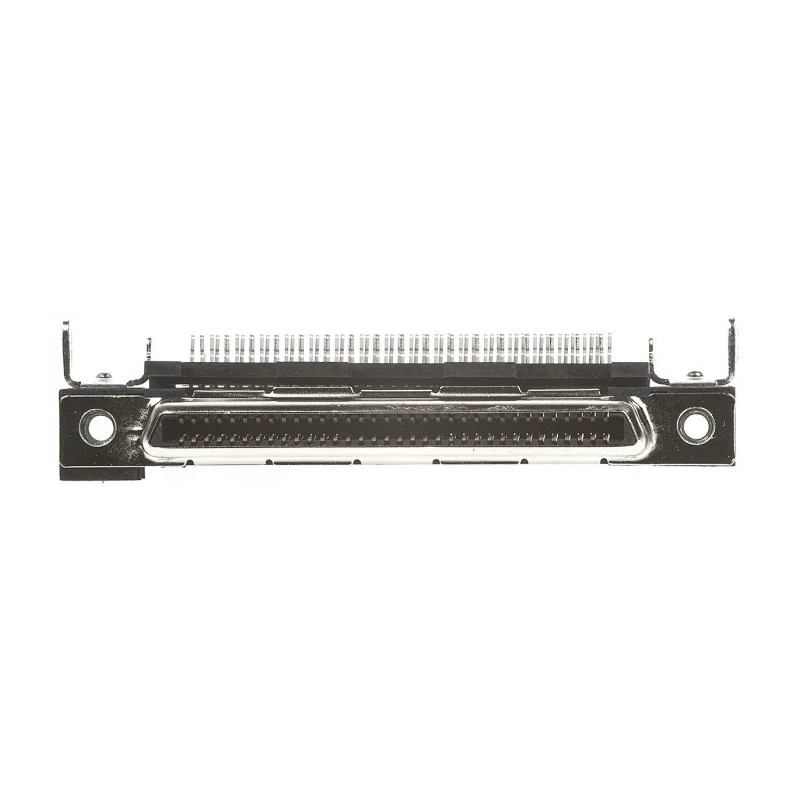

TE Connectivity Champ Series Right Angle Through Hole PCB Socket, 68-Contact, 4 Row, 1.6mm Pitch, 12A, 30V 5796055-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | Champ |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Pitch | 1.6mm |
| Contact Plating | Gold |
| Number of Contacts | 68 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.54mm |
Key Features
- Designed for use in board-to-board connector systems with solder termination.
- Supports a rated current of 12A and operating voltage of 30V.
- Constructed with gold-plated bronze contacts for reliable conductivity.
- Housing made of durable liquid crystal polymer for stability and insulation.
- Operates within temperature range from -40°C to 105°C, suitable for industrial environments.
- Contact pitch is 1.6mm with row pitch of 2.54mm ensuring precise alignment.
- Right angle orientation facilitates PCB layout flexibility.
- Female contact gender with 68 contacts arranged in 4 rows for compact design.
Product Description
TE Connectivity presents the 5796055-1 Champ Series Right Angle Through Hole PCB Socket, a high-performance connector designed for robust board-to-board electrical connections. Featuring 68 female contacts organized in 4 rows with a precise 1.6 mm pitch and 2.54 mm row pitch, this socket is engineered to accommodate a rated current of 12A and voltage of 30V, ensuring dependable operation in demanding electronic assemblies.
The socket utilizes gold-plated bronze contacts for superior conductivity and corrosion resistance, while the housing is crafted from liquid crystal polymer to deliver mechanical strength and excellent electrical insulation. Its right angle through hole mount design provides enhanced flexibility in PCB layouts, enabling efficient use of space and reliable solder termination.
Rated for a wide operating temperature range from -40°C to 105°C, this PCB socket is suitable for diverse industrial, manufacturing, and electronic applications requiring long-term reliability and durability. It complies with standard industrial requirements, though it does not carry additional standards or approvals.
This component is ideal for customers seeking a reliable wire-to-board connector with consistent electrical performance for demanding environments. Its compact 1.6 mm pitch and 4-row configuration support high-density PCB socket solutions.
Designed for wire-to-board connections with solder termination. Gold-plated bronze contacts ensure high conductivity and durability. Right angle orientation suits flexible PCB assembly designs. Liquid crystal polymer housing offers stable insulation and mechanical support.
Wide operating temperature range accommodates harsh industrial conditions. 68 contacts arranged over 4 rows deliver compact, high-density connectivity. Rated at 12A current and 30V voltage for standard electronic applications.
Explore a broad range of PCB connectors and sockets at EnvMart for superior quality and trusted components to enhance your electronic designs and production efficiency.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a rated current of 12A and an operating voltage of 30V.
The contacts are made of gold-plated bronze, which ensures reliable conductivity and corrosion resistance.
It operates within a temperature range from -40°C to 105°C, making it suitable for various industrial environments.
This socket has 68 female contacts arranged in 4 rows, with a contact pitch of 1.6mm and a row pitch of 2.54mm.
It uses solder termination for secure connections in board-to-board applications.
The socket features a right angle orientation, which allows for flexible PCB layout designs.
The housing is made of liquid crystal polymer, providing mechanical strength and electrical insulation.
Yes, its compact 1.6mm pitch and 4-row configuration support high-density PCB socket solutions.
This socket is part of a board-to-board connector system, designed for wire-to-board connections.
The specific dimensions are not provided, but it features a 1.6mm contact pitch and a 2.54mm row pitch.
It is designed for demanding electronic assemblies in industrial, manufacturing, and electronic applications.
The country of origin for this PCB socket is India.
