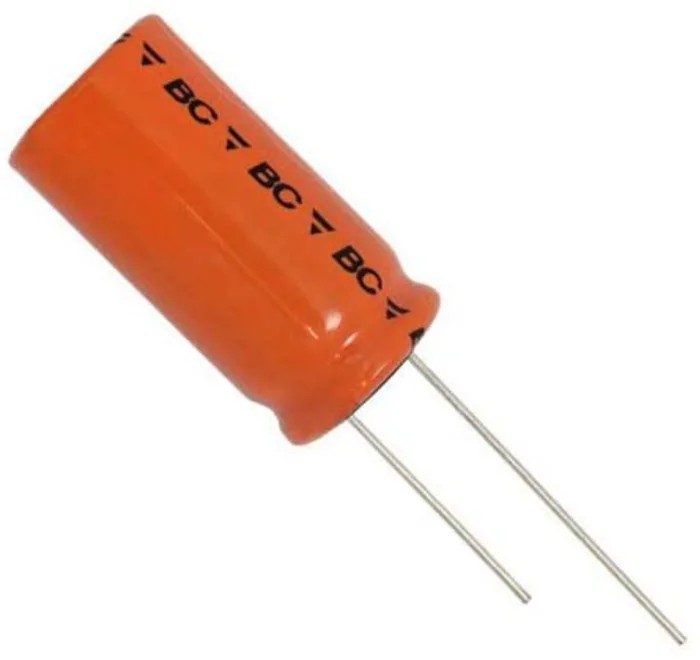

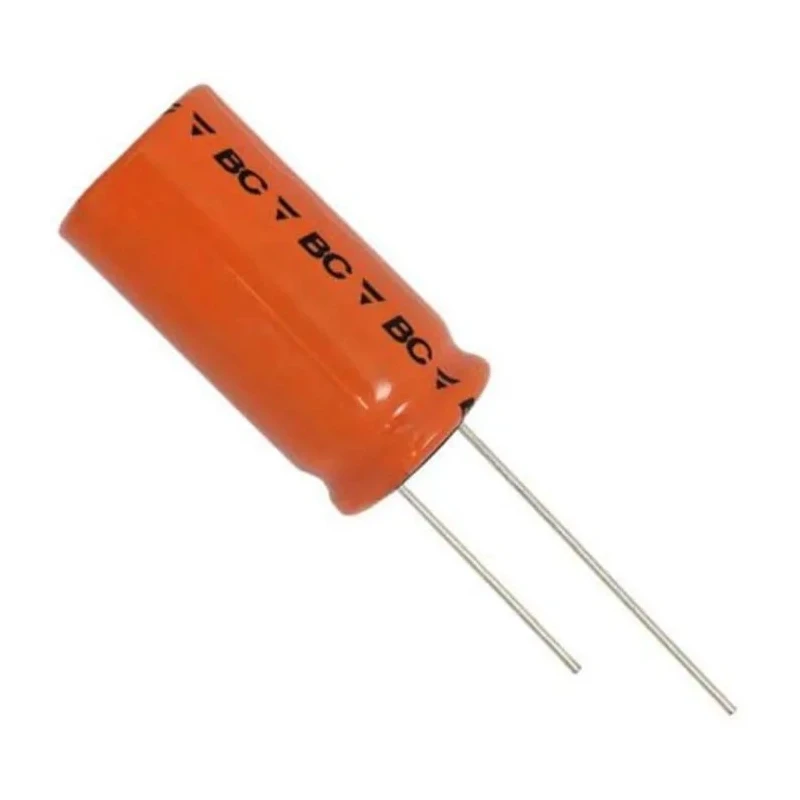

Vishay 25 F Electric Double Layer Supercapacitor 2.7V dc 220 EDLC-P Series Through Hole MAL222091006E3

Free Delivery in India | Lowest Global Shipping Charges

Vishay 25 F Electric Double Layer Supercapacitor 2.7V dc 220 EDLC-P Series Through Hole MAL222091006E3

Name: Vishay 25 F Electric Double Layer Supercapacitor 2.7V dc 220 EDLC-P Series Through Hole MAL222091006E3
Brand: Vishay
SKU: 210048
Price: 4.03 USD
Availability: InStock



Category Supercapacitor Brand Vishay Condition New

Specifications

Country of Origin	Austria
Voltage	2.7V dc
Diameter	16.5mm
Brand	Vishay
Model	MAL222091006E3
Depth	27mm
Packaging	Tray
Mount Type	Through Hole
Series	220 EDLC-P
Maximum Operating Temperature	85°C
Tolerance	-20 to 50 %
Lifetime	1000 h
Capacitance	25F
Minimum Operating Temperature	-40°C
Polarity	Polar
Terminal type	Radial
Leakage Current	8mA
Standards/Approvals	RoHS
Pin Count	2
Lead Pitch	7.5mm
Lead Diameter	0.8mm
Equivalent Series Resistance ESR	22mΩ
Capacitor Family	Electric Double Layer

Key Features

Capacitance of 25 Farads with a tolerance range from -20 to 50 percent.
Lead diameter measures 0.8 mm with radial terminal type for secure connections.
Diameter is 16.5 mm and depth is 27 mm, suitable for compact PCB layouts.
Leakage current is 8 mA with an equivalent series resistance (ESR) of 22 milliohms.
Operational temperature ranges from -40°C minimum to 85°C maximum.
Designed with polar lead polarity and a 7.5 mm lead pitch spacing.
Lifetime rated for 1000 hours at 85°C ensuring reliability under thermal stress.
Packaged in trays for efficient handling and assembly.

Product Description

Vishay MAL222091006E3 is a 25 Farad electric double layer supercapacitor from the 220 EDLC-P series, designed for through hole mounting on printed circuit boards. This high-capacity supercapacitor operates at a rated voltage of 2.7 V DC and offers a capacitance tolerance between -20 to 50 percent, providing flexible energy storage solutions.

The device features a compact form factor with a diameter of 16.5 mm and a depth of 27 mm, making it suitable for applications where board space is limited. Its radial terminal type with 0.8 mm lead diameter and 7.5 mm lead pitch ensures secure and reliable soldering.

With a low equivalent series resistance (ESR) of 22 milliohms and leakage current of 8 mA, this supercapacitor supports efficient charge and discharge cycles. It has a wide operating temperature range from -40°C to 85°C and a lifetime rating of 1000 hours at the maximum temperature, enabling long-term performance in demanding conditions.

The MAL222091006E3 complies with RoHS standards and is maintenance-free, requiring no service during its operational life. Typical applications include burst power support, power backup solutions, energy recovery systems, energy harvesting storage, and as a power source for micro uninterruptible power supplies (UPS) in electronic circuits.

Manufactured in Austria, this Vishay supercapacitor combines reliability with high energy density for industrial, electronic, and power management applications. Rated voltage 2.7 V DC for stable energy storage. Capacitance 25 F with a -20 to 50% tolerance.

Low ESR of 22 milliohms enables efficient power delivery. Wide operating temperature range from -40°C to 85°C. Radial terminal type with 0.8 mm lead diameter and 7.5 mm pitch. Lifetime of 1000 hours at 85°C supports long-term use.

Tray packaging for ease of assembly and handling. RoHS compliant and maintenance-free operation. Applications include burst power support, power backup, and energy harvesting. Manufactured in Austria ensuring quality and standards compliance.
