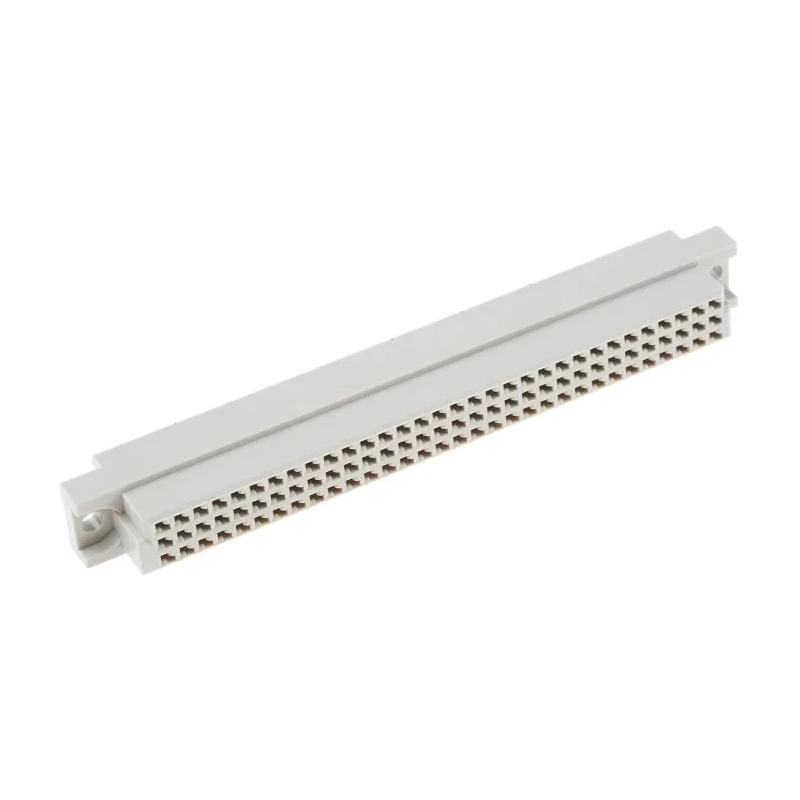

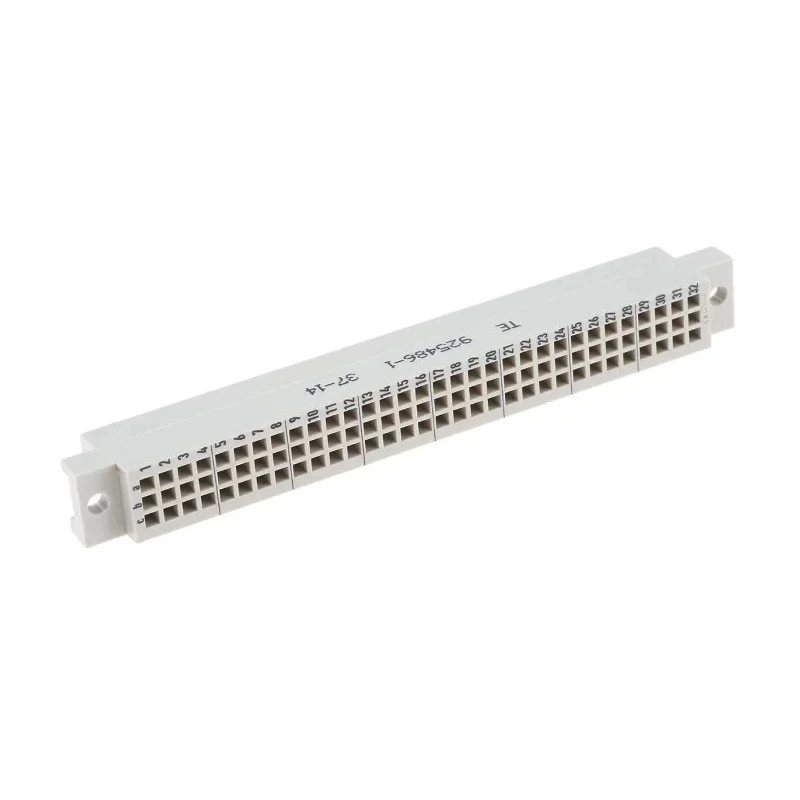

TE Connectivity DIN 41612 Connector 96 Way, 2.54 mm Pitch, Wire-to-Board Crimp, 3 Row Female, Straight Orientation 925486-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity DIN 41612 Connector 96 Way, 2.54 mm Pitch, Wire-to-Board Crimp, 3 Row Female, Straight Orientation 925486-1

Name: TE Connectivity DIN 41612 Connector 96 Way, 2.54 mm Pitch, Wire-to-Board Crimp, 3 Row Female, Straight Orientation 925486-1
Brand: TE Connectivity
SKU: 209615
Price: 10.28 USD
Availability: InStock



Category DIN 41612 Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	TE Connectivity
Orientation	Straight
Current	1.5A
Model	925486-1
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Termination Type	Crimp
Maximum Operating Temperature	105°C
Sub Type	Wire-to-Board
Minimum Operating Temperature	-65°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Tin, Gold, Nickel
Number of Contacts	96
Contact Gender	Female
Connector Gender	Female
Row Loading	A/B/C

Key Features

Provides 96 contact points arranged in 3 rows for complex circuit connections.
Features a 2.54 mm pitch suitable for standard PCB spacing.
Designed for wire-to-board connection with crimp termination for secure contacts.
Operates at a voltage of 250V ac and current rating of 1.5A.
Constructed with phosphor bronze contacts plated with tin, gold, and nickel for durability.
Thermoplastic black housing offers flame retardant properties for safety.
Contact operating temperature ranges from -65°C to 105°C.
Compatible with specific TE Connectivity AMPMODU Mod IV socket housings for modular assembly.

Product Description

TE Connectivity model 925486-1 is a 96 Way DIN 41612 Connector designed for wire-to-board applications, featuring crimp termination and a standard 2.54 mm pitch. This connector is configured with 3 rows of female contacts arranged in a straight orientation, ideal for complex electronic circuit interconnections in industrial and electronic equipment.

The connector’s contacts are made of phosphor bronze with a plating combination of tin, gold, and nickel to ensure reliable conductivity and resistance to corrosion. Its black thermoplastic housing is flame retardant, enhancing safety in use. Rated for 250V ac voltage and 1.5A current, it is suitable for a variety of industrial, manufacturing, electronic assembly, and communication device applications.

Designed for a wide operating temperature range from -65°C to 105°C, this DIN connector supports environments requiring robust performance across varying conditions. It is compatible with TE Connectivity AMPMODU Mod IV wire-applied non-polarized receptacle style socket housings, enabling flexible modular configurations.

Typical industrial usage includes electronics manufacturing, power supplies, control panels, instrumentation, and backplane interconnects. The crimp termination type offers secure and reliable wire connections, facilitating efficient assembly and maintenance.

Provides 96 contact points arranged in 3 rows for complex circuit connections. Features a 2.54 mm pitch suitable for standard PCB spacing. Designed for wire-to-board connection with crimp termination for secure contacts.

Operates at a voltage of 250V ac and current rating of 1.5A. Constructed with phosphor bronze contacts plated with tin, gold, and nickel for durability. Thermoplastic black housing offers flame retardant properties for safety.

Contact operating temperature ranges from -65°C to 105°C. Compatible with specific TE Connectivity AMPMODU Mod IV socket housings for modular assembly. Explore the range of TE Connectivity connectors at EnvMart for reliable and high-quality electronic components optimized for industrial and commercial uses.
