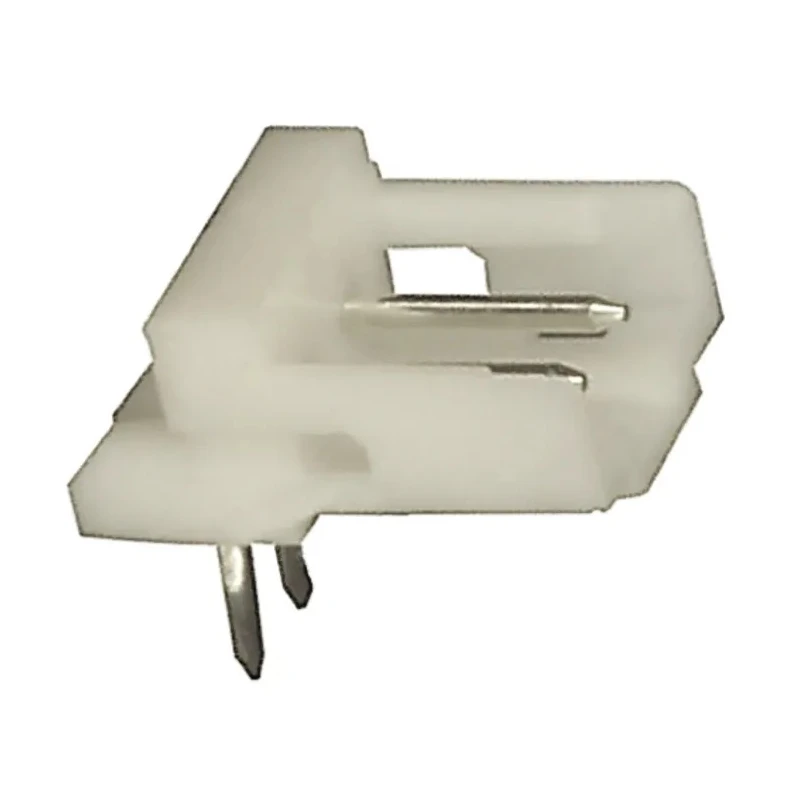

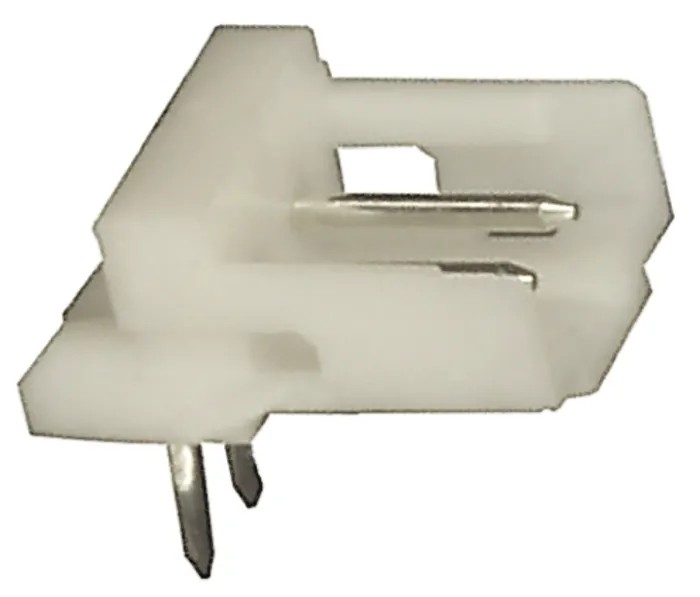

TE Connectivity AMP CT Series Right Angle Through Hole PCB Header 2 Contact 2 mm Pitch 1 Row Shrouded 292253-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP CT Series Right Angle Through Hole PCB Header 2 Contact 2 mm Pitch 1 Row Shrouded 292253-2

Name: TE Connectivity AMP CT Series Right Angle Through Hole PCB Header 2 Contact 2 mm Pitch 1 Row Shrouded 292253-2
Brand: TE Connectivity
SKU: 209570



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	125V
Brand	TE Connectivity
Orientation	Right Angle
Current	2A
Model	292253-2
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	AMP CT
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a miniature design with polarization and mating retention.
Includes kinked solder legs for secure self-retention to the PCB.
Constructed with nylon housing and brass contacts plated with tin.
Rated for 2A current and 125V voltage operation.
Designed for through-hole mounting with right angle orientation.
Supports operating temperatures from -30°C to 105°C.
Shrouded to protect contacts and ensure correct mating.
Suitable for wire-to-board connector systems in varied industrial applications.

Product Description

TE Connectivity 292253-2 AMP CT Series Right Angle Through Hole PCB Header is a precisely engineered electronic component designed for wire-to-board interconnection. This PCB header features 2 contacts arranged in a single row with a compact 2 mm pitch and shrouded housing to prevent incorrect insertion. Its right angle orientation facilitates flexible PCB layout configurations.

The housing is made from durable nylon, ensuring insulation and mechanical stability, while the contacts are manufactured from brass with tin plating for efficient conductivity and corrosion resistance. The kinked solder legs facilitate a secure and reliable solder connection to the PCB, enhancing assembly robustness.

Rated for 2A current and 125V voltage, this header supports operation in temperatures ranging from -30°C to 105°C, making it well-suited for use in various industrial and commercial electronic devices including business equipment, industrial machinery, PCs, printers, C-TV units, audio systems, and air conditioning controls.

The AMP CT 2 mm interconnection system is renowned for its miniature design and proven wire harness capability. The shrouded design and polarization features ensure accurate mating and retention, reducing the risk of connection errors in complex electronics assemblies.

Miniature design with polarization and mating retention features. Kinked solder legs provide secure self-retention on PCB. Nylon housing with brass contacts, tin plated for durability. Rated 2A current, 125V voltage, suitable for various electronic devices.

Right angle, through-hole mount with shrouded connector system. Operating temperature range from -30°C to 105°C. Ideal for wire-to-board and wire harness applications in industrial environments.

This PCB header from TE Connectivity combines reliability, precision, and versatility. It is a preferred choice in electronic component assembly requiring durable and efficient PCB connections. Explore more PCB Headers and electronic components at EnvMart for your industrial and manufacturing needs.
