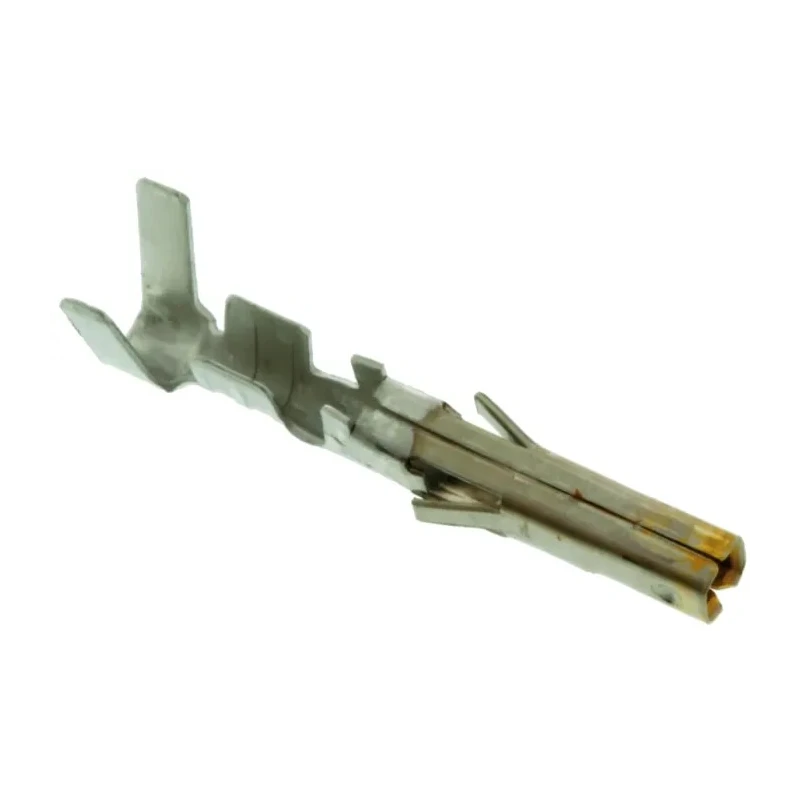

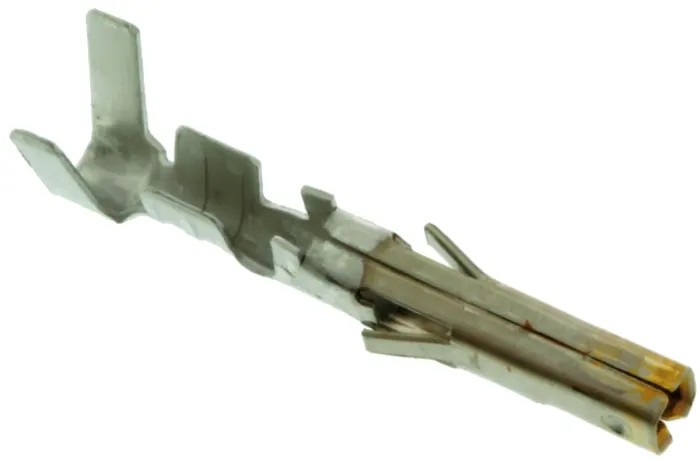

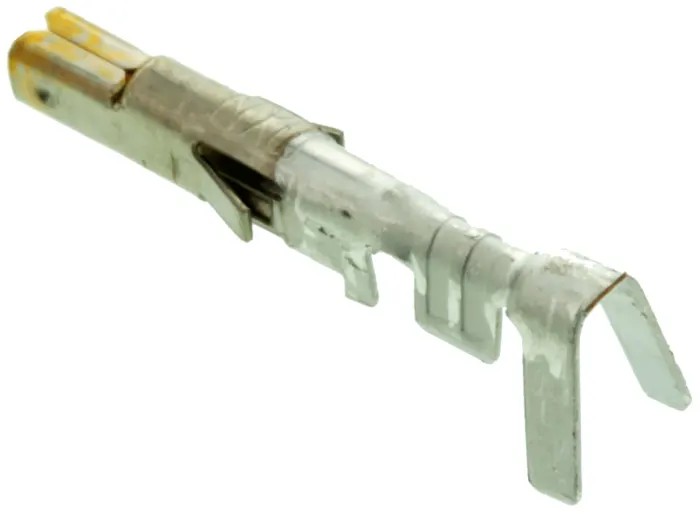

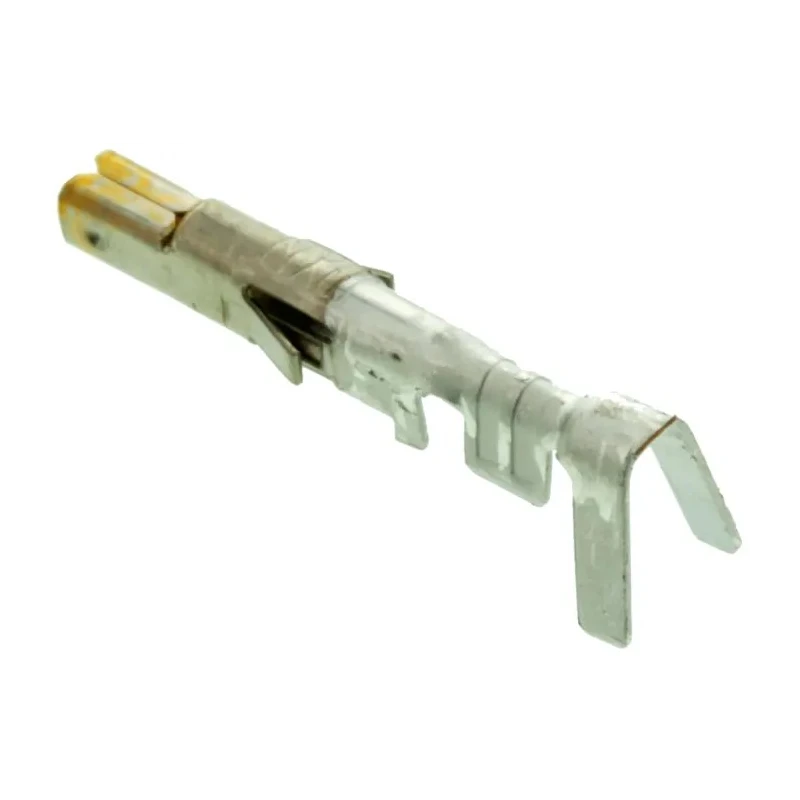

Molex 5556 Series Female Crimp Terminal for Mini-Fit TPA and Mini-Fit BMI Connector Housings, 24 AWG Min Crimp 39-00-0182
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 90119 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG MaxBrand | Molex |
Key Features
- Constructed with gold plated phosphor bronze for excellent conductivity.
- Compatible with Mini-Fit Jr connectors ensuring versatile application.
- Supports a maximum current rating of 9A for reliable performance.
- Crimp termination type guarantees secure and durable electrical connections.
- Operates effectively in temperatures ranging from -40°C to 105°C.
- Maximum contact resistance is limited to 10 milliohms for low electrical loss.
- Designed specifically as a female terminal to fit compatible connector housings.
- Manufactured in the United States assuring quality and compliance.
Product Description
Molex 39-00-0182 is a female crimp terminal from the 5556 series, crafted for use with Mini-Fit TPA and Mini-Fit BMI connector housings, and Mini-Fit Jr connectors. It supports wire sizes from 24 AWG minimum to 18 AWG maximum, ensuring flexibility for various electrical wiring needs.
The terminal features gold plated phosphor bronze contacts that provide optimal conductivity and corrosion resistance, supporting a continuous current rating of 9A. The crimp termination offers a secure, low resistance connection ensuring reliable performance in demanding electrical applications.
Designed to operate reliably in harsh environments, it tolerates operating temperatures between -40°C and +105°C, making it suitable for industrial, commercial, and electronic assembly applications.
The contact resistance is maintained under 10 milliohms to minimize power loss. This female terminal ensures compatibility with several Mini-Fit connector series, including Jr, TPA, and BMI, widely used in power connectors and electronic components manufacturing.
Featured gold plated phosphor bronze contact material ensures excellent electrical performance. Supports 18 to 24 AWG wire sizes for broad application range. Crimp termination technique enables strong mechanical and electrical connections.
Rated up to 9A current handling capacity for robust electrical circuits. Functionality maintained over a wide temperature range from -40°C to 105°C.
Manufactured in the United States to high quality standards, this terminal is ideal for precision electronic component assembly, industrial machinery wiring, and automotive electrical connectors. It provides a dependable solution for connectors requiring secure, low-resistance contacts.
Explore more Molex connector solutions and other Crimp Contacts at EnvMart for your electronic component and electrical assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports a maximum current rating of 9A, ensuring reliable performance in electrical applications.
It is designed to accommodate wire sizes from 24 AWG minimum to 18 AWG maximum, providing flexibility for various wiring needs.
The terminal features gold plated phosphor bronze contacts, which offer excellent conductivity and corrosion resistance.
It operates effectively in temperatures ranging from -40°C to 105°C, making it suitable for various environments.
This model utilizes a crimp termination type, which guarantees secure and durable electrical connections.
It is specifically designed for use with Mini-Fit TPA and Mini-Fit BMI connector housings, as well as Mini-Fit Jr connectors.
The maximum contact resistance is limited to 10 milliohms, which helps minimize electrical loss during operation.
This terminal is manufactured in the United States, assuring compliance with quality standards.
It is ideal for precision electronic component assembly, industrial machinery wiring, and automotive electrical connectors.
This model is a female crimp terminal, designed to fit compatible connector housings.
The gold plating on the contacts enhances conductivity and provides corrosion resistance, contributing to the terminal's overall performance.
Crimp termination provides a strong mechanical and electrical connection, ensuring reliability in demanding applications.
