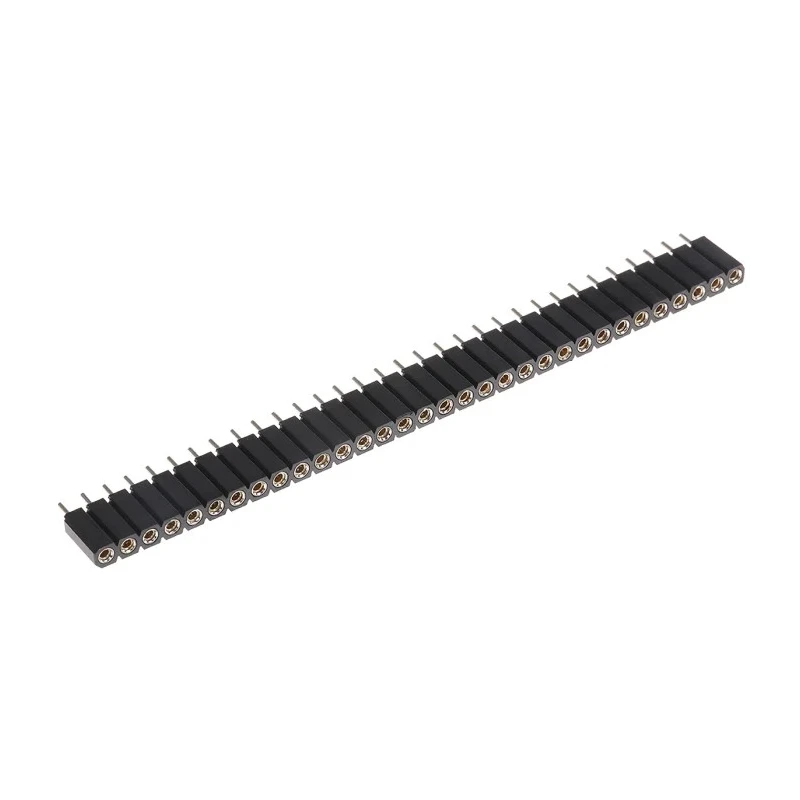

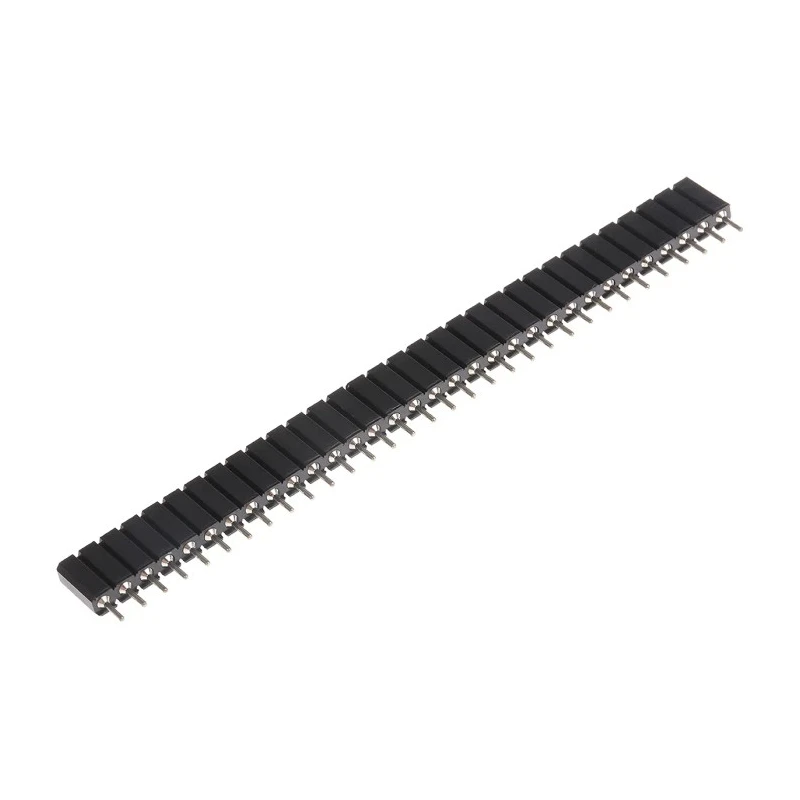

ASSMANN WSW AW 127 Series Straight Through Hole PCB Socket, 32-Contact, 1 Row, 2.54 mm Pitch, 12A Current AW 127-32/Z-HP

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW AW 127 Series Straight Through Hole PCB Socket, 32-Contact, 1 Row, 2.54 mm Pitch, 12A Current AW 127-32/Z-HP

Name: ASSMANN WSW AW 127 Series Straight Through Hole PCB Socket, 32-Contact, 1 Row, 2.54 mm Pitch, 12A Current AW 127-32/Z-HP
Brand: ASSMANN WSW
SKU: 208348
Price: 9.24 USD
Availability: InStock



Category PCB Socket Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	ASSMANN WSW
Orientation	Straight
Current	12A
Model	AW 127-32/Z-HP
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Bronze
Series	AW 127
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	UL 94 V-0
Contact Plating	Tin
Number of Contacts	32
Contact Gender	Female

Key Features

Features 32 female contacts arranged in a single row for compact PCB design.
Employs a 2.54 mm pitch for standardized interfacing with other components.
Rated for 12A current and supports up to 100V operating voltage for various applications.
Constructed with a polybutylene terephthalate housing material for durability and thermal resistance.
Suitable for through-hole mounting with solder termination ensuring secure connectivity.
Operates reliably within temperature limits from -40°C to 105°C.
Contacts made of bronze material with tin plating to enhance conductivity and prevent corrosion.
Complies with UL 94 V-0 flammability standard assuring safety and quality.

Product Description

ASSMANN WSW AW 127-32/Z-HP is a high-quality straight through hole PCB socket, designed for board-to-board applications. Featuring 32 female contacts in a single row with a 2.54 mm pitch, it ensures precise alignment and reliable electrical connection. The socket is rated for a maximum current of 12A and a voltage of 100V, making it suitable for a wide range of electronic devices.

The housing is constructed from polybutylene terephthalate, which provides excellent mechanical strength and high temperature resistance with an operating temperature range from -40°C to 105°C. The bronze contact material plated with tin guarantees good conductivity and corrosion resistance, essential for maintaining signal integrity over time.

This product supports through-hole mounting with solder termination, offering robust mechanical and electrical connections suited for demanding industrial environments. It also meets the UL 94 V-0 flammability standard, ensuring enhanced safety compliance.

Widely used in electronics manufacturing, communication systems, and power connector assemblies, the AW 127-32/Z-HP series socket improves production efficiency and long-term reliability of PCB assemblies.

Features 32 female contacts arranged in a single row for compact PCB design. Employs a 2.54 mm pitch for standardized interfacing with other components. Rated for 12A current and supports up to 100V operating voltage for various applications.

Constructed with a polybutylene terephthalate housing material for durability and thermal resistance. Suitable for through-hole mounting with solder termination ensuring secure connectivity. Operates reliably within temperature limits from -40°C to 105°C.

Contacts made of bronze material with tin plating to enhance conductivity and prevent corrosion. Complies with UL 94 V-0 flammability standard assuring safety and quality. Ideal for industrial electronics, communication equipment, and power connectors.
