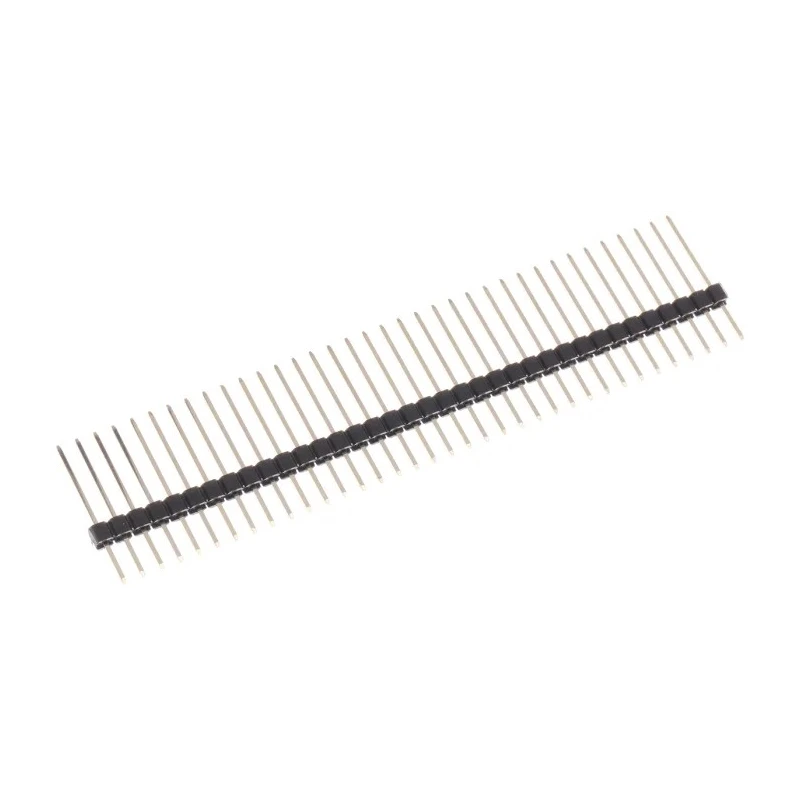

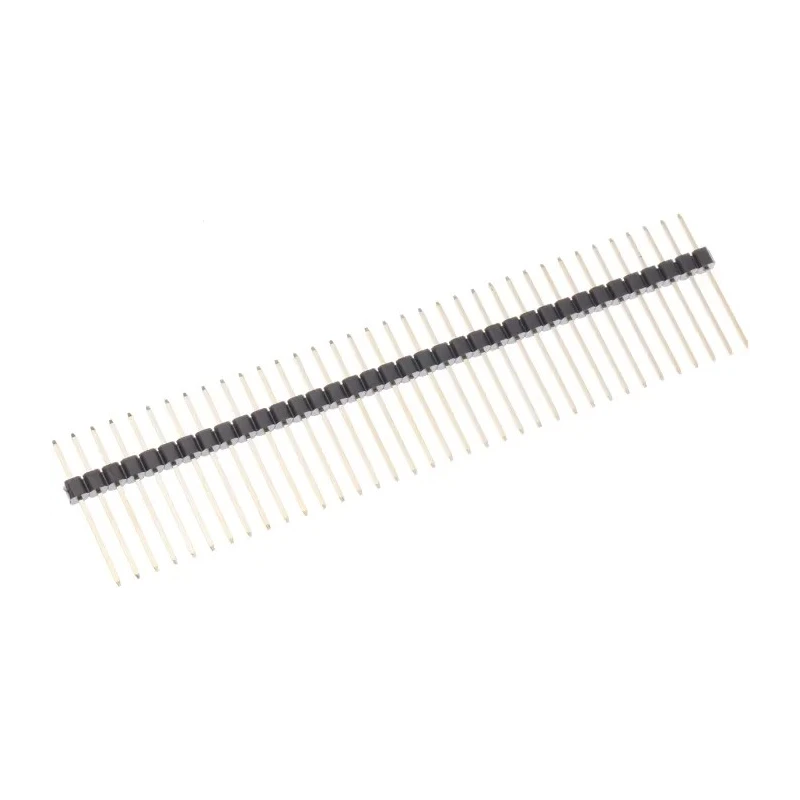

ASSMANN WSW AW140 Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AW140 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AW140 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 5.96mm |
| Mating Pin Length | 12.6mm |
Key Features
- Constructed for reliable board-to-board connection with 3A current rating.
- Housing material is durable Polybutylene Terephthalate for enhanced stability.
- Contact material is brass with gold plating for optimum conductivity and corrosion resistance.
- Supports operating temperatures from -40°C to 105°C.
- Features a 5.96 mm tail pin length and 12.6 mm mating pin length for secure solder connection.
- Designed for through hole mounting type with straight orientation.
- Male contact gender with unshrouded style facilitates easy insertion.
- Manufactured in China under the AW140 series from ASSMANN WSW brand.
Product Description
ASSMANN WSW AW140-EG-G36E Straight Through Hole Pin Header is engineered for precise and reliable electronic board-to-board connections in industrial and commercial applications. Featuring 36 contacts spaced at a 2.54 mm pitch, this single-row, unshrouded header is optimized for through hole mounting, ensuring secure fitment and soldering integrity.
The connector housing is made from Polybutylene Terephthalate, providing excellent mechanical strength and heat resistance, enabling operation within a wide temperature range from -40°C to 105°C. The contacts are crafted from brass and plated with gold to guarantee high conductivity and long-term corrosion resistance.
This pin header supports a current rating of 3 amperes with a voltage rating up to 250 volts, making it suitable for diverse electronic components and assemblies requiring robust electrical performance. The straight orientation and male contact gender facilitate straightforward mating with compatible sockets or connectors.
Dimensions include a tail pin length of 5.96 mm and a mating pin length of 12.6 mm, tailored for efficient soldering processes in PCB assembly lines. The unshrouded design enables easy access and visibility for inspection and testing during manufacturing.
Reliable 3A current and 250V voltage rating for versatile applications. High-quality Polybutylene Terephthalate housing withstanding industrial conditions. Gold-plated brass contacts for superior electrical performance and durability.
Wide temperature range support from -40°C to 105°C. Single row pin header with 36 contacts at 2.54 mm pitch. Straight orientation and through hole mount for standard PCB integration.
This pin header is suitable for electronic manufacturing, industrial machinery, communication devices, control panels, and other applications requiring reliable PCB connectors. Trusted for precision and quality, ASSMANN WSW components are backed by professional standards and designed to improve assembly efficiency.
Discover more products in the PCB Pin Header category at EnvMart to fulfill your electronic component needs with trusted brands and technical excellence.
