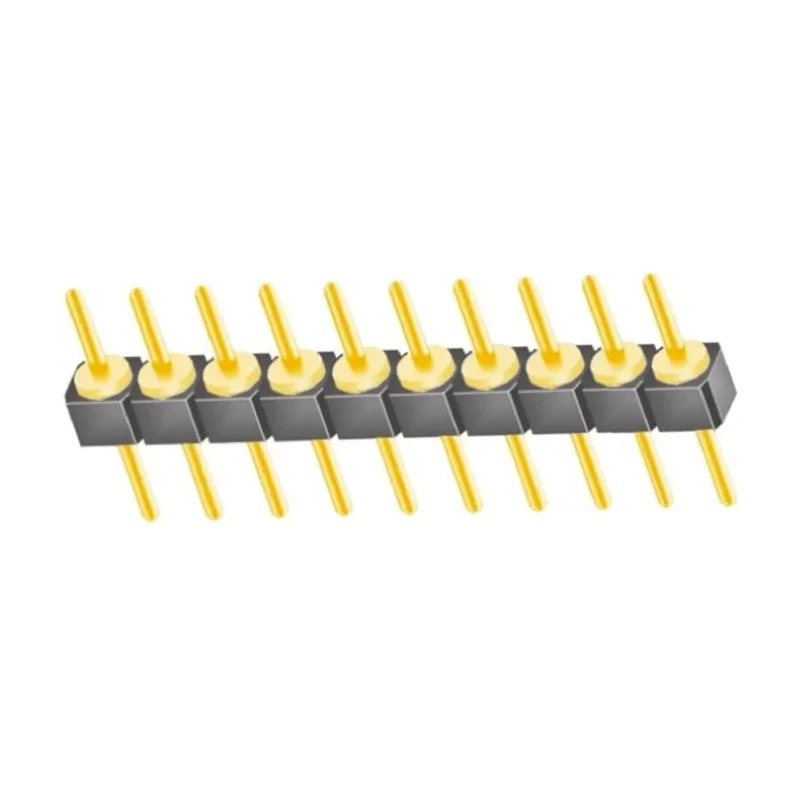

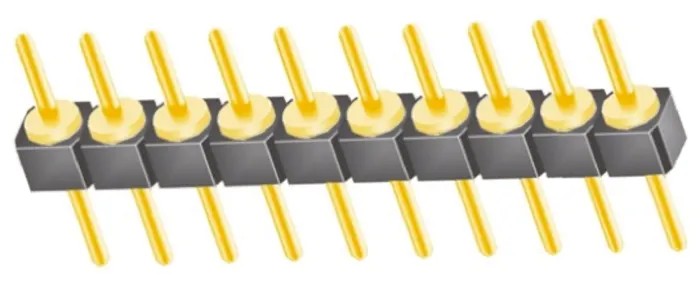

Samtec TS Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TS-110-G-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | TS-110-G-A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.96mm |
| Mating Pin Length | 4.22mm |
Key Features
- Constructed with glass filled polyester housing for durability and stability.
- Contacts made of phosphor bronze with 0.51μm gold plating for excellent conductivity and corrosion resistance.
- Rated for 1A current with solder termination type and male contact gender.
- Supports operating temperatures from -55°C to 125°C for various industrial environments.
- Mount type is through hole with straight orientation for reliable PCB connection.
- Features a tail pin length of 3.96mm and mating pin length of 4.22mm.
- Designed for board-to-board connector system with 2.54 mm row pitch.
- Unshrouded contacts enable easy mating with compatible socket strips.
Product Description
Samtec TS-110-G-A is a high-quality straight through hole pin header from the TS Series, designed for board-to-board PCB connector applications. It offers 10 precision screw machined contacts arranged in a single row, with a pitch of 2.54 mm and unshrouded design for flexibility in mating options.
The housing is made from black glass filled polyester, providing excellent mechanical strength and heat resistance. The contacts are manufactured from phosphor bronze and plated with 0.51 μm of gold to ensure superior electrical performance and long service life under demanding conditions.
This connector supports a current rating of 1A and operates reliably within a temperature range of -55°C to 125°C, making it suitable for harsh industrial, manufacturing, and electronic assembly environments. The solder termination and through hole mount type ensure firm fixation on PCB boards.
The tail pin length of 3.96 mm and mating pin length of 4.22 mm provide secure connections with matching socket strips such as the Samtec SS and SL series. Its straight orientation and 1-row configuration make it ideal for compact PCB layouts.
Samtec TS Series pin headers are widely used in industrial, electronics manufacturing, laboratory equipment, and commercial PCB assembly applications for creating reliable electrical interconnections.
Constructed housing with glass filled polyester ensures durability. Phosphor bronze contacts with gold plating reduce corrosion and increase conductivity. Wide temperature range supports industrial environments. Solder termination with through hole mounting for secure PCB connection.
10 contacts in a single row at 2.54 mm pitch for precise board-to-board linking. Compatible with SS and SL series socket strips for flexible configurations. Choose Samtec TS-110-G-A for reliable and high-performance PCB pin header solutions. Browse our Electronics Components category for more precision connectors and related products.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1A, making it suitable for various applications requiring moderate power.
The contacts in the TS-110-G-A pin header are arranged with a pitch of 2.54 mm, which is standard for many PCB applications.
The housing is made from glass filled polyester, while the contacts are made of phosphor bronze with 0.51 μm gold plating for improved conductivity and corrosion resistance.
This model operates reliably within a temperature range of -55°C to 125°C, suitable for harsh industrial environments.
It features 10 contacts arranged in a single row, designed for board-to-board connections.
The tail pin length of the TS-110-G-A is 3.96 mm, which helps ensure a secure connection to the PCB.
The TS-110-G-A uses solder termination, which provides a firm fixation on PCB boards during assembly.
This pin header is designed with unshrouded contacts, allowing for easier mating with compatible socket strips.
The orientation of this model is straight, which is common for through hole mounting applications.
It is designed for a board-to-board connector system, making it suitable for various electronic assembly applications.
The mating pin length is 4.22 mm, ensuring compatibility with matching socket strips.
The country of origin for this pin header is India, reflecting its manufacturing location.
