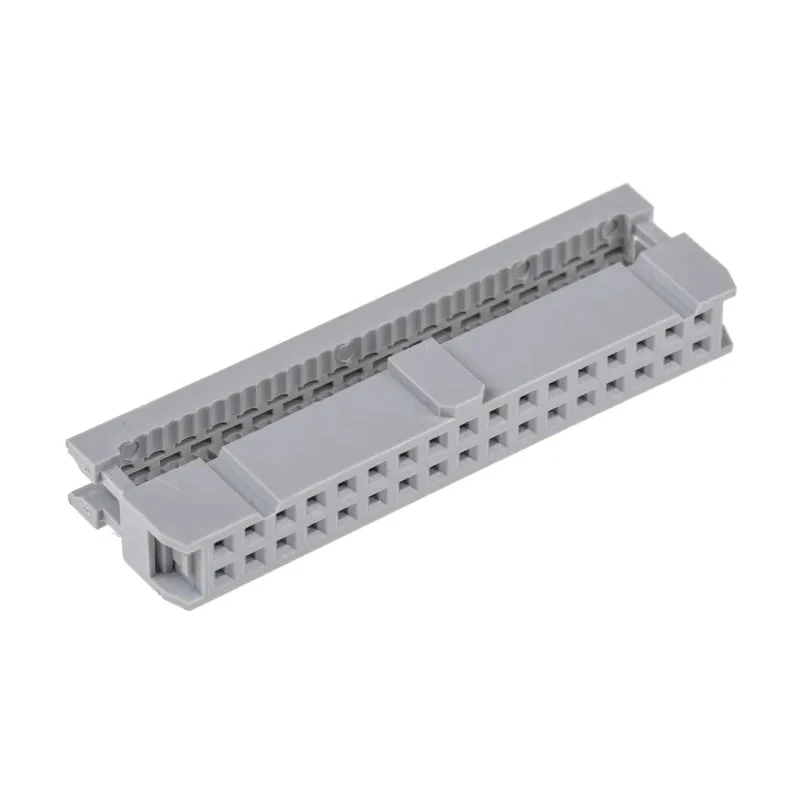

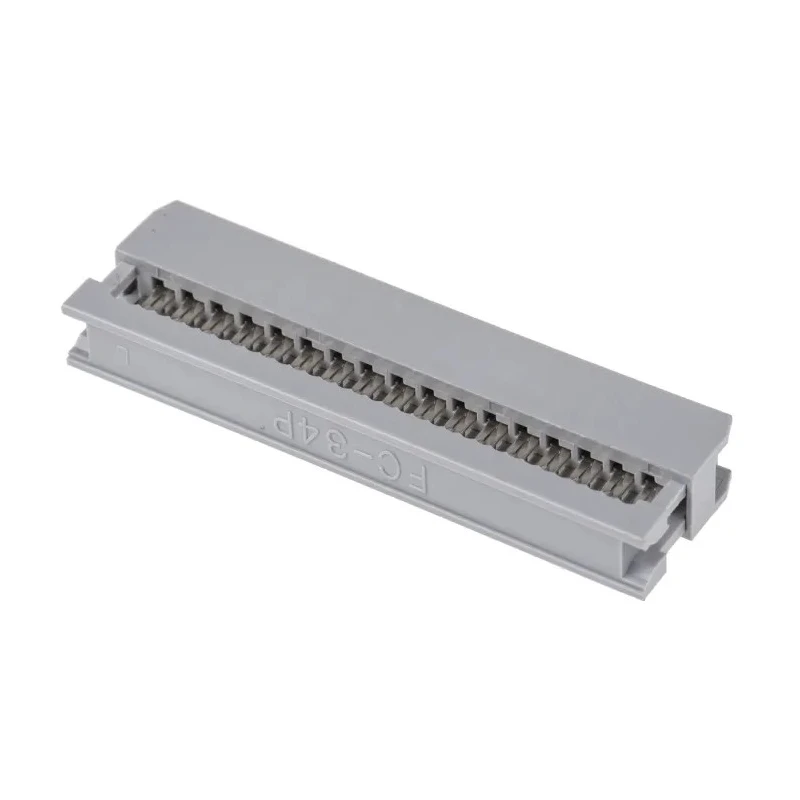

ASSMANN WSW 34-Way IDC Connector Female for Cable, 2 Row, 2.54mm Pitch, Gold over Nickel AWP 34-7240-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 1A |
| Model | AWP 34-7240-T |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AWP |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 34 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| 3M 34-Way Cable & Connector Female for Cable, 2 RowBrand | 3M |
Key Features
- Supports 34 contacts arranged in 2 rows for versatile cable interfacing.
- Current rating of 1A and voltage rating of 250V AC ensures safe operation.
- Gold over Nickel plating on contacts provides corrosion resistance and reliable signal integrity.
- Constructed with brass contacts and polybutylene terephthalate housing for durability.
- Designed with right angle orientation and cable mount for easy PCB integration.
- Operating temperature range from -55°C to 105°C suits various environmental conditions.
- Termination type IDC allows quick and efficient ribbon cable connections.
- Connector gender is female, ideal for cable socket applications.
Product Description
ASSMANN WSW AWP 34-7240-T 34-Way IDC Connector Female for Cable, 2 Row is a high-quality shrouded IDC connector designed for ribbon cable applications. It features 34 contacts arranged in two rows with a 2.54mm pitch, facilitating reliable and compact electrical connections in electronic assemblies.
The connector includes gold over nickel plated brass contacts, ensuring excellent corrosion resistance and enhanced electrical conductivity, making it suitable for sensitive electronic signals. Its polybutylene terephthalate (PBT) housing offers robust mechanical protection with a UL94V-0 flammability rating, meeting stringent safety requirements.
Rated to operate safely from -55°C to 105°C, this connector manages currents up to 1A and voltages up to 250V AC, supporting diverse industrial and commercial electronic applications. The right angle cable mount design simplifies integration into printed circuit boards and ribbon cable assemblies with IDC termination technology for rapid and secure connections.
Widely used in electronic component manufacturing, industrial control equipment, and communications devices, this connector enhances assembly efficiency and reliability in demanding environments. The female contact gender is suitable for interfacing with male connectors and cable sockets effectively.
34 contacts arranged in two rows with 2.54mm pitch. Gold over nickel plated brass contacts for durability and conductivity. PBT housing with UL94V-0 rating for safety and robustness. Rated 1A current and 250V AC voltage for versatile applications.
Termination type: IDC for fast and reliable cable connection. Operating temperature range: -55°C to 105°C. Right angle cable mount orientation for PCB compatibility. Manufactured in China under AWP series specifications.
This ASSMANN WSW IDC Connector is ideal for laboratory, industrial manufacturing, electronic assemblies, and communications applications requiring durable and precise cable connections. Discover more connectors and accessories in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1A and a voltage rating of 250V AC, ensuring safe operation in various applications.
It operates within a temperature range of -55°C to 105°C, making it suitable for diverse environmental conditions.
The connector features 34 contacts arranged in 2 rows, with a pitch of 2.54mm.
It is constructed with brass contacts and a polybutylene terephthalate (PBT) housing, providing mechanical protection and durability.
This model utilizes IDC (Insulation Displacement Connector) termination for quick and efficient ribbon cable connections.
It features a right angle orientation, which facilitates easy integration into printed circuit boards.
The contacts are plated with gold over nickel, which provides corrosion resistance and reliable signal integrity.
Yes, it is widely used in electronic component manufacturing, industrial control equipment, and communications devices.
The connector gender is female, making it suitable for interfacing with male connectors and cable sockets.
The polybutylene terephthalate housing has a UL94V-0 flammability rating, meeting stringent safety requirements.
This connector is manufactured in China under AWP series specifications.
The right angle cable mount design simplifies integration into printed circuit boards and ribbon cable assemblies, enhancing assembly efficiency.
