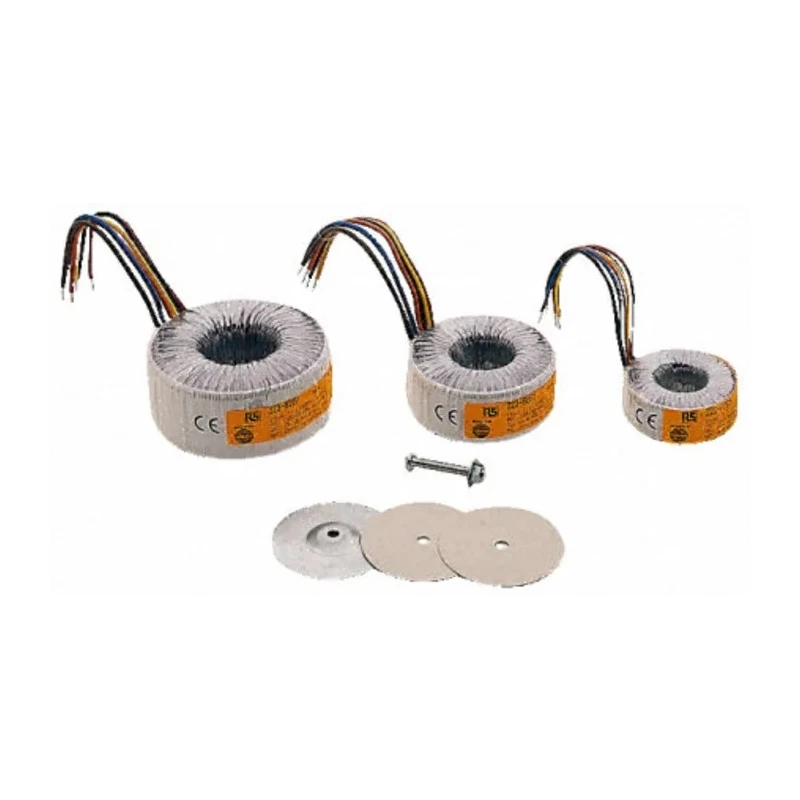

Nuvotem Talema 230 V ac 2 x 55 V ac Toroidal Transformer 2 Output 300 VA 2.3 kg Dual Secondary Winding 0300P1-2-055

Nuvotem Talema 0300P1-2-055 Toroidal Transformer features a single 230 V ac primary winding and dual secondary windings rated at 2 x 55 V ac, delivering 300 VA power capacity. This transformer weighs 2.3 kg and has a compact form with diameter of 115 mm and height of 58 mm.

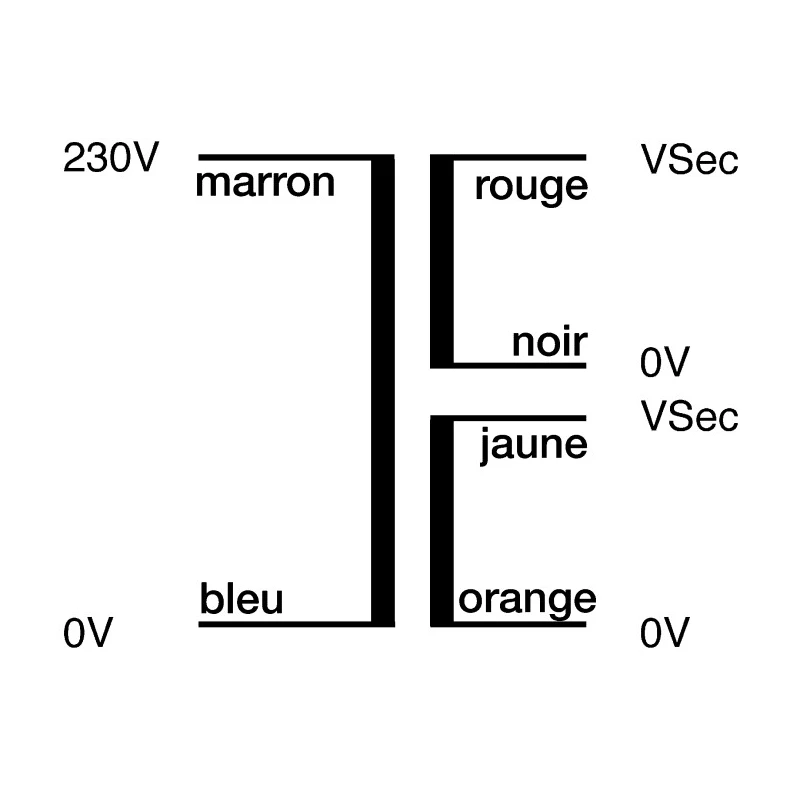

It is constructed with dual secondary windings that offer flexibility for series or parallel connections or independent operation. The transformer operates efficiently with extremely low iron losses and minimal hum, ensured by its toroidal core design.

The device supports an operating frequency range of 50 Hz to 450 Hz and can function safely within temperatures ranging from 0°C to a maximum of 180°C. Its termination is provided by copper conductor wires for secure connection.

Manufactured to comply with internationally recognized standards such as EN61558 (with DEKRA certification 161054.0), EN60065, UL506, BS415, and VDE0550, this product undergoes 100% electrical and flash testing to ensure quality and safety. The open style transformer comes complete with a full mounting kit for installation convenience.

This Toroidal Transformer is ideal for use in industrial, laboratory, electronic component power supply, and commercial applications where low noise, reliability, and compact construction are critical.

Features dual secondary windings allowing series or parallel connection. Designed for low noise and minimal magnetic radiation. Operates within 0°C to 180°C temperature range. 100% electrical and flash tested for reliability and safety.

Complies with international standards including EN61558 and EN60065. Includes full mounting kit for easy installation. Open style design with copper conductor termination wires. Suitable frequency range between 50 Hz and 450 Hz.
