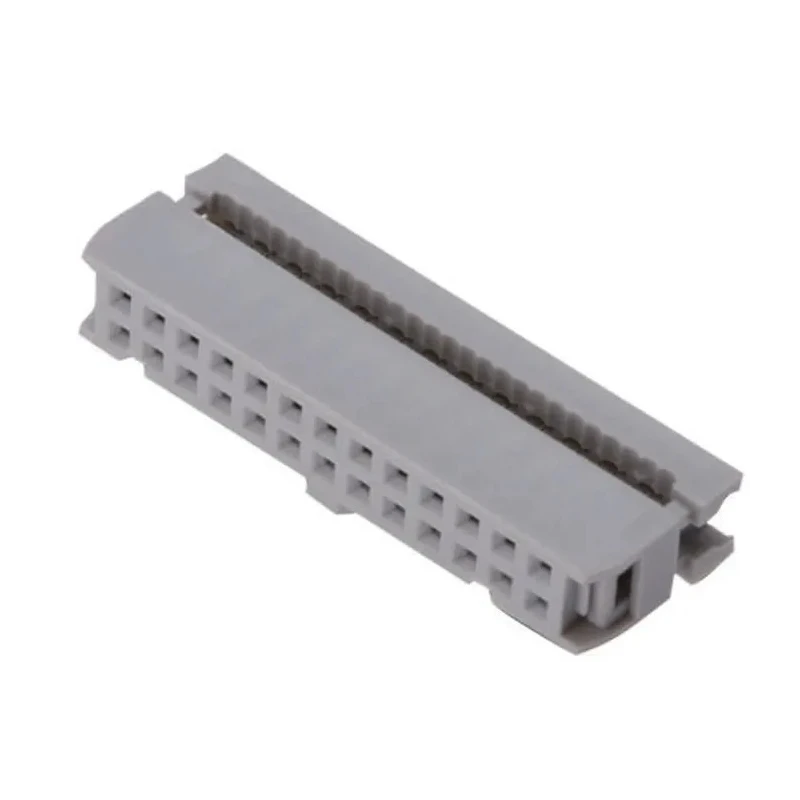

ASSMANN WSW 60-Way 2-Row Female IDC Connector for Cable 250V AC, 1A, Gold over Nickel AWP 60-7240-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 1A |
| Model | AWP 60-7240-T |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AWP |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 60 contacts arranged in 2 rows with a 2.54mm pitch.
- Shrouded female connector designed for right angle cable mounting.
- Gold over nickel plated brass contacts ensure reliable conductivity and corrosion resistance.
- Polybutylene Terephthalate (PBT) housing rated UL94V-0 for flame retardance.
- Operates safely between -55°C and 105°C temperature range.
- Termination type is Insulation Displacement Contact (IDC) for efficient cable assembly.
- Suitable for industrial and electronic component interconnections.
- Manufactured in China with high quality standards.
Product Description
ASSMANN WSW AWP 60-7240-T is a high-quality 60-way female IDC connector designed for use with ribbon cables in various electronic and industrial applications. The connector features two rows of contacts with a 2.54mm pitch, ideal for precise signal transmission in dense cable assemblies.
The connector's female contacts are made of brass and plated with gold over nickel to provide excellent conductivity and resistance to corrosion. The housing is constructed from Polybutylene Terephthalate (PBT), a flame-retardant material rated UL94V-0, ensuring durability and safety under operational conditions.
Supporting a current rating of 1A and voltage of 250V AC, this IDC connector operates reliably in temperature ranges from -55°C minimum to 105°C maximum, making it suitable for harsh environments.
The right-angle orientation and shrouded design facilitate easier cable mounting and protection against accidental contact. The insulation displacement contact termination type allows quick and reliable cable connections without the need for soldering.
This connector is widely used in industrial automation, electronic manufacturing, telecommunications, and other fields requiring space-efficient cable connections with durable, high-performance connectors.
60 contacts in 2 rows with 2.54mm pitch. Gold over nickel plating on brass contacts. PBT UL94V-0 flame retardant housing. Right angle cable mounting with shrouded connector. Current rating 1A, voltage rating 250V AC. Operating temperature range -55°C to 105°C.
IDC termination for easy cable assembly. Manufactured in China with rigorous quality control. Explore a wide range of IDC Connectors and related electronic components in EnvMart to meet your industrial and laboratory connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1A and a voltage rating of 250V AC.
It operates safely within a temperature range of -55°C to 105°C.
The connector features 60 contacts arranged in 2 rows.
The contacts are arranged with a pitch of 2.54mm.
The housing is made from Polybutylene Terephthalate (PBT), which is rated UL94V-0 for flame retardance.
It utilizes Insulation Displacement Contact (IDC) termination for efficient cable assembly.
This model features a right-angle orientation for cable mounting.
The contacts are made of brass and are plated with gold over nickel to ensure reliable conductivity.
Yes, it is suitable for industrial and electronic component interconnections, including applications in automation and telecommunications.
The connector has a shrouded design which helps protect against accidental contact.
It is manufactured in China with high quality standards.
This connector belongs to the AWP series.
