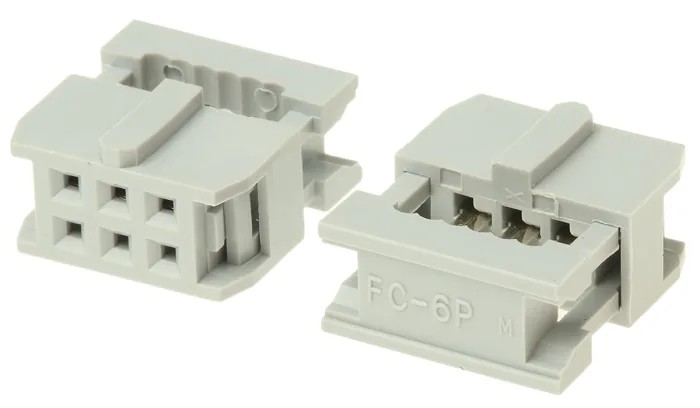

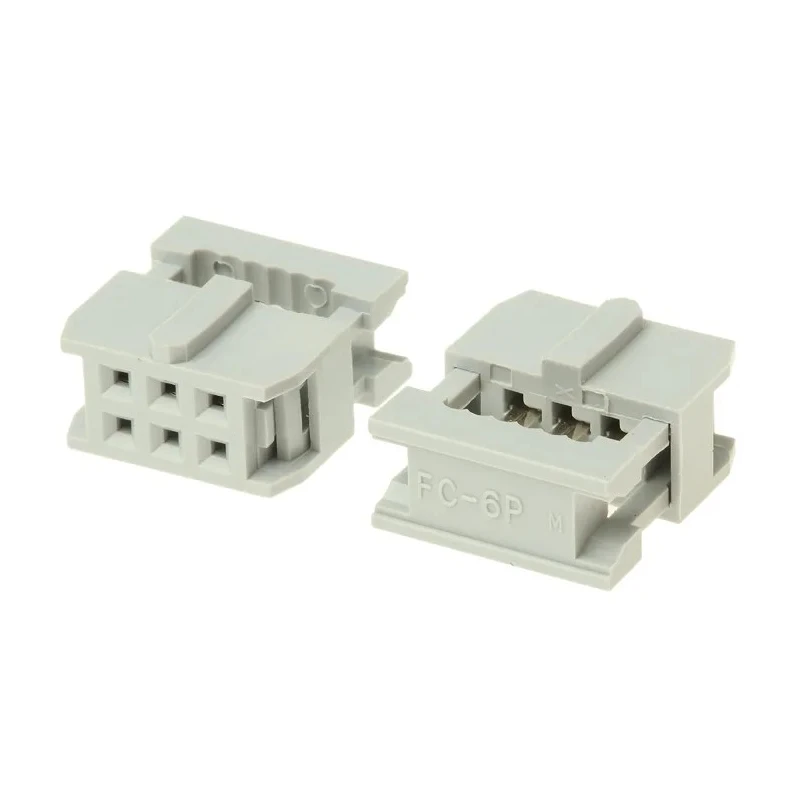

ASSMANN WSW 6-Way IDC Connector Female for Cable, 2 Row, 3A Current, 250V AC, Gold Nickel Plating AWP 06-7240-T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 6-Way IDC Connector Female for Cable, 2 Row, 3A Current, 250V AC, Gold Nickel Plating AWP 06-7240-T

Name: ASSMANN WSW 6-Way IDC Connector Female for Cable, 2 Row, 3A Current, 250V AC, Gold Nickel Plating AWP 06-7240-T
Brand: ASSMANN WSW
SKU: 208282
Price: 0.65 USD
Availability: InStock



Category IDC Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Brand	ASSMANN WSW
Orientation	Right Angle
Current	3A
Model	AWP 06-7240-T
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AWP
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold, Nickel
Number of Contacts	6
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Features a shrouded design for cable mounting applications.
Connectors are double row with a 2.54mm pitch for precise compatibility.
Gold and nickel plating on contacts ensures reliable conductivity and corrosion resistance.
Constructed with brass contact material and a durable polybutylene terephthalate housing.
Meets operating temperature range from -40°C to 105°C.
Right angle female connector orientation for flexible cable arrangements.
Designed for industrial and electronic component applications requiring IDC termination.

Product Description

ASSMANN WSW AWP 06-7240-T is a 6-way IDC connector designed for female cable connections in electrical and electronic applications. It supports a current rating of 3A and voltage rating of 250V AC, suitable for robust industrial use.

This connector features a shrouded cable mount type with a double-row configuration and a 2.54 mm pitch, ensuring precise and reliable connections in PCB and wire housing assemblies. The right angle female orientation facilitates flexible cable routing in compact spaces.

The contact plating consists of gold and nickel, providing excellent conductivity and corrosion resistance. Contact materials are brass, combined with a polybutylene terephthalate housing rated UL94V-0 flame retardant for enhanced safety and durability.

Operating temperature ranges from -40°C minimum to 105°C maximum, allowing usage in a variety of demanding environments. These connectors are ideal for electronics manufacturing, automation equipment, communication devices, and general industrial machinery requiring reliable IDC connections.

Shrouded cable mounting design for secure connections. Double row, 6-contact arrangement with 2.54 mm pitch. Gold and nickel plating for superior electrical performance. Durable brass contacts within PBT housing. Wide operating temperature tolerance from -40°C to 105°C.

Right angle female connector suitable for various cable layouts. Applicable in electronic component assemblies and industrial automation. Explore more IDC Connectors and industrial electronic components at EnvMart for trusted quality and technical support.
