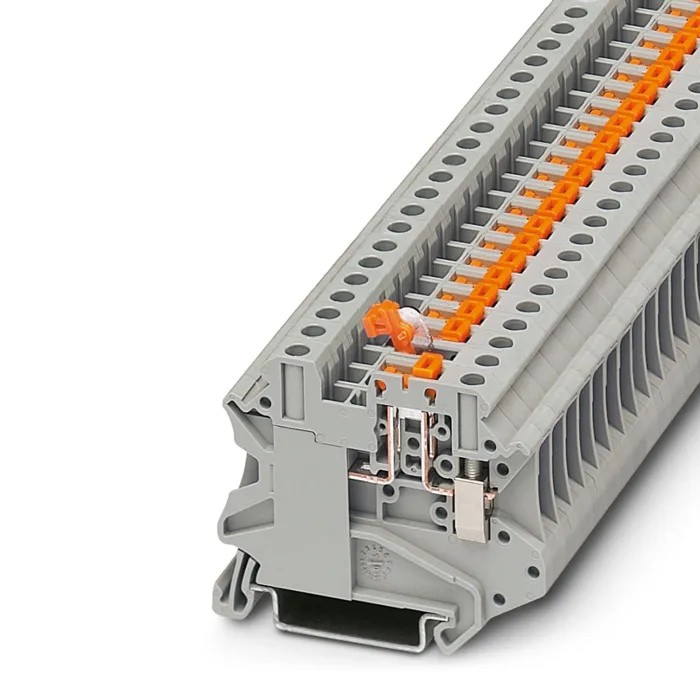

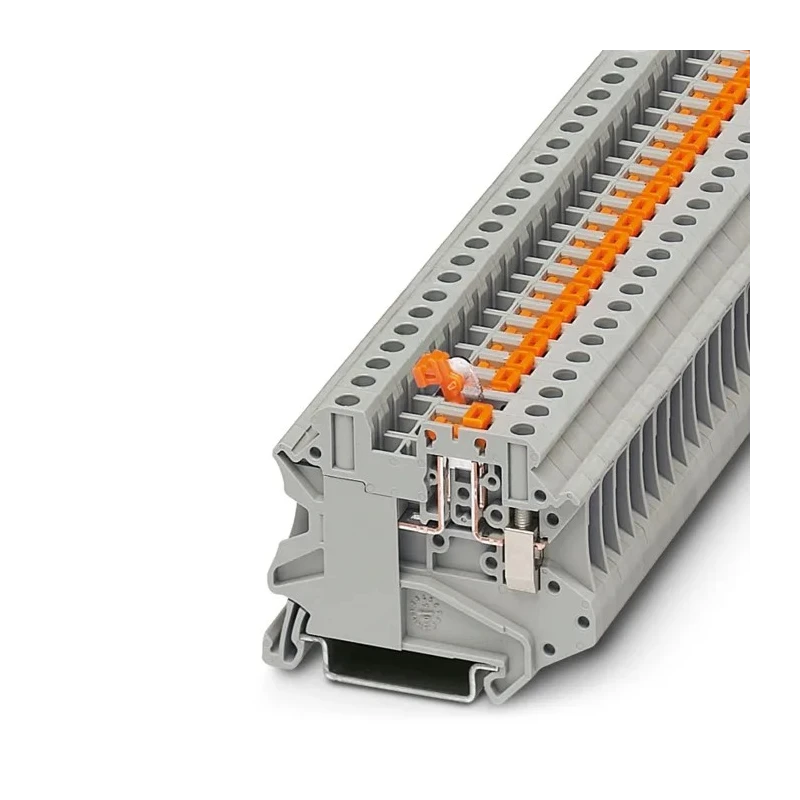

Phoenix Contact UT 4-MT-EX Series Knife Disconnect Terminal Block Grey 0.14mm² to 6 mm², 1-Level, Screw Termination 3046141

Name: Phoenix Contact UT 4-MT-EX Series Knife Disconnect Terminal Block Grey 0.14mm² to 6 mm², 1-Level, Screw Termination 3046141
Brand: PHOENIX CONTACT
SKU: 134746



Category DIN Rail Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	500V
Brand	Phoenix Contact
Colour	Grey
Model	3046141
Series	UT 4-MT-EX
Termination Type	Screw
Number of Levels	1
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	10AWG
Cable CSA	0.14, 6mm²
Terminal Block Current	20A
Knife disconnect terminal block, nom. voltage	500 V, nominal current: 20 A, connection method: Screw connection, cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, length: 57.8 mm, width: 6.2 mm, color: gray, mounting: NS 35/7,5, NS 35/15

Key Features

This knife disconnect terminal block features a compact grey design suitable for DIN rail mounting.
Supports 1 level with screw-type termination for secure and reliable connections.
Compatible with wire sizes from AWG 26 up to AWG 10.
Compact size with a length of 57.8 mm and width of 6.2 mm facilitates space saving installations.
Mounts on NS 35/7.5 and NS 35/15 rails for versatile industrial applications.
Offers a high current carrying capacity of 20 A suitable for process technology.
Equipped with a double bridge shaft for individual potential distribution and supply.
Designed and manufactured in Poland ensuring high quality standards.

Product Description

Phoenix Contact 3046141 UT 4-MT-EX Series Knife Disconnect Terminal Block is engineered for industrial and process technology applications requiring reliable disconnect and secure terminal connections.

This terminal block supports a nominal voltage of 500 V and a nominal current rating of 20 A, accommodating wire cross sections from 0.14 mm² up to 6 mm² (AWG 26 to AWG 10). It features a screw termination method ensuring strong and vibration-resistant connections.

The product features a compact and robust grey housing measuring 57.8 mm in length and 6.2 mm in width, making it appropriate for dense installations on standard NS 35/7.5 and NS 35/15 DIN rails.

Its one-level knife disconnect design with a double bridge shaft enables flexible and individual potential distribution and supply within electrical control panels.

Manufactured in Poland, this terminal block complies with industrial quality standards though it does not carry hazardous area certifications. The product lacks additional approvals but performs reliably in various industrial, manufacturing, automation, and electrical distribution systems.

Key features include its compact design, high current capacity, and compatibility with common wire sizes, facilitating its application in process technology setups and general industrial control panel wiring.

This knife disconnect block provides a compact and efficient solution for terminal wiring. Supports wire sizes from 0.14 mm² to 6 mm² with robust screw termination. Enables easy DIN rail mounting on NS 35/7.5 and NS 35/15 rails.

Double bridge shaft allows flexible potential distribution. Designed for industrial and process applications requiring secure disconnect functionality. Manufactured in Poland under strict quality controls. Nominal voltage rating: 500 V and current rating: 20 A.

Grey colour housing compatible with standardized control cabinet aesthetics. Length 57.8 mm and width 6.2 mm ensures space efficient panel layout.
