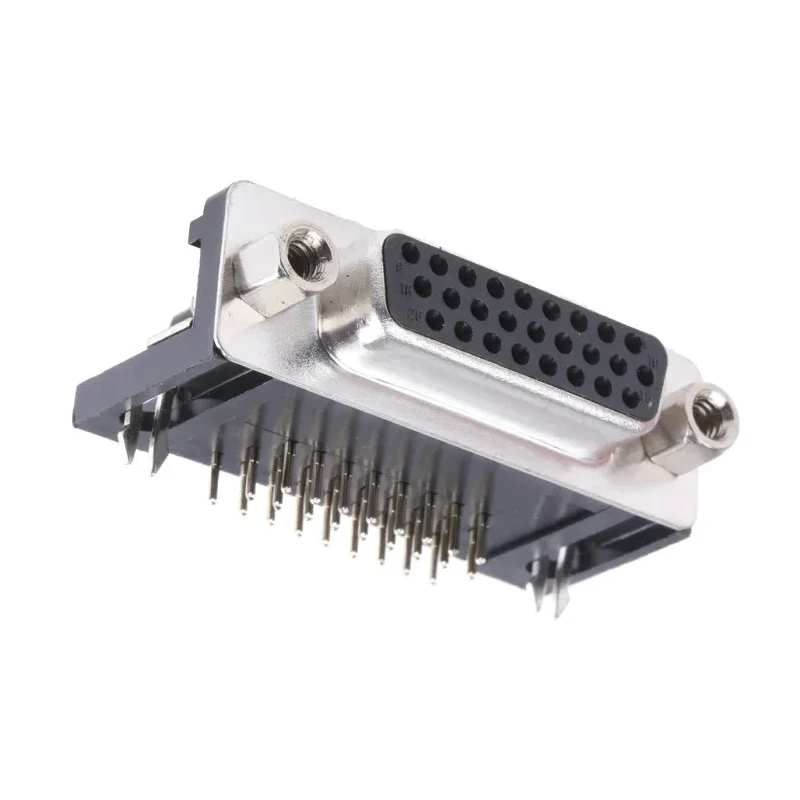

ASSMANN WSW A-HDF 26 Way Right Angle 2.29 mm Pitch Through Hole D-Sub Connector Female A-HDF 26 A-KG/T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 3A |
| Model | A-HDF 26 A-KG/T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | A-HDF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DF-26 |
Key Features
- Right angle orientation ensures reliable PCB connectivity.
- High-density 26 contacts designed for compact electronic assemblies.
- Made with brass contacts and polybutylene terephthalate housing for durability.
- Suitable for operating temperatures from -55°C to 105°C.
- Through hole mount type provides firm mechanical connection.
- Connector gender is female, compatible with corresponding male connectors.
- Conforms to the A-HDF series of high-density D-Sub connectors.
- Offers robust electrical performance with 250V rating and 3A current capacity.
Product Description
ASSMANN WSW A-HDF 26 A-KG/T is a high-density, 26-way right angle Through Hole D-Sub Connector designed for reliable PCB mounting in electronic assemblies. It features a compact 2.29 mm pitch and is female gender, suitable for use in power and signal applications demanding quality and durability.
The housing is molded from polybutylene terephthalate, providing robust resistance to mechanical stress and thermal variations, supporting operation between -55°C and 105°C. The brass contacts ensure excellent conductivity and corrosion resistance, rated for a maximum voltage of 250V and current of 3A.
This connector is part of the A-HDF series, known for high-density configurations enabling compact electronic designs in industrial, computing, and telecommunications sectors. The right angle orientation facilitates efficient PCB layouts and secure mechanical fixation via its through hole mount type.
Manufactured in China, this ASSMANN WSW connector is suitable for demanding environments requiring dependable connections and high electrical performance. Right angle orientation ensures reliable PCB connectivity. High-density 26 contacts designed for compact electronic assemblies.
Made with brass contacts and polybutylene terephthalate housing for durability. Suitable for operating temperatures from -55°C to 105°C. Through hole mount type provides firm mechanical connection. Connector gender is female, compatible with corresponding male connectors.
Conforms to the A-HDF series of high-density D-Sub Connectors. Offers robust electrical performance with 250V rating and 3A current capacity. Ideal for electronic, power, and computing connector applications.
This product enhances assembly efficiency and reliability in electronics manufacturing and maintenance. It is widely used in industrial automation, telecommunications equipment, and computing hardware.
Discover more connectors and electronic components by browsing the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the ASSMANN WSW A-HDF 26 D-Sub connector is 2.29 mm.
It has a maximum voltage rating of 250V.
The current capacity of this connector is 3A.
This connector is made with brass contacts and a housing of polybutylene terephthalate.
The operating temperature range is from -55°C to 105°C.
This model features 26 contacts.
It uses a through hole mount type for installation.
The connector gender is female, making it compatible with corresponding male connectors.
This connector is part of the A-HDF series of high-density D-Sub connectors.
The orientation of this connector is right angle, which facilitates efficient PCB layouts.
It is suitable for power and signal applications in industrial automation, telecommunications equipment, and computing hardware.
This connector is manufactured in China.
