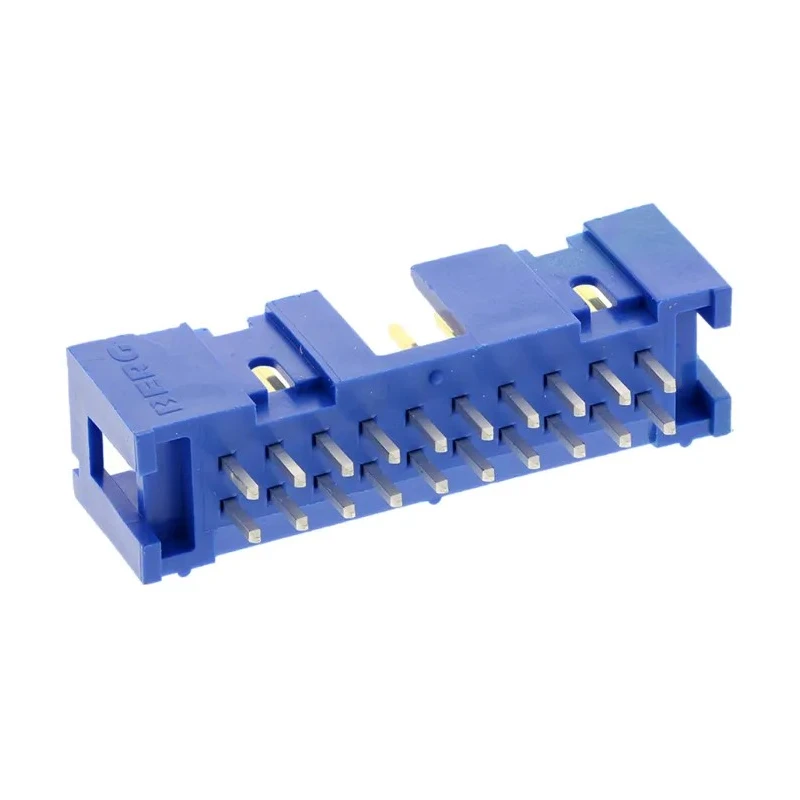

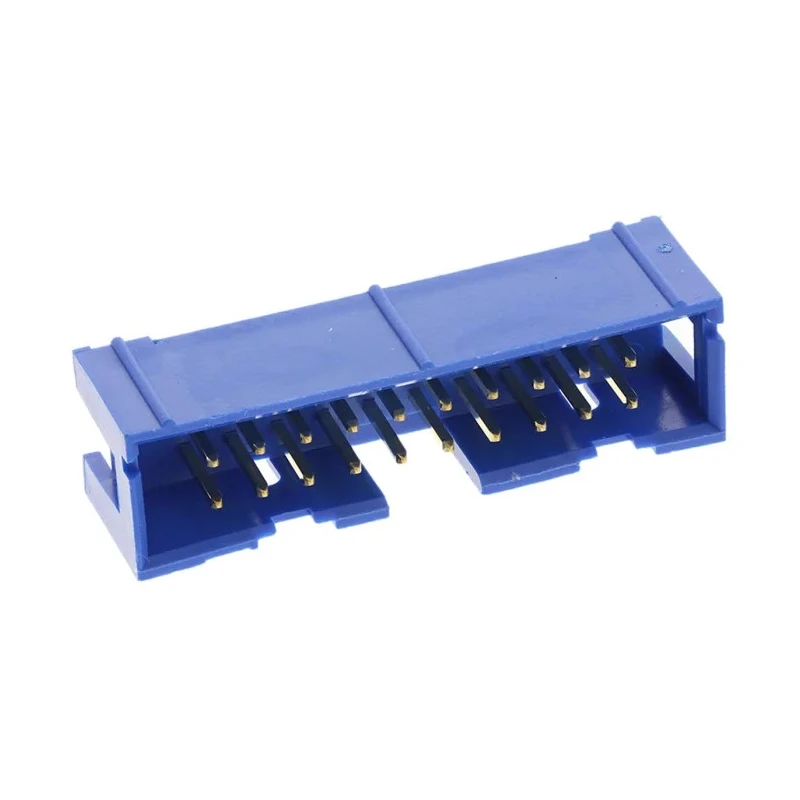

Amphenol Communications Solutions Quickie Series Straight Through Hole PCB Header, 20 Contact(s), 2.54 mm Pitch 75869-104LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 75869-104LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic Polyester |
| Contact Material | Phosphor Bronze |
| Series | Quickie |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| No polarization | 75869-130LF, 75869-131LF and 75869-132LF |
| Right polarization | 75869-101LF and 75869-102LF |
| Right and Left polarization | 75869-103LF, 75869-104LF and 75869-105LF |
Key Features
- Features a 2.54 mm pitch with 2 rows and 20 male contacts.
- Housing is made from glass filled thermoplastic polyester ensuring durability.
- Contacts are phosphor bronze with gold plating for excellent conductivity and corrosion resistance.
- Designed for through-hole solder termination providing secure PCB mounting.
- Operates at a maximum current of 3A and voltage rating of 500V.
- Shrouded connector system with straight orientation for reliable connection.
- Wide operating temperature range from -65°C to 105°C.
- Manufactured in France ensuring high quality standards.
Product Description
Amphenol Communications Solutions model 75869-104LF is a Quickie Series straight through hole PCB header designed for wire-to-board connector applications. This double row header features 20 gold-plated male contacts spaced at 2.54 mm pitch, mounted in a durable glass filled thermoplastic polyester housing. The phosphor bronze contacts have gold flash plating on the contact area and matte tin on the PCB tails to ensure reliable electrical connectivity and resistance to corrosion.
This PCB header supports a current rating of 3A and a voltage rating up to 500V, suitable for industrial, electronic, and communication equipment. Its straight orientation and shrouded design provide mechanical polarization and protection, reducing the risk of incorrect mating. The operating temperature range from -65°C to 105°C allows this connector to perform reliably in harsh environmental conditions.
Commonly used in PCB assembly and electronic hardware manufacturing, this header is ideal for robust wire-to-board interconnections requiring precision and durability. It is compatible with mating IDC Quickie receptacles and fits industry-standard PCB designs.
20 contacts with 2 rows and 2.54 mm pitch ensure compact and efficient PCB layout. Glass filled thermoplastic polyester housing for long-lasting mechanical stability. Phosphor bronze contacts with gold plating provide superior electrical performance.
Through-hole solder mount type guarantees stable mechanical and electrical connection. Operating temperature between -65°C and 105°C supports wide application environments. Rated for 3A current and 500V voltage for various electrical loads.
Shrouded, straight orientation for reliable connector alignment and protection.
Manufactured in France, the 75869-104LF Quickie Series PCB header is a trusted component for electronics manufacturers and assemblers seeking high-quality connectors. It complies with industry standards, ensuring compatibility and performance.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 500V, making it suitable for various electrical applications.
The current rating for the 75869-104LF is 3A, allowing it to handle moderate electrical loads effectively.
It features a 2.54 mm pitch with 20 male contacts arranged in 2 rows, ensuring compact PCB layouts.
The housing is made from glass filled thermoplastic polyester, while the contacts are phosphor bronze with gold plating for improved conductivity.
This PCB header uses a through-hole solder termination type, ensuring a secure mechanical and electrical connection.
It operates within a temperature range of -65°C to 105°C, suitable for various environmental conditions.
Yes, it is compatible with mating IDC Quickie receptacles and fits industry-standard PCB designs.
The model features a straight orientation, which aids in reliable connector alignment and protection.
This PCB header is manufactured in France, ensuring adherence to high quality standards.
It utilizes a wire-to-board connector system, making it suitable for various electronic applications.
This model features right and left polarization, specifically designed for the 75869-104LF and similar variants.
The gold plating on the phosphor bronze contacts enhances electrical performance and provides corrosion resistance.
