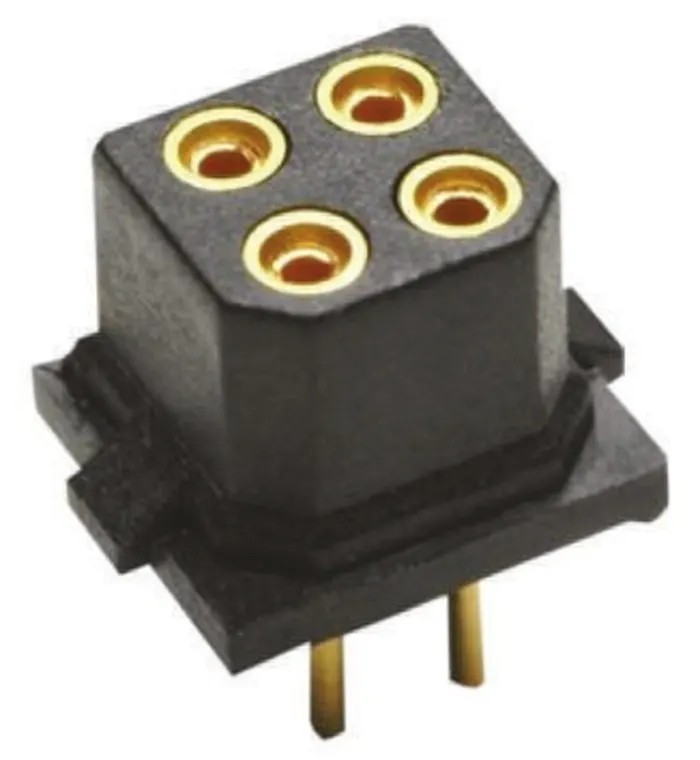

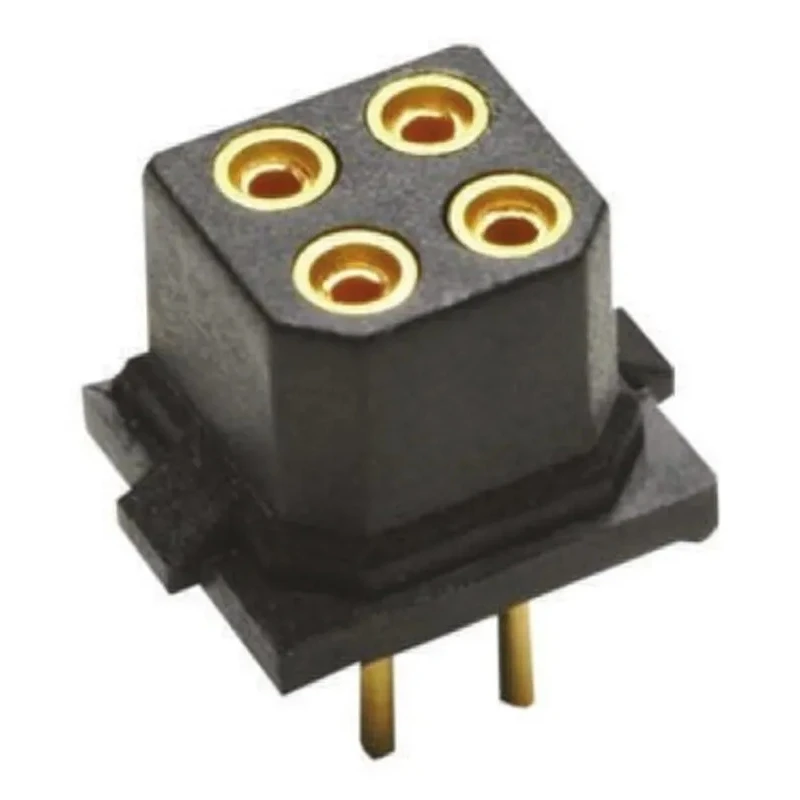

HARWIN M80 Series 10-Contact 2 Row 2 mm Pitch Straight Through Hole PCB Socket 120V 12A M80-8501042

HARWIN M80-8501042 is a high-quality straight through hole PCB socket with 10 contacts arranged in 2 rows and a pitch of 2 mm. It supports a current rating of 12A and voltage rating of 120V, making it suitable for a wide range of electronic assembly and interconnection applications.

This socket features a nylon housing and gold-plated beryllium copper alloy female contacts that ensure durable, reliable electrical connections with excellent conductivity. The through hole mount type enables stable soldering on PCB boards, ideal for board-to-board connector systems.

Operating reliably over a broad temperature range from -55°C to 125°C, this connector withstands harsh industrial environments and mechanical stresses such as vibration and shock. The design incorporates polarized mouldings to prevent incorrect mating and offers high mating cycle durability thanks to its four finger clip contacts.

The M80 Series by HARWIN complies with multiple standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, making it suitable for demanding applications in industrial, electronic manufacturing, and commercial sectors. These connectors are well suited for COTS (Commercial Off-The-Shelf) applications and feature compatibility with known industry equivalents.

This product is manufactured in the United Kingdom and is part of HARWIN's Datamate range, known for safety and reliability in critical electronic connections. The package is supplied in a tube, ready for insertion into machinery to improve production efficiency.

High reliability 2-row, 10-contact PCB Socket for board-to-board connections. Pitch size of 2 mm ensures precise and stable welding. Through hole mounting type with nylon housing for durability. Features gold-plated beryllium copper alloy contacts for excellent conductivity.

Operates reliably from -55°C to 125°C in harsh environments. Designed for applications requiring resistance to vibration, shock, and acceleration. Compatible with industry standard equivalents, suitable for COTS applications.

Polarized mouldings ensure correct connector alignment and prevent mismating. Durable four finger contact design maintains connection integrity over high mating cycles. Manufactured in the United Kingdom to quality standards.
