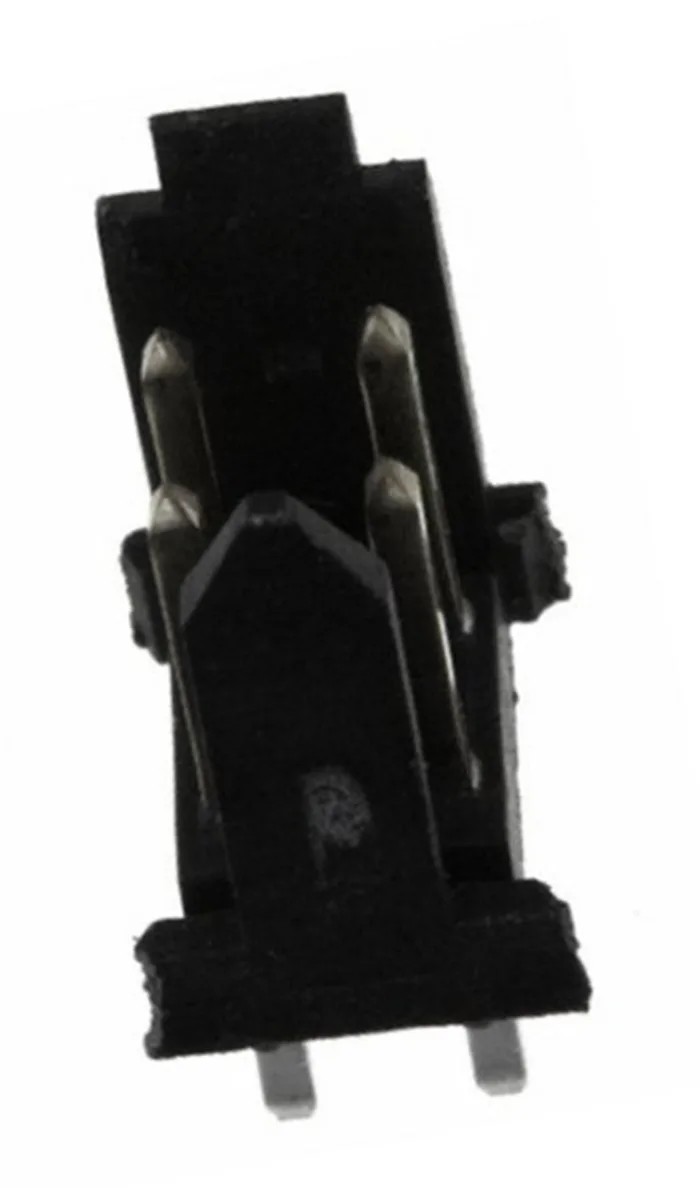

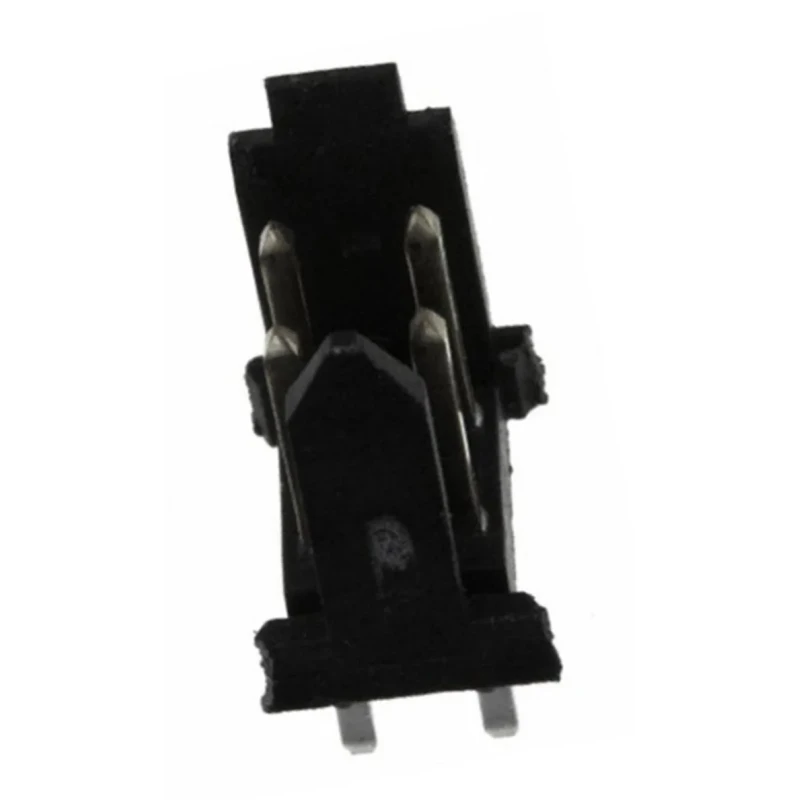

Amphenol Communications Solutions Dubox Series Straight Through Hole PCB Header Connector, 4 Contacts, 2.54 mm 76385-302LF

Amphenol Communications Solutions 76385-302LF is a Dubox Series straight through hole PCB header connector designed for high reliability wire-to-board connections. It features 4 gold-plated phosphor bronze contacts arranged in 2 rows with a precise 2.54 mm pitch. The housing is constructed from glass filled thermoplastic polyester, offering high temperature resistance necessary to withstand solder reflow and wave solder processes commonly used in PCB assembly.

This connector is shrouded on two walls and end-to-end stackable, providing efficient PCB space usage. The integrated polarization prevents incorrect mating, and the friction lock ensures a secure connection, making it ideal for industrial, instrumentation, medical, consumer electronics, communications, and data applications.

The connector supports a maximum current of 3A and a voltage rating of 1kV. It operates reliably across a temperature range of -40°C to 125°C. Termination is via soldering, guaranteeing a strong, long-lasting connection to the PCB.

These PCB headers from Amphenol Communications Solutions deliver dependable performance for applications requiring compact and robust wire-to-board connectors, including industrial control systems, instrumentation, medical equipment, and communications infrastructure.

Features a straight orientation with through-hole mount type for easy PCB integration. Housing made of high temperature glass filled thermoplastic polyester. Gold plated phosphor bronze contacts for superior conductivity and corrosion resistance.

Supports current rating of 3A and voltage rating of up to 1kV. Polarization and friction lock design for secure and reliable mating. Operating temperature range from -40°C to 125°C. Compatible with Dubox crimp connector housings for wire to board applications.

End-to-end stackable design saves PCB footprint.

Choose Amphenol Communications Solutions 76385-302LF for reliable, industry-standard 2.54 mm pitch PCB header connectivity, suitable across a broad range of electronic and industrial applications. Browse more PCB Header connectors and related products at EnvMart for your project needs.
