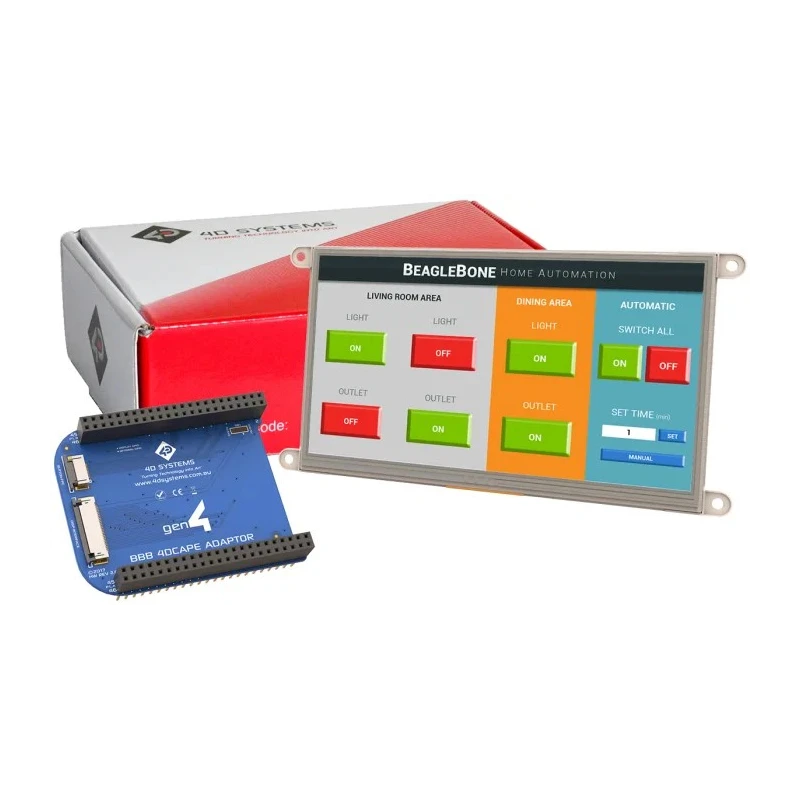

4D Systems gen4-4DCAPE-70T 7 in LCD Colour Display Touch Screen with 800 x 480 Pixel Resolution gen4-4DCAPE-70T
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 990mA |
| Height | 8.4mm |
| Model | gen4-4DCAPE-70T |
| Depth | 85.63mm |
| Width | 102.1mm |
| Series | gen4 |
| Maximum Operating Temperature | 70°C |
| Brightness | 400cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | UART |
| Screen Resolution | 800 x 480 pixel |
| Standards/Approvals | CE |
| Touch Screen Type | Resistive |
| Minimum Supply Voltage | 5V dc |
| Viewing Area Dimensions | 154 x 86 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 7in |
| Contrast Ratio | 500:1 |
| Contrast Ratio 500 | 1 |
Key Features
- The display features a resistive touch screen with Microchip AR1021 controller for accurate user input interpretation.
- It offers a wide viewing area of 154 x 86 mm with LED backlight for bright and clear visuals.
- The module operates with 5V DC power supply and consumes 990mA current.
- Operating temperature range is from -20°C to 70°C, suitable for various industrial environments.
- The display includes the 4DCAPE adaptor and a 30-way FFC cable for easy connection to BeagleBone Black.
- It complies with CE and RoHS standards ensuring quality and safety.
Product Description
4D Systems gen4-4DCAPE-70T is a 7 inch LCD Colour Display Touch Screen module featuring a resolution of 800 x 480 pixels, designed specifically for integration with the BeagleBone Black development platform. This gen4 series display incorporates a resistive touch screen controlled by the Microchip AR1021 controller, allowing precise user input through the I²C interface. The display module offers a viewing area dimension of 154 x 86 mm with LED backlighting ensuring high brightness of 400 cd/m² and a contrast ratio of 500:1 for vivid visuals.
Powered via a 5V DC supply with typical current consumption of 990mA, the unit is built to operate reliably in temperatures from -20°C up to 70°C, accommodating typical industrial and laboratory environments. The slim form factor with dimensions of 102.1mm width, 85.63mm depth, and 8.4mm height makes it compact and versatile for embedded systems.
The gen4-4DCAPE-70T includes the 4DCAPE adaptor that directly connects to the BeagleBone Black expansion headers and a 30-way flat flexible cable (FFC) to interface with the display, eliminating the need for additional wiring. This setup simplifies hardware integration and speeds up development processes.
The product complies with CE and RoHS standards, ensuring environmental and safety compliance in applications spanning industrial automation, embedded computing, educational projects, and prototyping platforms. The resistive touch functionality provides a rugged and cost-effective user input system suitable for a variety of control and display applications.
The display module features a resistive touch screen with Microchip AR1021 controller for user interface input. It offers LED backlit 7 inch screen with 800 x 480 pixel resolution for bright, clear visuals. Designed exclusively for BeagleBone Black, it connects via an included 4DCAPE adaptor and 30-way FFC cable.
Operates on a 5V DC power supply with current draw of 990mA, ensuring compatibility with embedded systems. Wide operating temperature range of -20°C to 70°C accommodates industrial and laboratory environments.
Set contains 1 x gen4 4DCAPE LCD Module, 1 x gen4 4DCAPE adaptor, and 1 x 30-way FFC Cable. Explore the Electronics Components category at EnvMart for more industrial-grade display solutions.
Explore more products in our LCD Colour Displays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display features a resolution of 800 x 480 pixels.
It utilizes a resistive touch screen controlled by the Microchip AR1021 controller.
The display operates reliably in temperatures ranging from -20°C to 70°C.
The display measures 102.1mm in width, 85.63mm in depth, and 8.4mm in height.
The display has a brightness level of 400 cd/m².
It operates on a 5V DC power supply with a current consumption of 990mA.
The display features an LED backlight for enhanced visibility.
This model is specifically designed for integration with the BeagleBone Black development platform.
The display has a contrast ratio of 500:1.
The package includes the gen4 4DCAPE LCD Module, a 4DCAPE adaptor, and a 30-way FFC cable.
It complies with CE and RoHS standards, ensuring quality and safety.
The viewing area dimensions are 154 x 86 mm.
