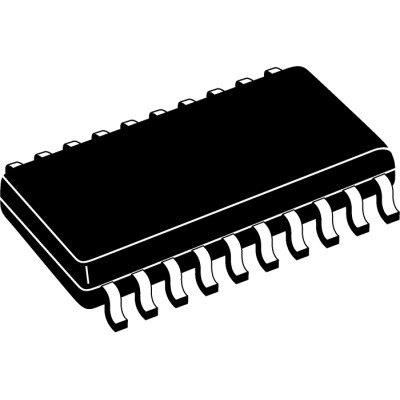

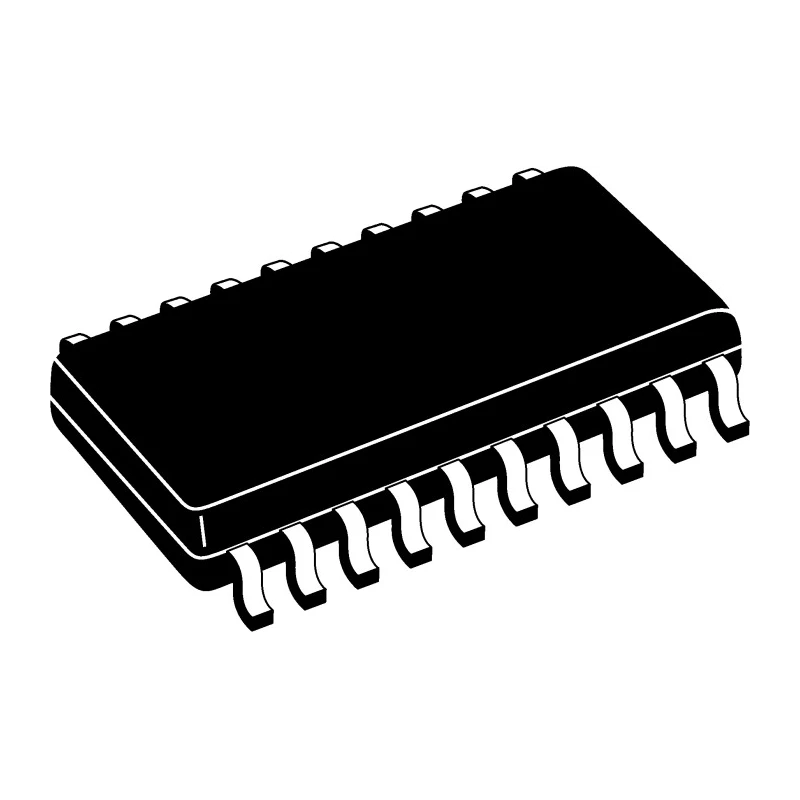

onsemi 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin SOIC MM74HCT244WMX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.6mm |
| Length | 13mm |
| Model | MM74HCT244WMX |
| Width | 7.5mm |
| Mount Type | Surface |
| Compatibility | Input TTL, Output CMOS |
| Output type | 3 State |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | HCT |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -7.2mA |
| Maximum Propagation Delay Time @ CL | 42ns |
| Supply Current | 70mA |
| Maximum Low Level Output Current | 7.2mA |
Key Features
- Features 8 buffering channels with non-inverting logic function.
- Supports 3-state outputs for improved signal control.
- Operates at supply voltage from 4.5V to 5.5V.
- Surface mount device in a 20-pin SOIC package.
- Operating temperature range from -40°C to 85°C to suit industrial applications.
- Maximum propagation delay of 42 nanoseconds at specified load.
- Compatible with TTL input and CMOS output logic levels.
- Maximum output current ±7.2mA ensuring reliable driving capability.
Product Description
onsemi MM74HCT244WMX 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin SOIC is a high-performance buffer IC from the 74HCT family. It is designed for industrial and electronic applications requiring signal buffering, line driving, and logic level conversion.
This device provides eight independent non-inverting buffers with 3-state outputs allowing flexible control of data flow in digital systems. Its CMOS logic architecture ensures high speed operation within supply voltages ranging from 4.5V to 5.5V, supporting compatibility with both TTL and CMOS logic families.
Operating over a wide temperature range of -40°C to +85°C, this IC is suitable for demanding industrial environments. With a maximum propagation delay time of 42ns at typical load conditions, it guarantees reliable timing performance in circuit designs.
The MM74HCT244WMX features a compact surface mount SOIC package with 20 pins, dimensioned at 13mm in length, 7.5mm in width, and 2.6mm in height, enabling board space savings in densely packed electronics assemblies.
Output current capability of ±7.2mA on both high and low levels ensures dependable signal drive strength for various interfacing needs. The 3-state outputs allow multiple device interfacing without bus contention.
Features 8 buffering channels with non-inverting logic function. Supports 3-state outputs for improved signal control. Operates at supply voltage from 4.5V to 5.5V. Surface mount device in a 20-pin SOIC package. Operating temperature range from -40°C to 85°C to suit industrial applications.
Maximum propagation delay of 42 nanoseconds at specified load. Compatible with TTL input and CMOS output logic levels. Maximum output current ±7.2mA ensuring reliable driving capability. Compact dimensions with 13mm length, 7.5mm width and 2.6mm height.
This buffer and line driver IC is widely used in industrial electronics, automation equipment, communication systems, and other electronic designs requiring robust digital signal buffering.
Explore other Line Interface ICs and semiconductor devices at EnvMart for comprehensive component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a supply voltage range from 4.5V to 5.5V.
This model features 8 independent buffering channels.
The maximum propagation delay time is 42 nanoseconds at specified load conditions.
It operates within a temperature range of -40°C to +85°C, suitable for industrial applications.
It features 3-state outputs, allowing for improved signal control and multiple device interfacing without bus contention.
The dimensions are 13mm in length, 7.5mm in width, and 2.6mm in height.
Yes, it is compatible with TTL input and CMOS output logic levels.
The maximum output current is ±7.2mA, ensuring reliable driving capability.
It is packaged in a 20-pin SOIC surface mount configuration.
It functions as a buffer and line driver, providing non-inverting logic.
The supply current is 70mA.
It supports single-ended input type.
