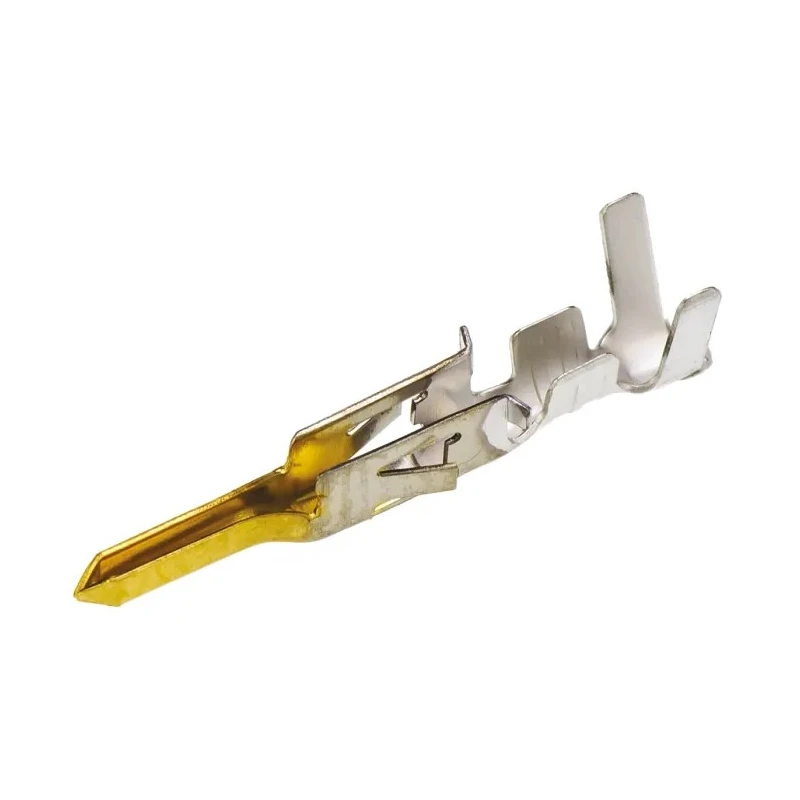

Molex 5558 Series Male Crimp Terminal, 24 AWG Min Wire, 18 AWG Max Wire, 9A Current, Brass Gold Plated Contact 39-00-0430
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from durable brass with gold-plated contacts for enhanced conductivity and corrosion resistance.
- Rated for a maximum current of 9 amperes, suitable for reliable power delivery.
- Supports wire sizes from 0.2 mm² (24 AWG) up to 0.8 mm² (18 AWG) for versatile application.
- Operates efficiently within a temperature range of -40°C to 105°C, accommodating various environmental conditions.
- Features a crimp termination type ensuring secure and stable electrical connections.
- Compatible with Mini-Fit Jr connector housing systems for industrial and electronic uses.
- Gold plating reduces oxidation and maintains long-lasting connection quality.
- Maximum contact resistance is 10 milliohms, ensuring minimal electrical loss.
Product Description
Molex 39-00-0430 is a male crimp terminal for use with Mini-Fit Jr connector housings, featuring brass contact material with gold plating for superior conductivity and corrosion protection. The terminal supports wire sizes ranging from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²), allowing flexibility in electrical applications requiring secure connections.
This crimp terminal is rated for a maximum current of 9 amperes, making it suitable for power delivery in various electronics, electrical, and industrial automation environments. It functions reliably between operating temperatures of -40°C and 105°C, accommodating a wide array of thermal conditions.
The crimp termination method ensures a stable and secure connection, essential in assembly processes where vibration or movement could otherwise cause connection failures. With a contact resistance of only 10 milliohms, this terminal maintains excellent electrical performance through low resistance connection points.
Manufactured in the United States, this component provides high-quality assurance and consistency needed for sensitive power and signal transmission systems. The gold plating on contacts resists oxidation and extends the lifespan of connections in demanding industrial environments.
Durable brass construction enhances strength and conductivity. Gold plating ensures reduced oxidation and improved contact reliability. Designed for use with Mini-Fit Jr connector housing systems. Supports wire gauges ranging from 24 AWG to 18 AWG.
Rated for a maximum current capacity of 9 amperes. Operates within -40°C to 105°C temperature range. Low contact resistance of 10 milliohms maximizes efficiency.
This terminal is ideal for electrical and electronic applications such as cable assemblies, automation machinery, communications, networking, and other industrial sectors requiring dependable crimp connections. It complements various connector systems in automotive, medical, consumer electronics, and industrial automation projects.
Explore the Molex brand for quality connector components and browse EnvMart for a comprehensive range of electronic components and Crimp Contacts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this male crimp terminal is 9 amperes.
This terminal supports wire sizes ranging from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²).
It operates efficiently within a temperature range of -40°C to 105°C.
The contacts are made from brass and are gold plated to enhance conductivity and corrosion resistance.
This terminal is designed for use with Mini-Fit Jr connector housing systems.
The maximum contact resistance is 10 milliohms, ensuring minimal electrical loss.
It features a crimp termination type, ensuring secure and stable electrical connections.
This terminal is manufactured in the United States.
It is suitable for electrical and electronic applications such as cable assemblies, automation machinery, and communications.
This model is a male crimp terminal.
Specific dimensions and weight are not provided in the available data.
Gold plating reduces oxidation and maintains long-lasting connection quality, enhancing reliability in demanding environments.
