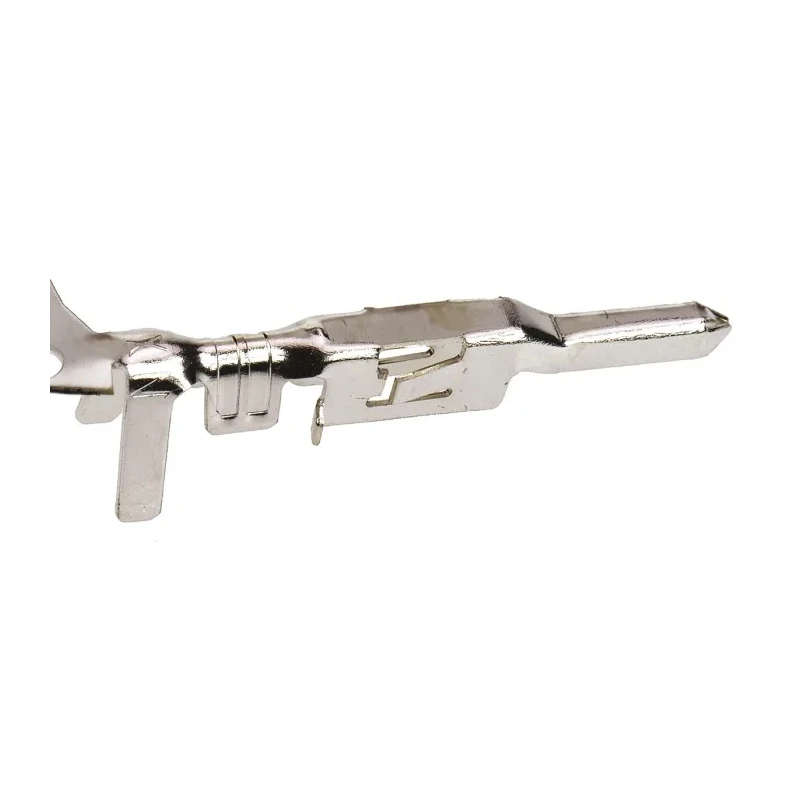

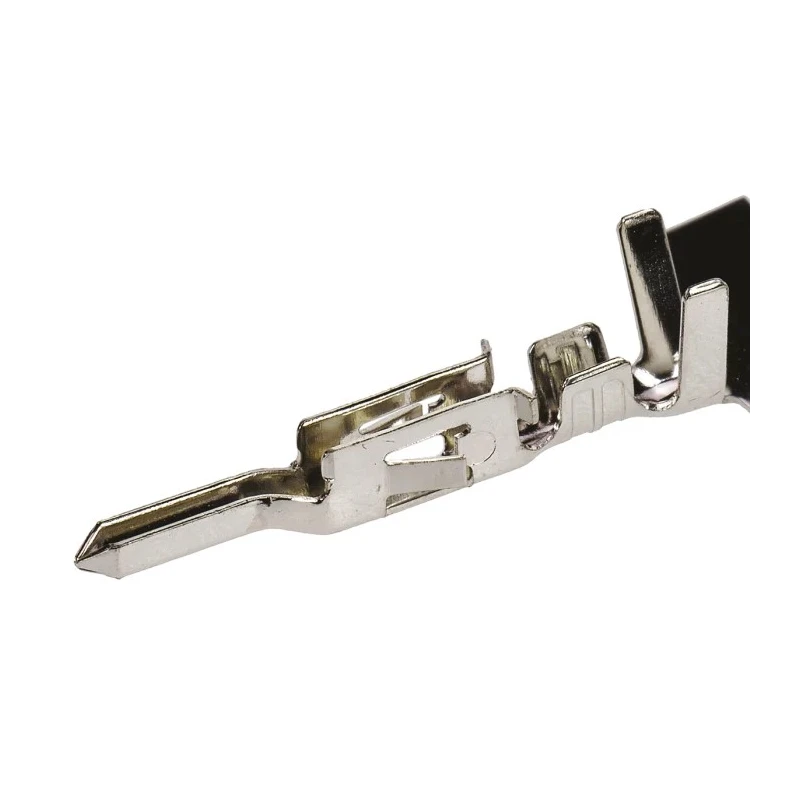

Molex 5558 Series Male Crimp Terminal 24 AWG Min Crimp, 18 AWG Max, Tin-Plated Brass Contacts, 9A, Crimp 39-00-0120
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with tin-plated brass contacts for reliable conductivity.
- Suitable for currents up to 9 amperes.
- Operates effectively in temperatures ranging from -40°C to 105°C.
- Features locking tangs ensuring secure connection in connector housings.
- Supports wire sizes from 0.2mm² (24 AWG) to 0.8mm² (18 AWG).
- Maximum contact resistance of 10 milliohms ensures minimal signal loss.
- Designed for crimp termination to provide mechanical and electrical reliability.
- Ideal for industrial automation, automotive components, and communication networks.
Product Description
Molex 39-00-0120 is a high-quality male crimp terminal from the 5558 Series, engineered to work with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings. Crafted from tin-plated brass, it ensures excellent conductivity and resistance to corrosion for extended product life.
This crimp terminal accommodates wire sizes ranging from 24 AWG (0.2mm²) to 18 AWG (0.8mm²), supporting current capacities up to 9 amperes. Its locking tangs provide a secure and vibration-resistant connection, suitable for harsh industrial environments with operating temperatures between -40°C and +105°C.
The terminal features a maximum contact resistance of 10 milliohms, minimizing electrical losses and enhancing signal integrity. Its reliable crimp termination mechanism guarantees mechanical strength and electrical performance in demanding applications.
Applications include automotive components, industrial automation systems, communication network equipment, and other electronic assemblies where secure and efficient electrical connections are critical.
The Molex Mini-Fit Jr. series crimp contacts are well-regarded for their multiple points of contact design, which facilitates high current carrying capacity and ensures a reliable interface within the connector housing.
Constructed with tin-plated brass contacts for reliable conductivity. Suitable for currents up to 9 amperes. Operates effectively in temperatures ranging from -40°C to 105°C. Features locking tangs ensuring secure connection in connector housings.
Supports wire sizes from 0.2mm² (24 AWG) to 0.8mm² (18 AWG). Maximum contact resistance of 10 milliohms ensures minimal signal loss. Designed for crimp termination to provide mechanical and electrical reliability. Ideal for industrial automation, automotive components, and communication networks.
This product is manufactured in the United States and is offered new, guaranteeing high quality and manufacturing standards. Explore other Molex Crimp Contacts and connectors at EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current of 9 amperes.
It accommodates wire sizes ranging from 24 AWG (0.2mm²) to 18 AWG (0.8mm²).
The terminal operates effectively in temperatures ranging from -40°C to 105°C.
The maximum contact resistance is 10 milliohms, ensuring minimal signal loss.
It is constructed with tin-plated brass contacts for reliable conductivity and corrosion resistance.
This model is designed for use with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
The crimp termination provides mechanical strength and electrical performance, making it suitable for demanding applications.
It features locking tangs that ensure a secure and vibration-resistant connection in connector housings.
It is ideal for applications in industrial automation, automotive components, and communication networks.
This product is manufactured in the United States.
This terminal belongs to the Molex 5558 Series.
This crimp terminal is designed as a male connector.
