| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, 5557 Mini-Fit Jr. Receptacle Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |

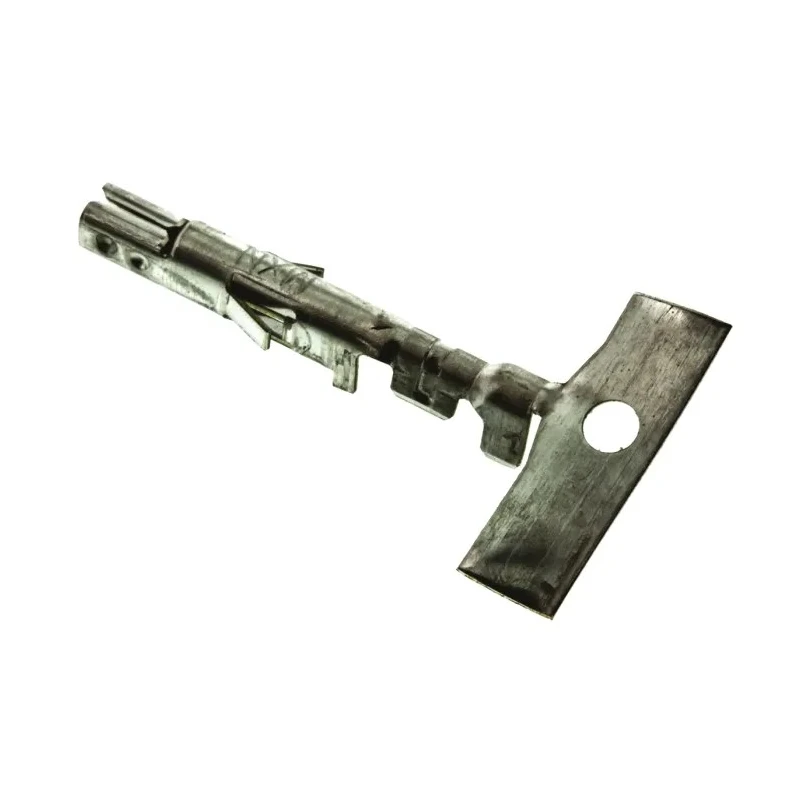

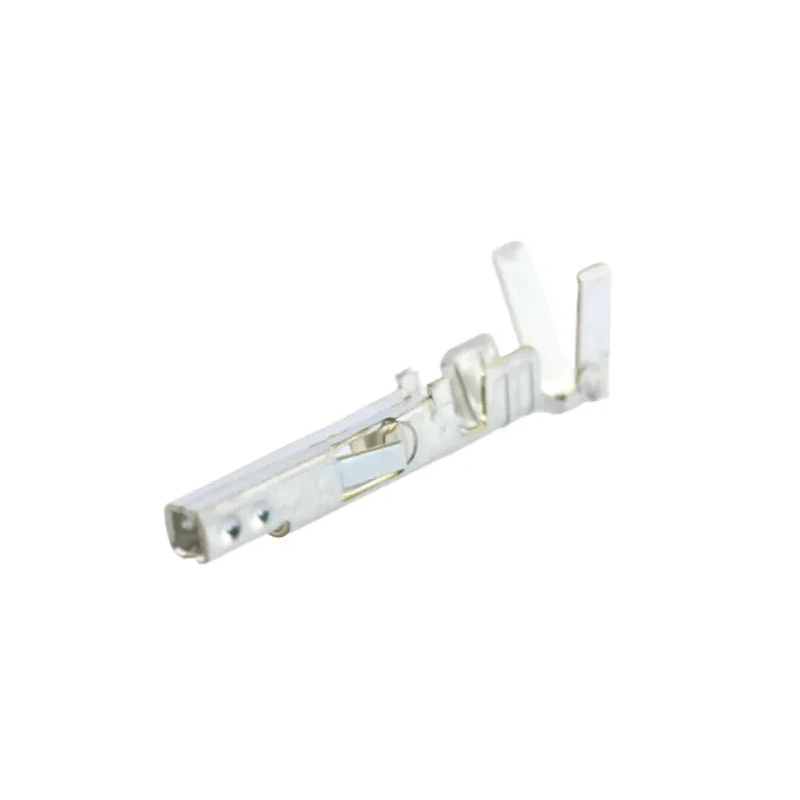

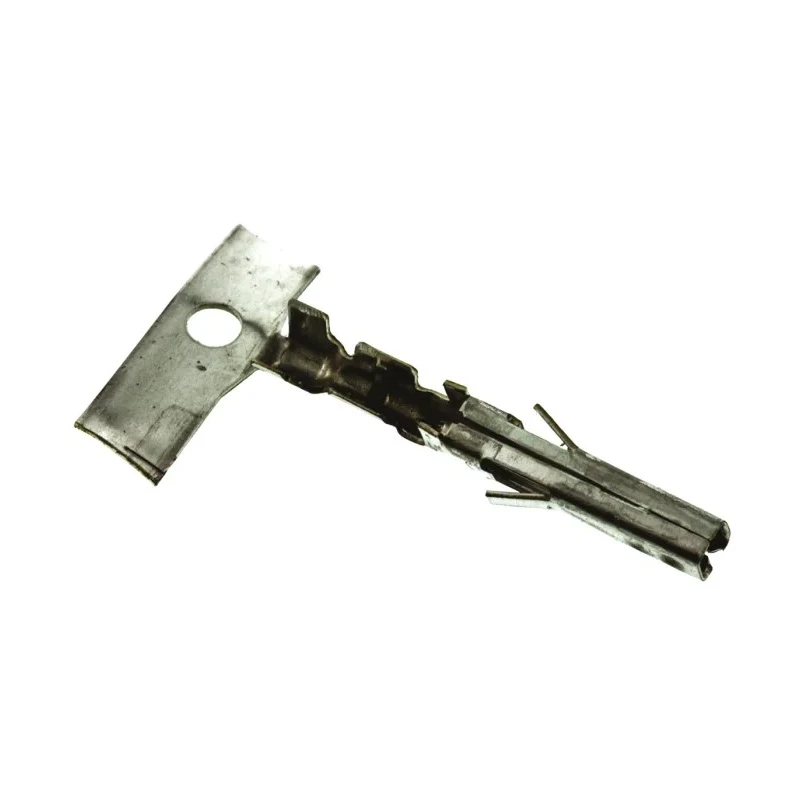

Molex 39-00-0046 Female Crimp Terminal is designed for strong, reliable electrical connections in applications requiring secure female contacts within the Mini-Fit connector system. Compatible with wire sizes ranging from 28 AWG minimum to 22 AWG maximum, this crimp terminal supports currents up to 9 amperes, making it ideal for PCB wiring and industrial electronics.
The terminal features a brass contact material with tin plating, providing corrosion resistance and ensuring longevity in challenging environments. The crimp termination method enables quick and dependable installations without the need for soldering, and locking tangs securely hold the terminal in connector housings, maintaining reliable contact even under vibration and mechanical stress.
Engineered to operate from -40°C up to 105°C, this Molex 5556 Series terminal suits automotive, telecommunications, security systems, and other industrial uses requiring durable and secure wire terminations. Its low halogen composition enhances fire safety by reducing toxic fume emissions in case of fire.
Supports currents up to 9 amperes. Fits Mini-Fit TPA, BMI Panel Mount, and Mini-Fit Jr. receptacle housings. Brass contacts with tin plating for corrosion protection. Crimp termination provides secure, solder-free connections.
Operating temperature range from -40°C to 105°C. Locking tangs ensure secure mechanical retention. Low halogen content for improved fire safety. Used extensively in automotive, telecom, and security systems.
This terminal is part of Molex's Mini-Fit Jr.™ Series, recognized for reliable electrical performance with multiple points of contact and higher current capacity. The specific extraction tool compatible with this range is model 2155900, supporting easy maintenance and repair tasks. Purchasing this Molex terminal guarantees a high-quality connector component for industrial, laboratory, manufacturing, and commercial applications.
