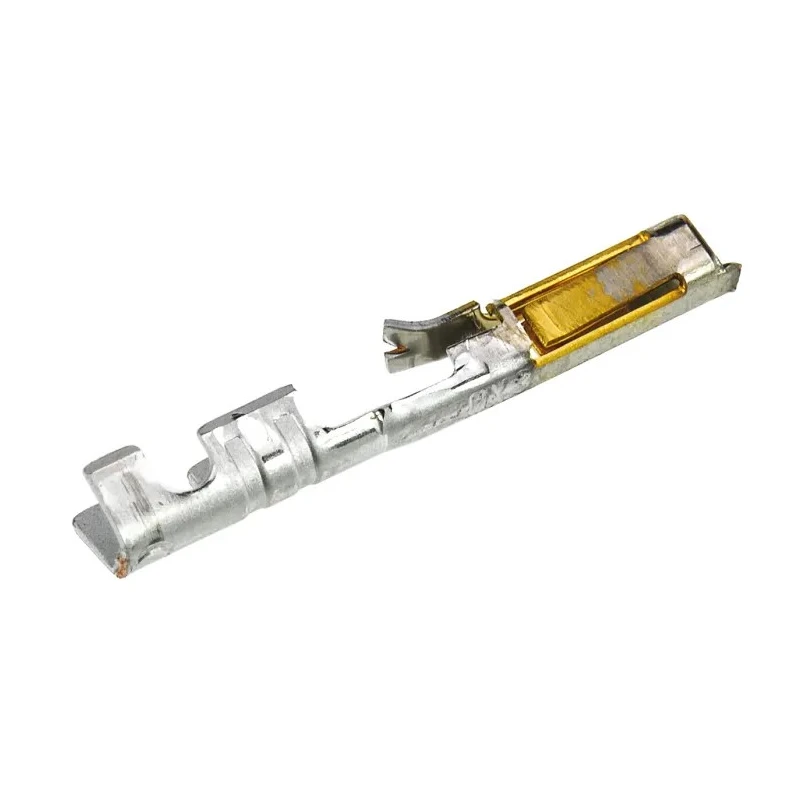

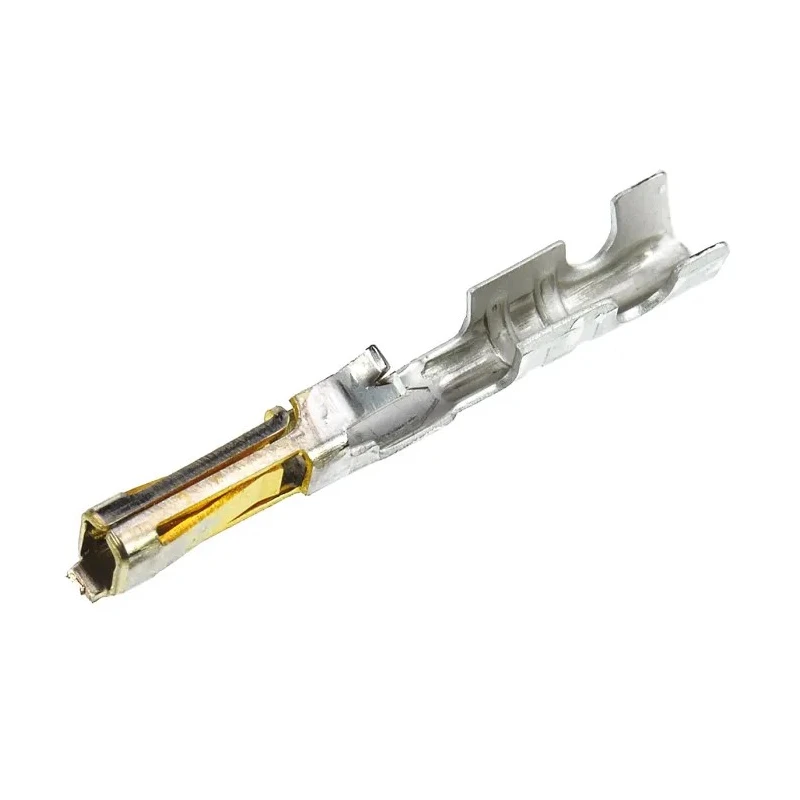

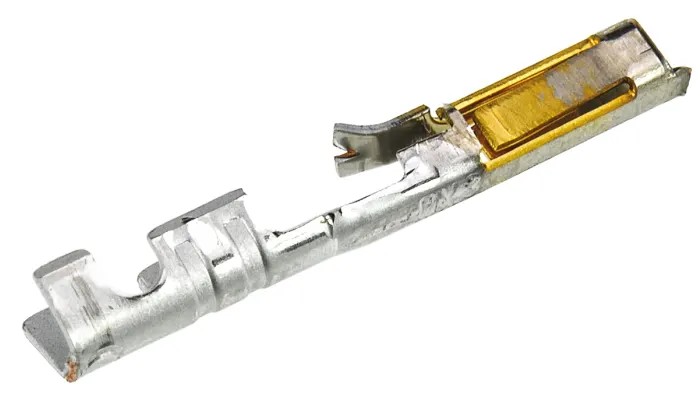

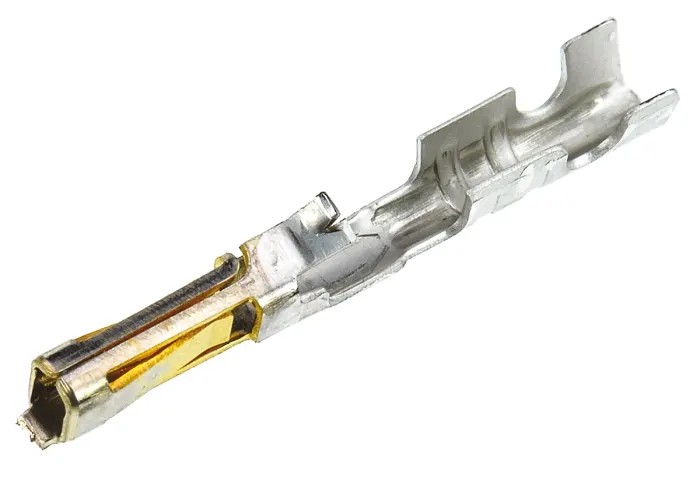

Molex 70058 Series Female Crimp Terminal Gold Plated Phosphor Bronze 24 AWG Min Crimp 22 AWG Max 16-02-0088
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Standards/Approvals | EU RoHS, CHINA RoHS |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Gold-plated contacts ensure excellent corrosion resistance and conductivity.
- Compatible with SL connector housings for secure connections.
- Supports wire sizes from 24 AWG to 22 AWG for flexibility.
- Phosphor bronze material provides strong electrical conductivity.
- Rated up to 3A current for standard electronic applications.
- Operates reliably between -40°C and 105°C temperature range.
- Compact design with 1.63 mm maximum wire insulation diameter.
- Terminated via crimp for secure and efficient wire connections.
Product Description
Molex 16-02-0088 female crimp terminal from the 70058 series delivers dependable electrical connection for PCB and wire housing applications. It features gold-plated phosphor bronze contacts which enhance electrical conductivity while providing excellent resistance against rust and oxidation, ensuring long-term durability in harsh environments. Designed for use with SL connector housings, this terminal accommodates wire diameters ranging from 24 AWG minimum to 22 AWG maximum, supporting a maximum current of 3 amperes. It performs efficiently within a temperature range of -40°C to 105°C, suitable for diverse industrial, automotive, and consumer electronics applications.
The compact terminal allows a maximum wire insulation diameter of 1.63 mm, facilitating reliable and space-efficient wiring solutions. Installation is simplified through a crimp termination type, which ensures secure mechanical and electrical contact. Compliance with EU RoHS and China RoHS directives confirms its environmental safety and regulatory adherence. Manufactured in the United States, this new-condition crimp terminal combines premium materials and engineering for robust performance in demanding electrical assemblies.
Gold-plated contacts enhance resistance to corrosion and maintain optimal conductivity. Phosphor bronze contact material ensures durability and electrical efficiency. Supports wire sizes from 24 to 22 AWG, offering versatile compatibility.
Maximum contact resistance of 15 milliohms reduces electrical loss. Maximum operating temperature of 105°C suits various thermal environments. Crimp termination provides strong and reliable cable connections. Complies with EU and China RoHS standards for environmental compliance.
Rated current of 3 amperes for typical circuit protection and power integrity. Applications include industrial electronics, automotive equipment, and consumer devices.
Explore the Molex crimp terminal category at EnvMart for precise electronic components suited for PCB and wire housing connectivity requirements. This terminal is ideal for users demanding consistent performance and regulatory compliance in compact form factors.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal is rated for a maximum current of 3 amperes.
It supports wire sizes from 24 AWG minimum to 22 AWG maximum, accommodating a range of applications.
The terminal operates reliably within a temperature range of -40°C to 105°C.
The contacts are made from phosphor bronze and are gold plated to enhance conductivity and corrosion resistance.
This model uses crimp termination for secure and efficient wire connections.
It is designed for use with SL connector housings, ensuring secure connections.
The maximum contact resistance is 15 milliohms, which helps reduce electrical loss.
Yes, it complies with EU RoHS and China RoHS directives, confirming its environmental safety.
The maximum wire insulation diameter is 1.63 mm, allowing for space-efficient wiring solutions.
This model is manufactured in the United States.
It is suitable for various applications including industrial electronics, automotive equipment, and consumer devices.
This terminal belongs to the Molex 70058 series.
