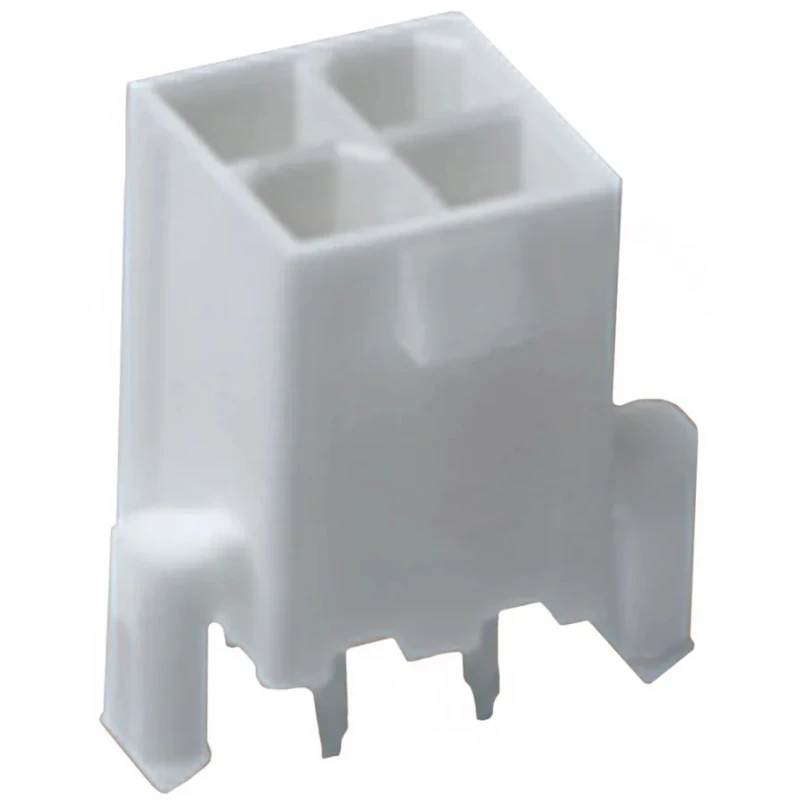

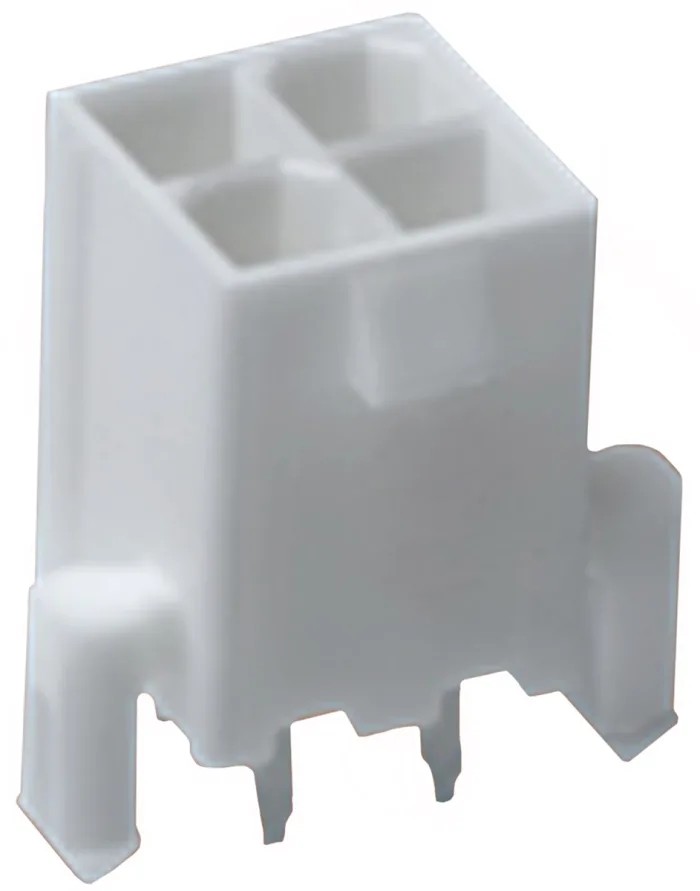

Molex Mini-Fit Jr Series Straight Through Hole PCB Header, 6 Contacts, 4.2 mm Pitch, 2 Row, Shrouded 39-29-9062
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 9A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Rated for up to 9A current per circuit, suitable for high current applications.
- Constructed with nylon housing and brass contacts for durability.
- Shrouded design with scoop-proof housings prevents contact damage during mating.
- Features polarization, keying, and positive locking mechanism for secure and correct connection.
- Supports straight orientation and through-hole mounting on PCBs.
- Contacts are tin-plated for corrosion resistance and solder termination.
- Operating temperature range from -40°C to 105°C ensures versatility in various environments.
- Connector system designed for wire-to-board applications with two rows and 4.2 mm row pitch.
Product Description
Molex 39-29-9062 Mini-Fit Jr Series Straight Through Hole PCB Header is a robust electrical connector designed for wire-to-board applications. This PCB header features 6 brass contacts arranged in 2 rows with a 4.2 mm pitch, making it ideal for compact, high current circuit designs. Its shrouded housing provides protection against debris, arcing, and mechanical damage during handling and mating, ensuring enhanced durability in industrial and commercial environments.
The connector housing is made from durable nylon material that meets UL94V-0 or UL94V-2 flammability standards. The contacts have tin plating, offering excellent corrosion resistance and reliable solder termination. Its straight orientation and through-hole mount type facilitate easy PCB assembly and secure mechanical retention.
Designed to handle up to 9A current per circuit and rated for up to 600V voltage, this Mini-Fit Jr header is suitable for demanding power delivery and industrial control applications. It operates reliably over a temperature range from -40°C to 105°C, accommodating a variety of environmental conditions.
The connector system incorporates polarization and keying features to prevent misalignment and mismatching during installation. A positive locking mechanism ensures a secure connection that resists shock and vibration, and an audible click confirms full mating. Variants also include options with snap-in plastic PCB peg locks and mounting flanges for added retention on printed circuit boards.
Applications for this Molex Mini-Fit Jr PCB Header include consumer white goods, office equipment, industrial automation, networking hardware such as rack-mount servers, routers, and switches. It delivers reliable and safe power and signal interfacing within electronics and industrial control systems.
Rated current: 9A per circuit for high current capacity. Housing: Nylon for durability and flammability resistance. Contact Material: Brass with tin plating for reliable conductivity and corrosion resistance. Mount Type: Through hole with straight orientation for PCB mounting.
Temperature range: From -40°C to 105°C for versatile use conditions. Pitch: 4.2 mm with two-row configuration for compact design. Shrouded housing with scoop-proof design to protect contacts. Positive locking mechanism ensures secure connection stability.
Made in Mexico with consistent quality manufacturing. Explore more PCB connector solutions from Molex at EnvMart to support your electronic component needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for up to 9A current per circuit, making it suitable for high current applications.
The voltage rating for this header is 600V, allowing it to be used in demanding power delivery applications.
The housing is made from nylon, while the contacts are constructed from brass with tin plating for corrosion resistance.
It operates reliably over a temperature range from -40°C to 105°C, accommodating various environmental conditions.
This model features 6 contacts arranged in a 2-row configuration.
It supports through-hole mounting, which facilitates easy PCB assembly and secure mechanical retention.
Yes, it incorporates polarization and keying features to prevent misalignment and mismatching during installation.
The contacts use solder termination, ensuring reliable connectivity.
The pitch of the contacts is 4.2 mm, which is suitable for compact designs.
It is suitable for applications in consumer white goods, office equipment, industrial automation, and networking hardware.
Yes, it features a positive locking mechanism that ensures a secure connection and resists shock and vibration.
This PCB header is manufactured in Mexico, ensuring consistent quality.
