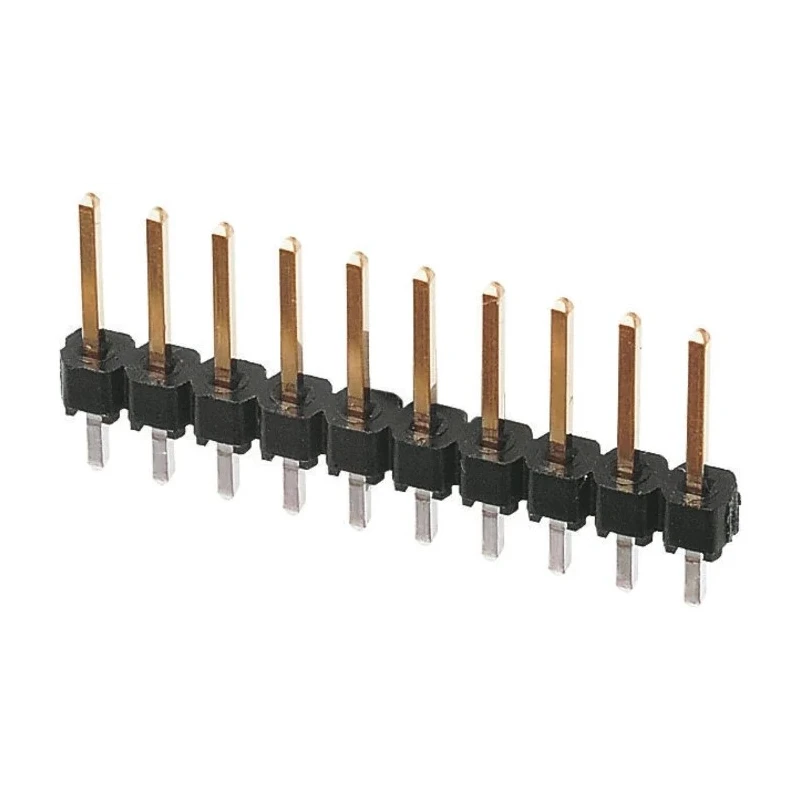

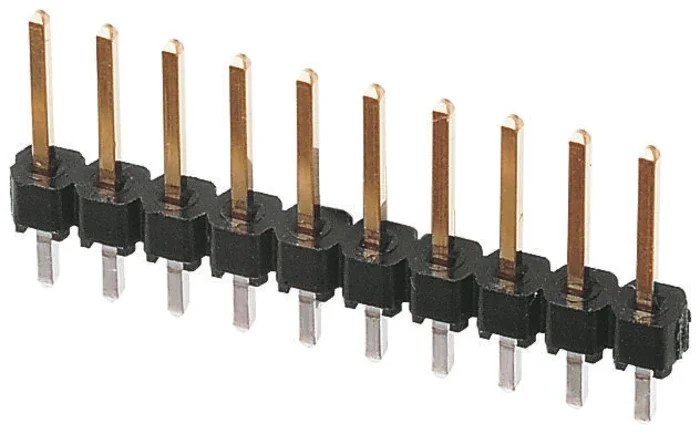

Molex C-Grid III Series Straight Through Hole Pin Header, 4 Contact 2.54 mm Pitch 1 Row Unshrouded 90120-0124
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Allows flexible breakaway design for customizable size.
- High pin retention force ensures reliable mating connection.
- Constructed with brass contacts plated with tin for durability.
- Polyester housing material provides mechanical stability once soldered.
- Rated for 3A current and 350V voltage for reliable performance.
- Suitable for board-to-board and wire-to-board applications.
- Operating temperature range from -55°C to 125°C enables use in diverse environments.
- Unshrouded single row, straight orientation makes for easy integration.
Product Description
Molex 90120-0124 C-Grid III Series straight through hole pin header features 4 contacts with a 2.54 mm pitch arranged in a single row. Designed to meet latest industry requirements, these unshrouded headers facilitate secure wire-to-board connections with high retention force and mechanical stability after soldering.
The housing is made from durable polyester, and the contacts are brass plated with tin to ensure excellent conductivity and long service life. Rated for 3A current and ability to withstand up to 350V, this connector reliably supports diverse electrical applications.
The header pins have a breakaway design allowing cutting to size for customized assembly solutions. With an operating temperature range from -55°C to 125°C, the component is suitable for harsh industrial environments as well as consumer electronics.
This product is commonly used in boards for industrial machinery, computing devices, medical equipment, telecommunications infrastructure, consumer electronics, and automotive safety systems. The unshrouded, straight orientation with solder tail pins (2.9 mm pin length) enables straightforward PCB mounting.
Flexible breakaway design for configuration adjustments. High retention force for stable mating connections. Durable polyester housing ensuring mechanical stability. Brass contacts plated with tin for corrosion resistance.
Rated 3A current, 350V voltage capacity. Temperature range: -55°C to 125°C for varied industrial use. Unshrouded, single row straight pin header for ease of integration. Wire-to-board connection system. Suitable for industrial, medical, computer, and automotive applications.
Simple solder tail pin termination with 2.9 mm tail length. Explore a full range of Molex C-Grid III PCB connectors, designed for professional electronic assembly and high performance across demanding applications at EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 350V, making it suitable for various electrical applications.
It has a current rating of 3A, ensuring reliable performance in electrical connections.
The contacts are arranged with a pitch of 2.54 mm, which is standard for many PCB applications.
The contacts are made of brass and are plated with tin to enhance conductivity and resistance to corrosion.
This pin header utilizes a through hole mounting type for secure PCB integration.
It operates within a temperature range of -55°C to 125°C, allowing use in diverse environments.
This model features 4 contacts, arranged in a single row for efficient connectivity.
The tail pin length is 2.9 mm, designed for simple solder termination on PCBs.
This connector is unshrouded, which facilitates easier access for mating connections.
It is suitable for various applications including industrial machinery, computing devices, medical equipment, and automotive systems.
The housing is made from durable polyester, providing mechanical stability once soldered.
This model features a solder termination type, which is common for PCB connections.
