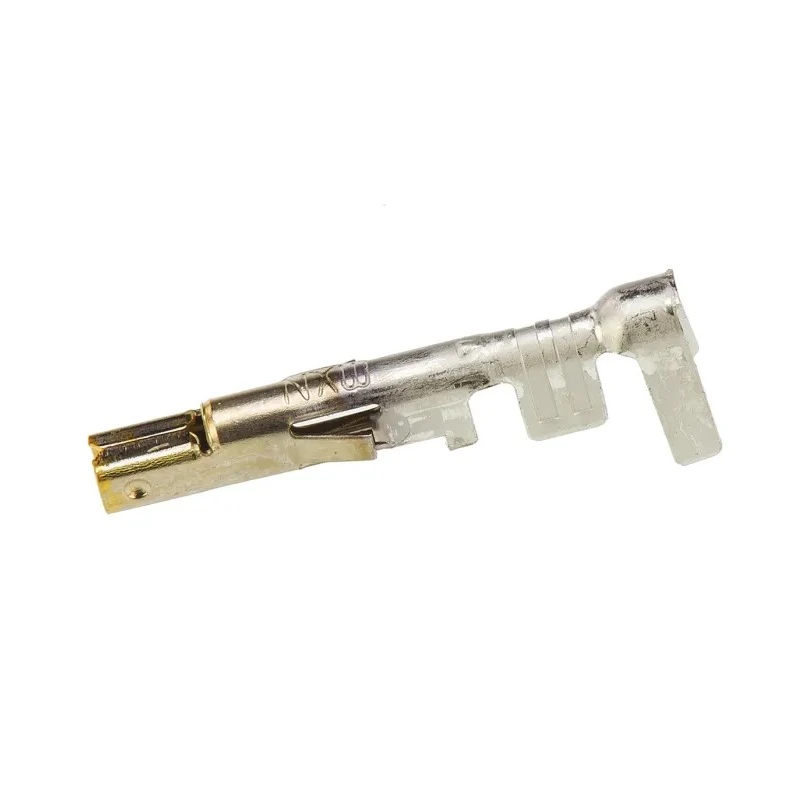

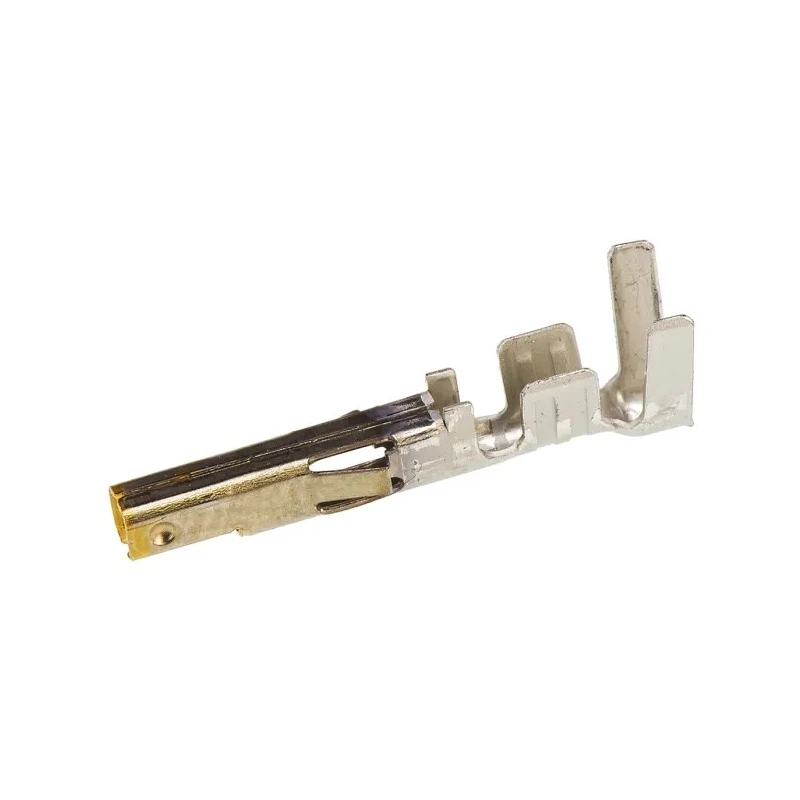

Molex Female Crimp Terminal 16 AWG Wire Size Mini-Fit Series 5556 Model 39-00-0090
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Gold |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
- Conducts current up to 9 amperes ensuring reliable electrical performance.
- Constructed with brass contact material and gold plating for durability.
- Operates within temperature range of -55°C to 125°C.
- Crimp termination with a maximum contact resistance of 10 milliohms.
- Designed for low capacitance of 2 picofarads maintaining signal integrity.
- Manufactured in the United States with high quality standards.
Product Description
Molex 39-00-0090 Female Crimp Terminal is designed specifically for use with Mini-Fit Series 5556 connector housings including Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI. This high-quality crimp terminal supports 16 AWG wire sizes and is rated for 9A current carrying capacity, making it suitable for medium voltage applications up to 600 volts.
The contact is made from brass and features a gold plating which ensures excellent corrosion resistance and long-term electrical performance. It offers a maximum contact resistance of 10 milliohms and a capacitance of 2 picofarads to maintain high-integrity signals essential in sensitive equipment.
Designed for reliable and secure connections, the terminal incorporates multiple points of contact along with locking tangs which firmly secure the terminal within connector housings. Its operating temperature range extends from -55°C to 125°C, allowing use in diverse industrial, automotive, communication, and medical equipment applications.
This product is manufactured in the United States to meet stringent quality standards ensuring dependability in demanding environments. Its versatility allows it to be used in automotive manufacturing plants, industrial automation, communication and networking systems, and other applications requiring secure connector solutions.
Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI housings. Gold-plated brass contact material for durable corrosion resistance. Supports wire size 16 AWG with current rating of 9A. Low contact resistance of 10mΩ for efficient conductivity.
Operating temperature range from -55°C to 125°C. Ensures high signal integrity with capacitance of 2 pF. Suitable for medium-voltage applications up to 600V. Ideal for automotive, communication, and industrial applications.
Explore our Electronics Components category at EnvMart for a wide selection of connector solutions suitable for industrial and commercial uses.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex Female Crimp Terminal has a current carrying capacity of 9 amperes, making it suitable for medium voltage applications.
This model supports 16 AWG wire sizes, accommodating a maximum wire size of 1.3 mm².
It is designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The maximum contact resistance is 10 milliohms, ensuring efficient conductivity.
The terminal is constructed with brass contact material and features gold plating for enhanced corrosion resistance.
It operates within a temperature range of -55°C to 125°C, allowing for use in various environments.
This model has a capacitance of 2 picofarads, which helps maintain high signal integrity.
It utilizes a crimp termination method, which ensures a secure connection.
The Molex Female Crimp Terminal is manufactured in the United States to meet high quality standards.
It is suitable for automotive, communication, and industrial applications requiring secure connector solutions.
This crimp terminal is part of the Mini-Fit Series 5556.
It incorporates multiple points of contact along with locking tangs that firmly secure the terminal within connector housings.
