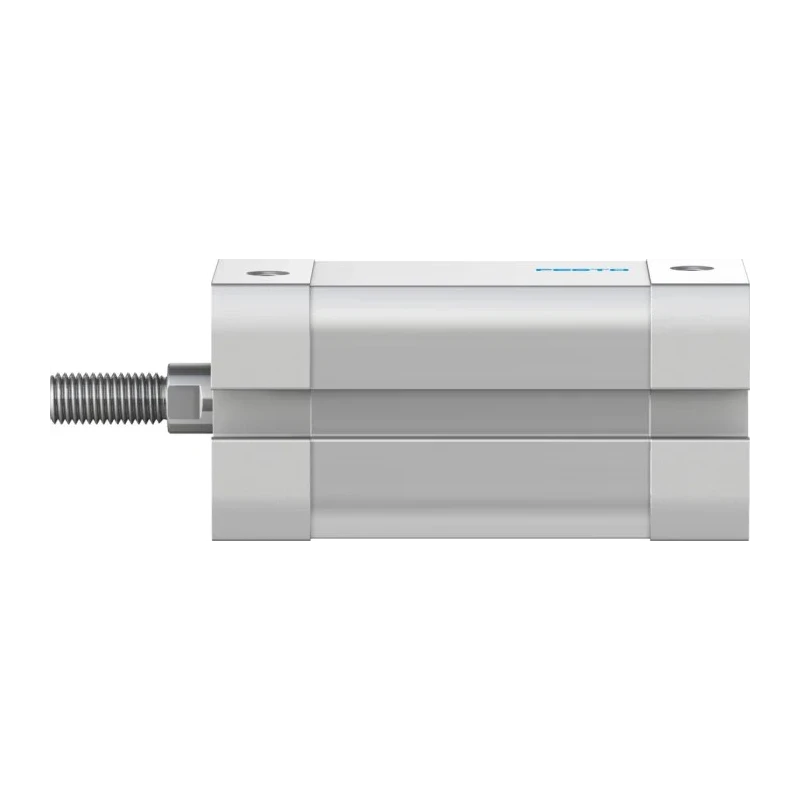

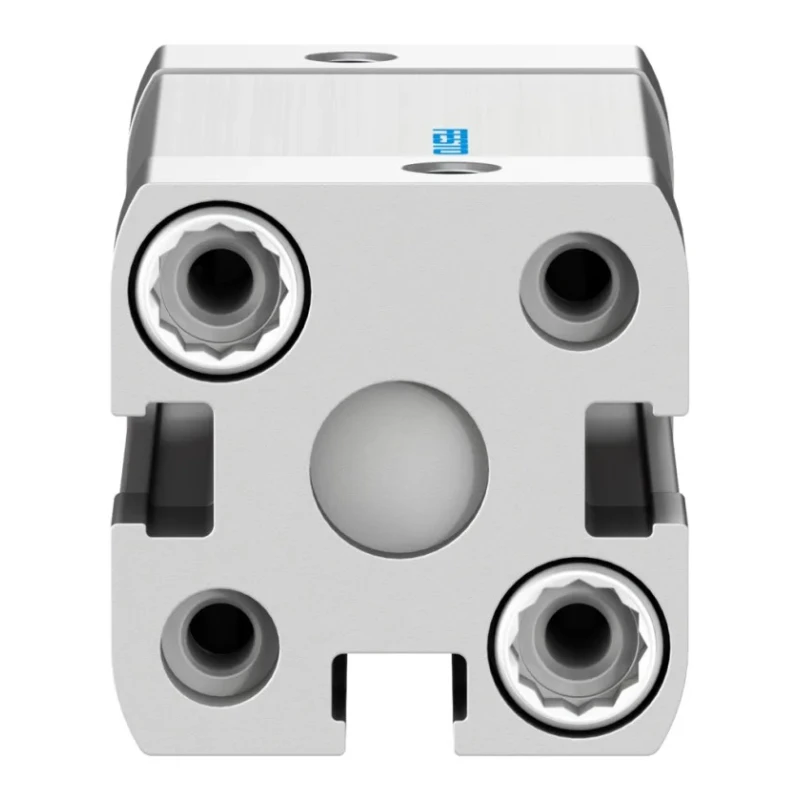

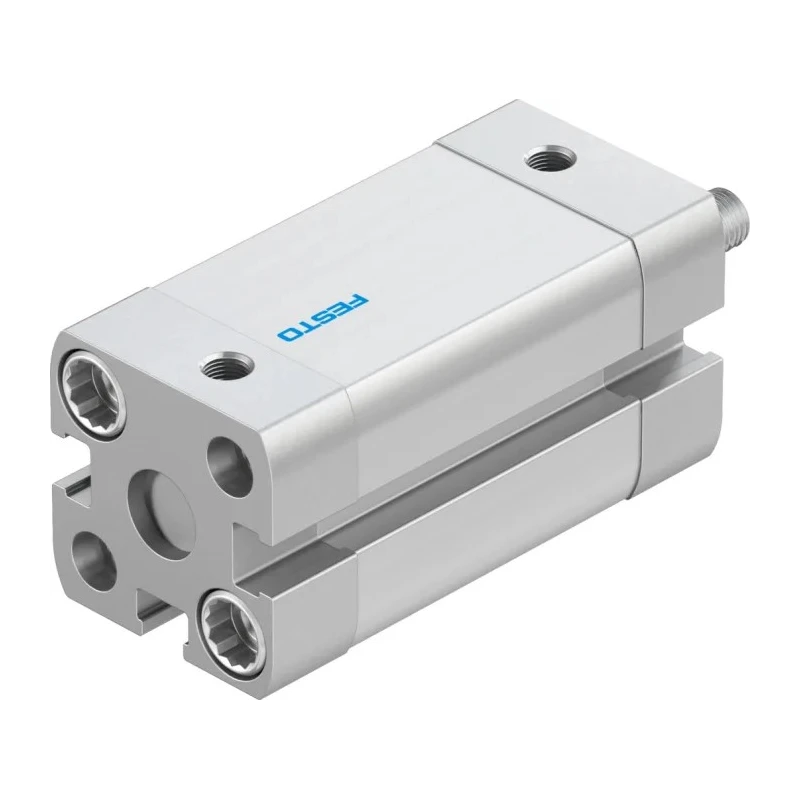

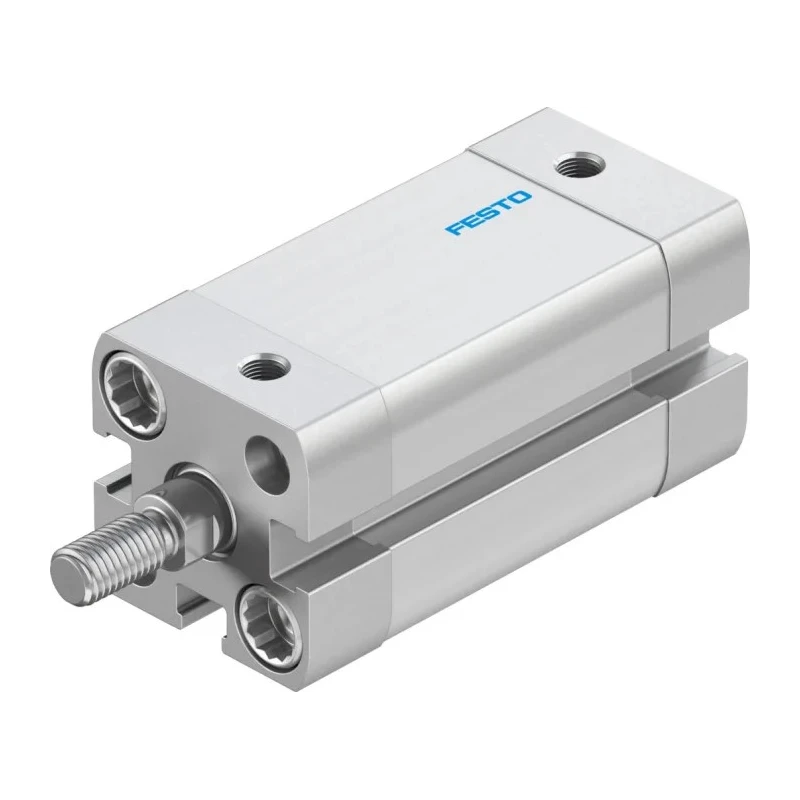

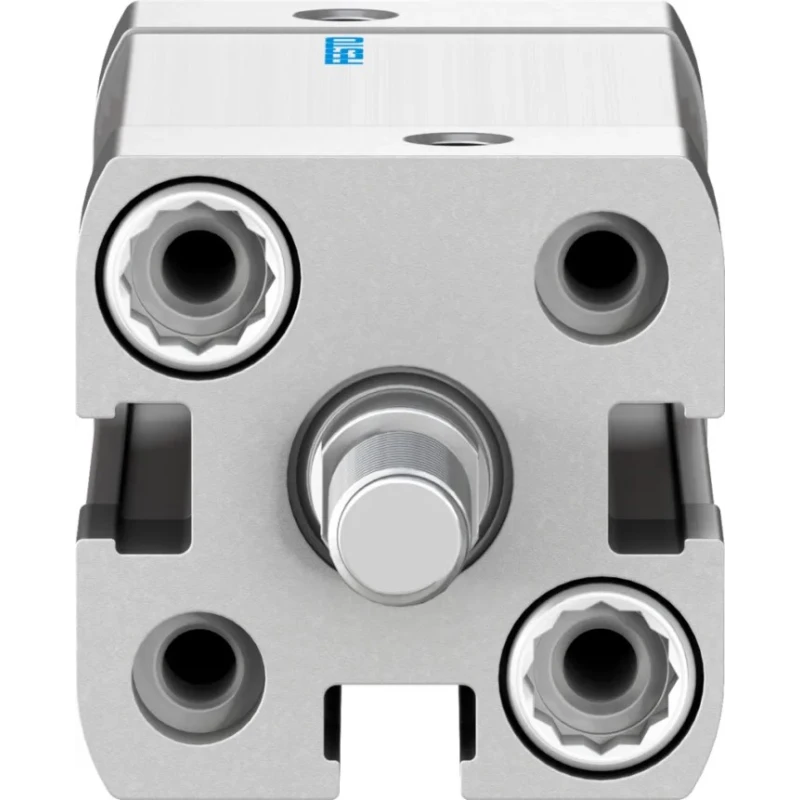

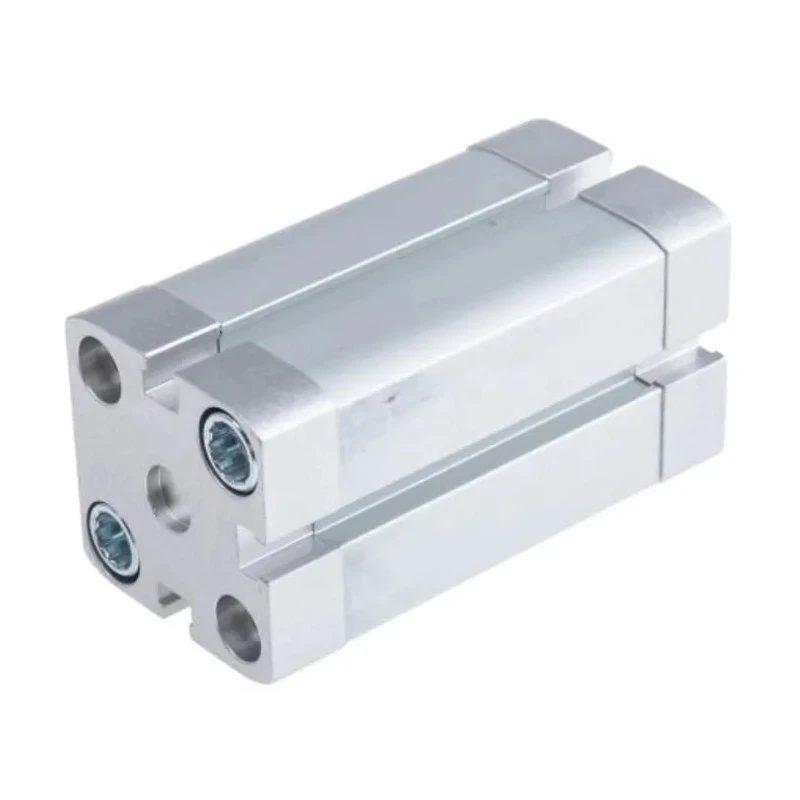

Festo Pneumatic Cylinder ADN Series 16mm Bore, 25mm Stroke, Double Acting, Aluminium Body ADN-16-25-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 29mm |
| Length | 64.7mm |
| Model | ADN-16-25-A-P-A |
| Gross Weight | 110g |
| Width | 29mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 25mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
| The cylinder is designed for compressed air in accordance with ISO 8573-1 | 2010 [7:4:4], with lubricated operation possible |
Key Features
- Double acting piston operation ensures efficient motion control.
- 16mm bore diameter supports robust pneumatic performance.
- Constructed from durable aluminium for lightweight strength.
- Stroke length of 25mm offers compact actuation.
- Through hole mount type allows versatile installation options.
- Elastic air cushioning minimizes impact and wear.
- Standard M5 port connection for easy pneumatic fitting integration.
- Operates reliably from -20°C to 80°C suitable for diverse environments.
Product Description
Festo ADN-16-25-A-P-A Pneumatic Cylinder features a 16mm bore with 25mm stroke length in a compact aluminium body, supporting double acting operation for efficient movement in pneumatic systems.
Designed with through hole mounting and elastic air cushioning, this cylinder reduces wear and ensures smooth operation within temperatures ranging from -20°C to 80°C. It is engineered for use with compressed air conforming to ISO 8573-1:2010 standards, including lubricated operation possibilities.
The M5 port connection standardizes integration with pneumatic fittings, while the ISO 21287 and RoHS certifications guarantee high quality and environmental compliance. With a weight of approximately 110 grams and precise dimensions of 29 x 29 x 64.7 mm, the cylinder seamlessly fits in automation, robotics, packaging machinery, material handling, and sensor integration applications.
Double acting piston operation ensures efficient motion control. 16mm bore diameter supports robust pneumatic performance. Constructed from durable aluminium for lightweight strength. Stroke length of 25mm offers compact actuation.
Through hole mount type allows versatile installation options. Elastic air cushioning minimizes impact and wear. Standard M5 port connection for easy pneumatic fitting integration. Operates reliably from -20°C to 80°C suitable for diverse environments.
Complies with ISO 21287 and RoHS standards for quality assurance. Compact dimensions of 29mm x 29mm x 64.7mm ideal for space-constrained applications.
This pneumatic cylinder is ideal for automated assembly lines, precise robotics movement, packaging equipment, and any application requiring reliable, compact double acting pneumatic actuation within industrial, manufacturing, and laboratory environments.
Explore more Pneumatic Cylinders and actuators on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this pneumatic cylinder is 16mm, supporting robust pneumatic performance.
The stroke length of this model is 25mm, providing compact actuation capabilities.
The maximum operating pressure for this pneumatic cylinder is 10 bar.
The dimensions of this model are 29mm in width, 29mm in height, and 64.7mm in length.
This unit features a through hole mount type, allowing for versatile installation options.
It operates reliably within a temperature range of -20°C to 80°C, suitable for diverse environments.
This pneumatic cylinder uses air cushioning with cushioning rings to minimize impact and wear.
The gross weight of this pneumatic cylinder is approximately 110 grams.
It complies with ISO 21287 and RoHS standards, ensuring quality assurance and environmental compliance.
This model operates as a double acting cylinder, providing efficient motion control.
The piston rod thread size for this pneumatic cylinder is M5.
It is designed for use with compressed air in accordance with ISO 8573-1:2010 standards, including lubricated operation possibilities.
