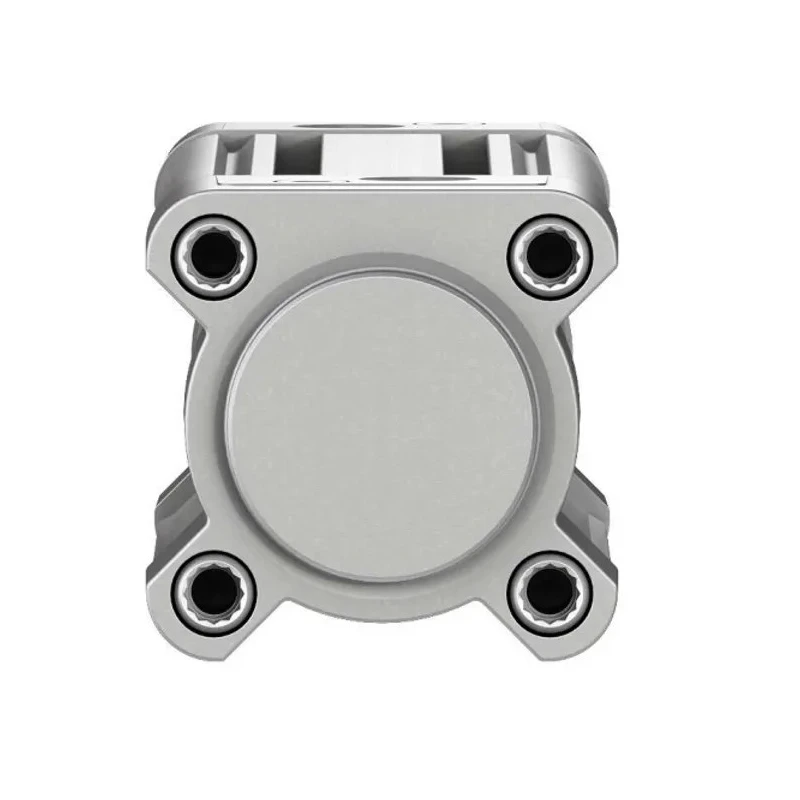

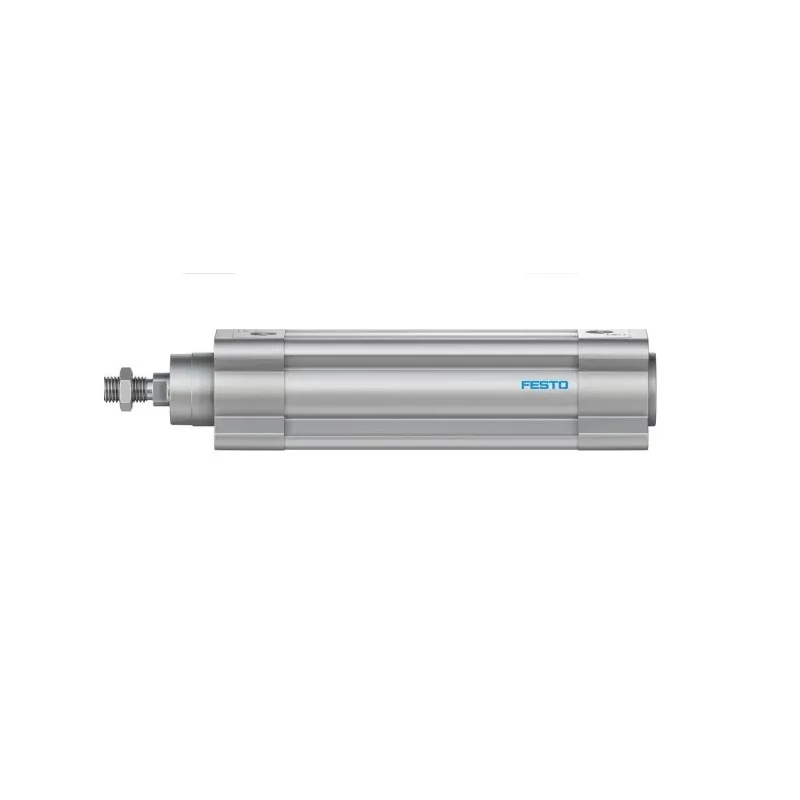

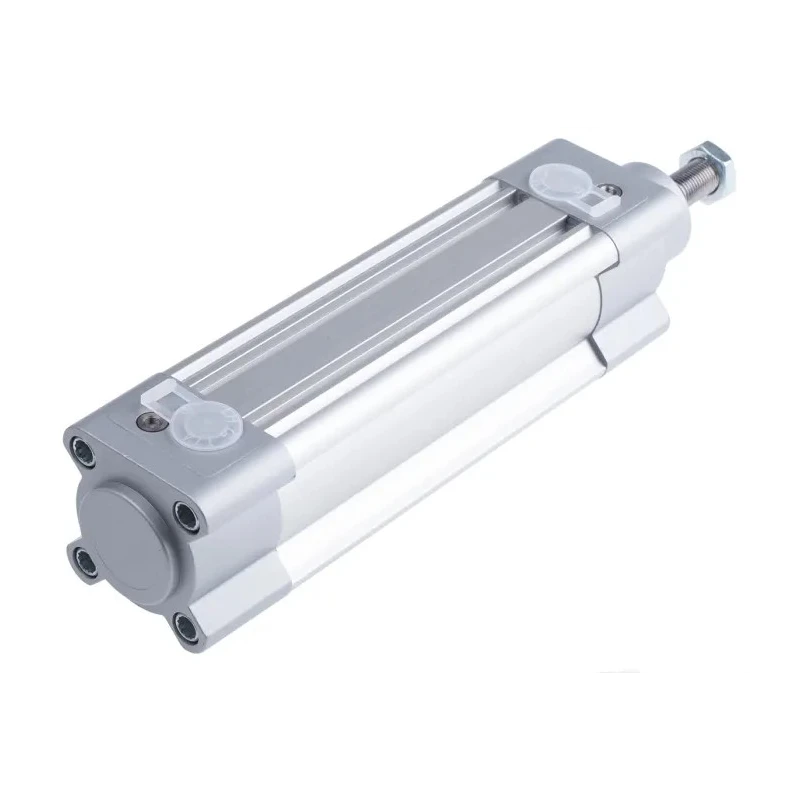

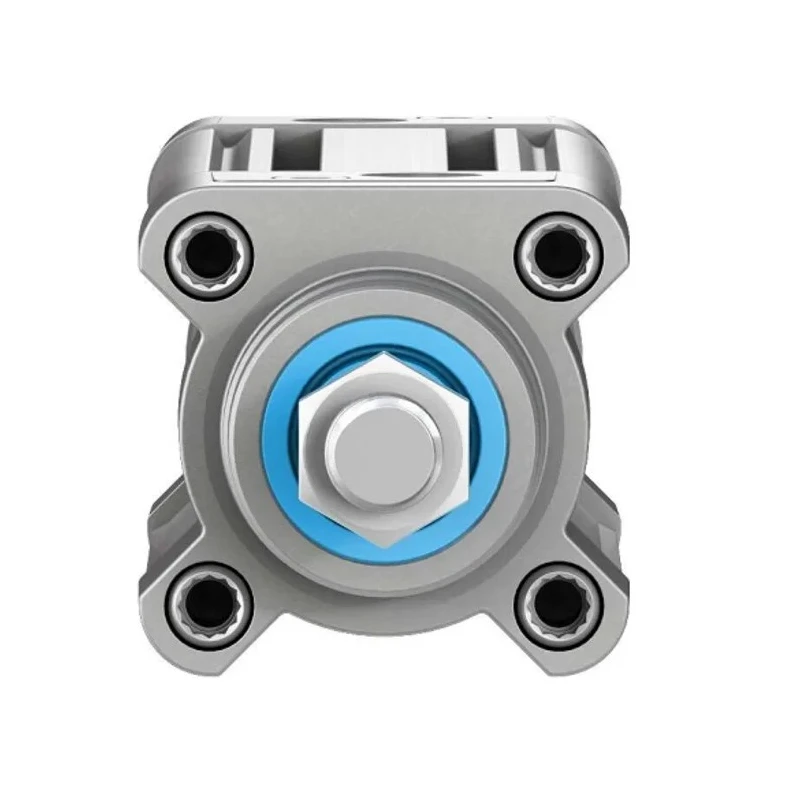

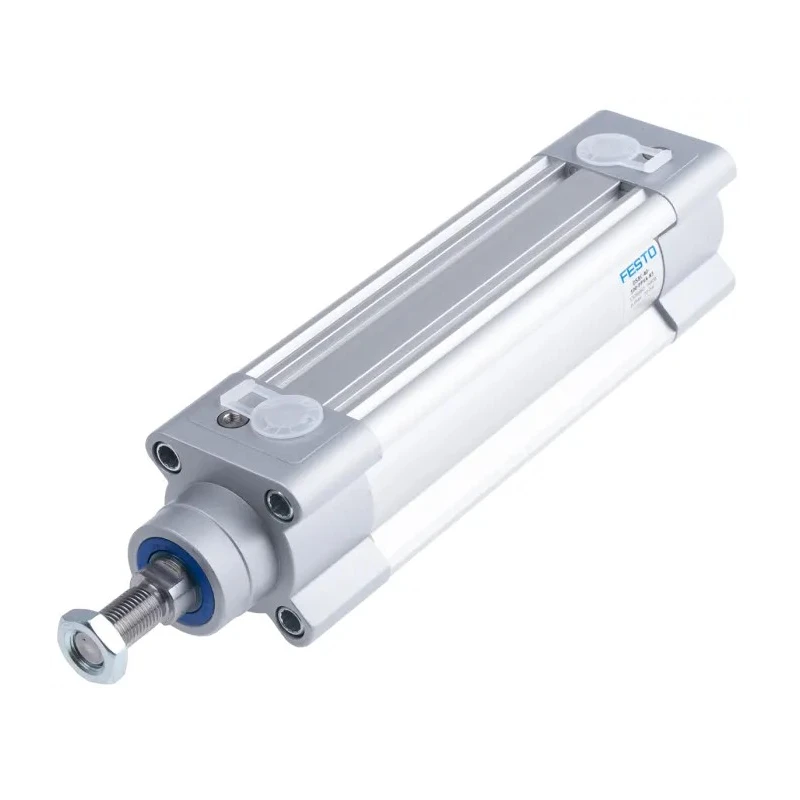

Festo Pneumatic Cylinder 40mm Bore, 100mm Stroke, Double Acting, Aluminium Body, DSBC-40-100-PPVA-N3

Festo DSBC-40-100-PPVA-N3 is a precision industrial pneumatic cylinder featuring a 40mm bore and a 100mm stroke, making it suitable for a range of medium-duty to heavy-duty load movement tasks. The double acting configuration allows for controlled movement in both directions by alternating airflow to extend and retract the piston efficiently within automated and manual pneumatic systems.

Robust aluminium body construction ensures durability. Double acting configuration enables precise control in both directions. Operating pressure up to 12 bar for versatile applications. Wide working temperature range from -20°C to 80°C for challenging environments.

Polyurethane seals provide effective air leakage prevention. Pneumatic air cushions on both ends help absorb impact and extend service life. High alloy steel piston rod is corrosion and impact resistant. Compatible with proximity sensors for automation.

Standardized to ISO 15552 and RoHS compliant.

This cylinder utilizes air cushioning at both ends, helping to prevent damage and reduce wear, particularly when handling dynamic loads. The 1/4 in G piston rod thread and male rod type facilitate easy integration with a wide range of connectors and actuators. Built to ISO 15552 standards, the DSBC series delivers industry-standard performance, and RoHS compliance ensures environmental and regulatory adherence.

A gross weight of 740g and compact body dimensions (length 261.9mm, width 54mm, height 54mm) support installation on equipment without excessive strain. The corrosion-resistant, high alloy steel piston rod contributes to extended cylinder service life. Polyurethane seals improve reliability by minimizing air leaks and maintaining consistent performance.

Applications for this Festo pneumatic cylinder include robotics, automation systems, construction industry machinery, and automatic doors. It is also suitable for use in industrial manufacturing, material handling, water processing setups, and more where precise and reliable linear motion is needed.

This product is best suited for demanding environments and processes requiring repeatability, resistance to challenging temperatures, and compatibility with automated control systems.
