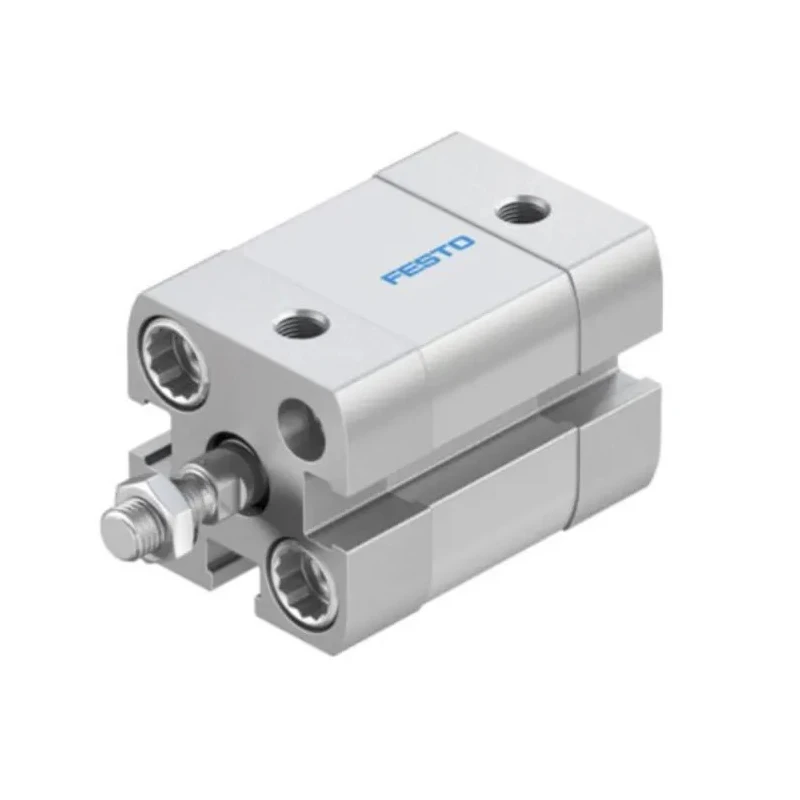

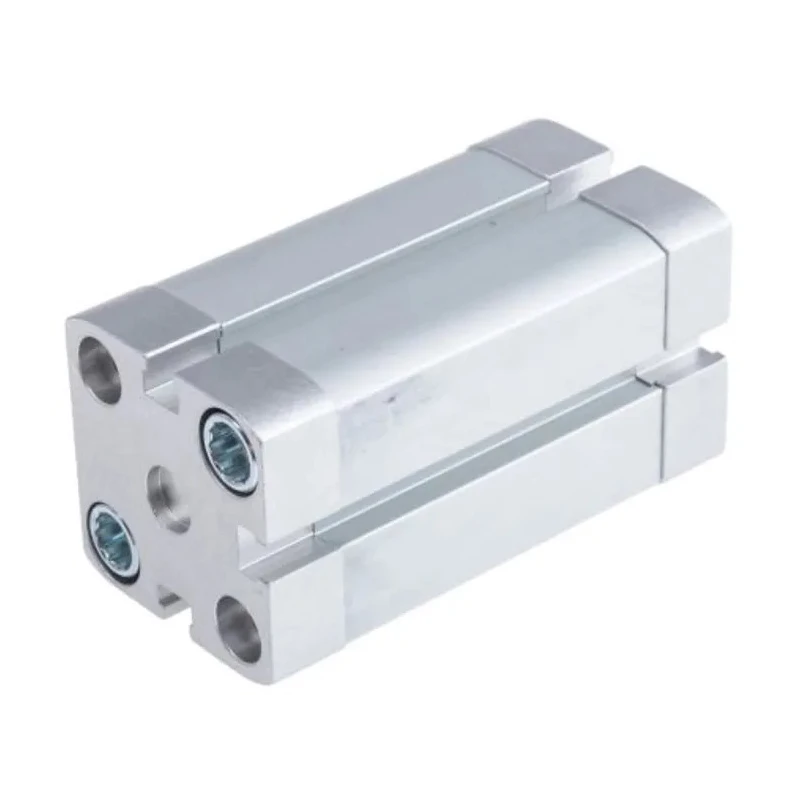

Festo Pneumatic Cylinder ADN-12-30-A-P-A 12mm Bore 30mm Stroke Double Acting Aluminium Body Turkey
Specifications
| Country of Origin | Turkey |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 27.5mm |
| Length | 69.2mm |
| Model | ADN-12-30-A-P-A |
| Width | 27.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 30mm |
| Bore Diameter | 12mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
Key Features
- This pneumatic cylinder conforms with ISO 21287 standard and RoHS compliance.
- It operates with a maximum pressure of 10 bar and temperature range from -20°C to 80°C.
- The cylinder has through hole mount type and utilizes air cushioning with cushioning rings for smooth operation.
- Designed with a single male piston rod of M5 thread size for versatile mounting.
- Its compact dimensions are 69.2mm length, 27.5mm height, and 27.5mm width, suitable for confined spaces.
- The double acting operation allows pneumatic actuation in both extend and retract strokes.
- Flexible polymer end cushioning improves noise reduction and machine longevity.
- Slots along the body enable flush mounting of proximity sensors for position detection.
Product Description
Festo ADN-12-30-A-P-A Pneumatic Cylinder is a precision-engineered double acting pneumatic actuator with a 12mm bore and 30mm stroke, constructed with an aluminium body in Turkey. This compact actuator is part of the ADN series designed to deliver up to 50% size reduction compared to standard pneumatic cylinders, enabling installation in tight and confined industrial spaces.
Compliant with ISO 21287 standards and RoHS directives, this cylinder operates with flexible polymer end cushioning and air cushioning rings that minimize noise and vibration, enhancing service life and operational reliability. The piston rod is a single male type with M5 thread size, which facilitates secure and flexible mounting options.
The ADN series cylinder functions via double acting operation, where compressed air is applied to both extend and retract the piston rod, producing a reliable linear motion controlled precisely by the integrated slots for proximity sensors, allowing non-contact position detection.
Its rugged aluminium body ensures lightweight yet durable performance, suitable for use in pneumatic, manufacturing automation, HVAC, and fluid power tooling environments.
Technical dimensions include a 69.2mm length, 27.5mm height, and 27.5mm width, making it ideal for installations where space conservation is crucial. It supports operating pressures up to 10 bar and can function within temperatures ranging from -20°C to 80°C.
ISO 21287 certified for quality and interchangeability. Compact size optimized for space-saving industrial applications. Double acting air operation ensures precise piston control. Polymer cushioning for noise reduction and longer service life.
Flush mounting slots for proximity sensors enable accurate position feedback. Suitable for fluid power tools, automation, and industrial pneumatic systems.
Choose Festo ADN series pneumatic cylinders for reliable industrial automation and pneumatic actuation solutions. Explore related Pneumatic Cylinders and actuators in EnvMart’s Hydraulic & Pneumatic Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic cylinder is 10 bar.
This model has dimensions of 69.2mm in length, 27.5mm in height, and 27.5mm in width.
The stroke length of this pneumatic cylinder is 30mm.
The bore diameter of the Festo ADN-12-30-A-P-A is 12mm.
It utilizes air cushioning and cushioning rings for smooth operation and noise reduction.
The operating temperature range is from -20°C to 80°C.
It features a through hole mount type, allowing for versatile installation options.
The piston rod has a male thread size of M5.
Yes, it conforms to ISO 21287 standards and is RoHS compliant.
This pneumatic cylinder is suitable for use in pneumatic, manufacturing automation, HVAC, and fluid power tooling environments.
It belongs to the ADN series, which is designed for compact and efficient operation.
The double acting operation allows compressed air to be applied for both extending and retracting the piston rod, providing reliable linear motion.
