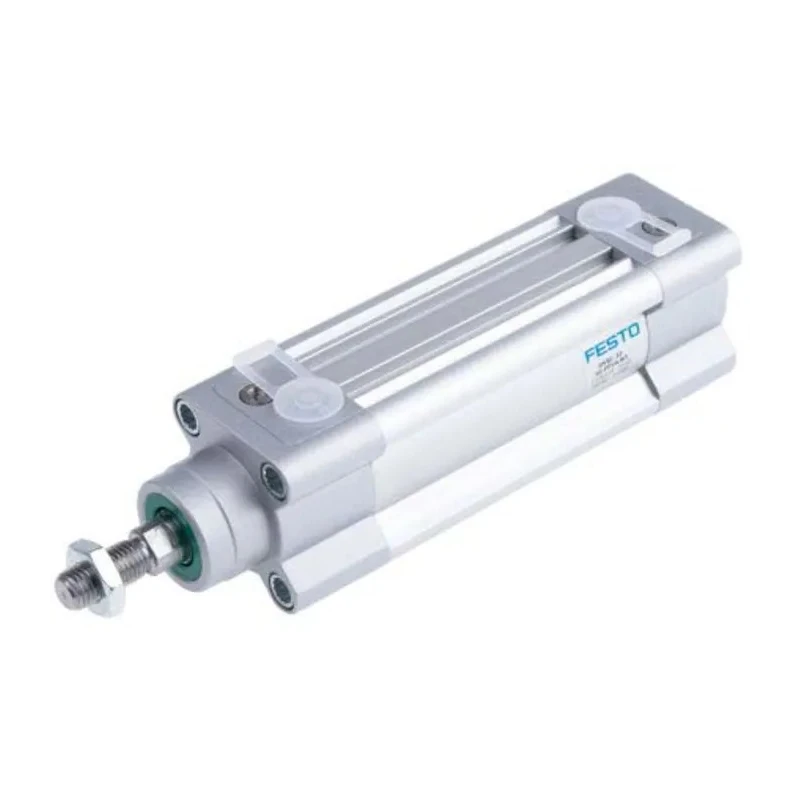

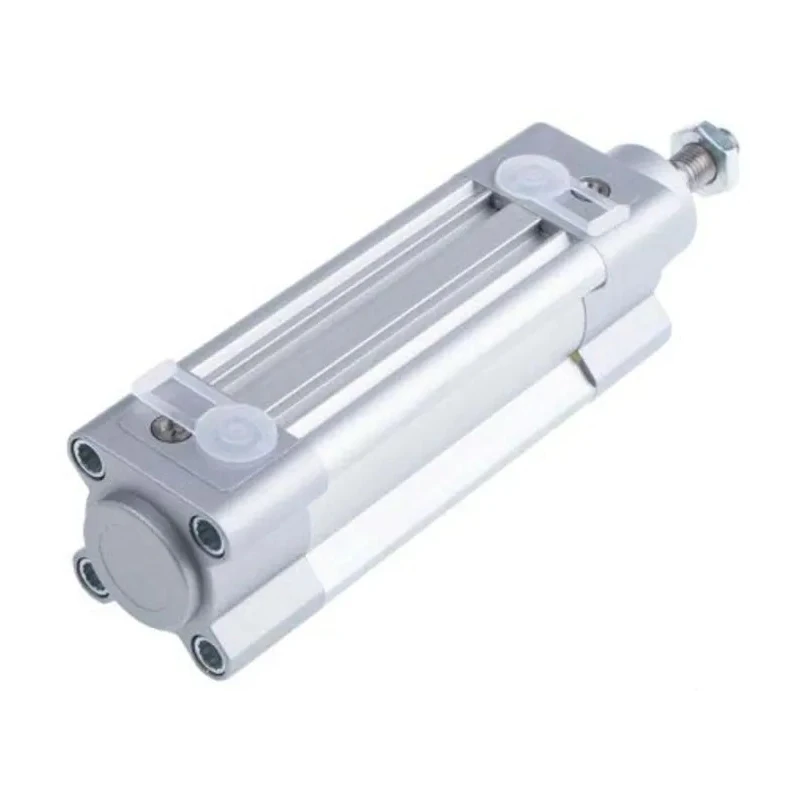

Festo Pneumatic Piston Rod Cylinder Double Acting 32mm Bore 30mm Stroke Aluminium Body DSBC-32-30-PPSA-N3
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 12 bar |
| Height | 45mm |
| Length | 175.1mm |
| Model | DSBC-32-30-PPSA-N3 |
| Gross Weight | 465g |
| Width | 45mm |
| Series | DSBC |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 30mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 15552, ISO 8573-1:2010, RoHS |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 1/8 in G |
| Standards/Approvals ISO 15552, ISO 8573-1 | 2010, RoHS |
Key Features
- The cylinder complies with ISO 15552 standards for interchangeability.
- It has self-adjusting air cushioning for smooth end-positioning without manual adjustments.
- The high-alloy steel piston rod ensures excellent performance and long service life.
- Dual connection ports allow compressed air for advancing and retracting the piston rod linearly.
- It includes slots for flush mounting proximity sensors for contactless position detection.
- The cylinder supports adjustable end cushioning to reduce noise and vibration.
- The operating pressure is up to 12 bar with temperature range from -20°C to 80°C.
- Its compact dimensions and lightweight design support versatile industrial applications.
Product Description
Festo DSBC-32-30-PPSA-N3 is a pneumatic piston rod cylinder designed for industrial fluid power applications. It features double acting operation with a 32mm bore and 30mm stroke length enclosed in a durable aluminium body, providing reliability and efficiency for automated movements.
This DSBC series cylinder includes self-adjusting pneumatic cushioning at both ends, which smooths the piston rod's travel into end positions dynamically, even with varying load conditions. This cushioning system eliminates the need for manual adjustments, saving setup time and reducing maintenance effort.
The high-alloy steel piston rod is engineered for excellent running performance while maintaining a low overall weight, contributing to a prolonged service life. The cylinder body slots support proximity sensors for contactless position monitoring, enhancing process control accuracy in automation systems.
With dual ports for compressed air, the cylinder performs both advancement and retraction motions linearly. It complies with ISO 15552 standards, allowing it to be mounted in any orientation using standard metric mounting dimensions. This makes installation flexible and compatible with a wide range of pneumatic systems.
The cylinder operates effectively within a maximum pressure of 12 bar and temperature range from -20°C to 80°C, suitable for various industrial environments. Adjustable end cushioning reduces noise and vibration, making it ideal for settings where quiet operation is important.
The cylinder conforms to ISO 15552 and ISO 8573-1:2010, and RoHS standards. It features an aluminium body with a single, male gender piston rod with 1/8 in G thread size. Compact dimensions: length 175.1mm, height 45mm, width 45mm, and a lightweight design weighing 465 grams.
This Pneumatic Piston Rod Cylinder is widely used in industrial automation, mechanical machinery, manufacturing lines, and fluid power systems, providing reliable and precise linear movement control.
Explore the wide range of pneumatic products available for enhancing your industrial processes with Festo solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic piston rod cylinder is 12 bar.
This model has dimensions of 175.1mm in length, 45mm in height, and 45mm in width.
The stroke length of this pneumatic cylinder is 30mm.
The body of the cylinder is made from aluminium, and it features a high-alloy steel piston rod.
The operating temperature range for this cylinder is from -20°C to 80°C.
It features self-adjusting air cushioning at both ends, which smooths the piston rod's travel into end positions dynamically, eliminating the need for manual adjustments.
This model complies with ISO 15552, ISO 8573-1:2010, and RoHS standards.
This pneumatic cylinder operates with a double acting action type.
The weight of this model is 465 grams.
Yes, it complies with ISO 15552 standards, allowing it to be mounted in any orientation using standard metric mounting dimensions.
It features a single piston rod with a male gender and a thread size of 1/8 in G.
This cylinder is widely used in industrial automation, mechanical machinery, manufacturing lines, and fluid power systems for precise linear movement control.
