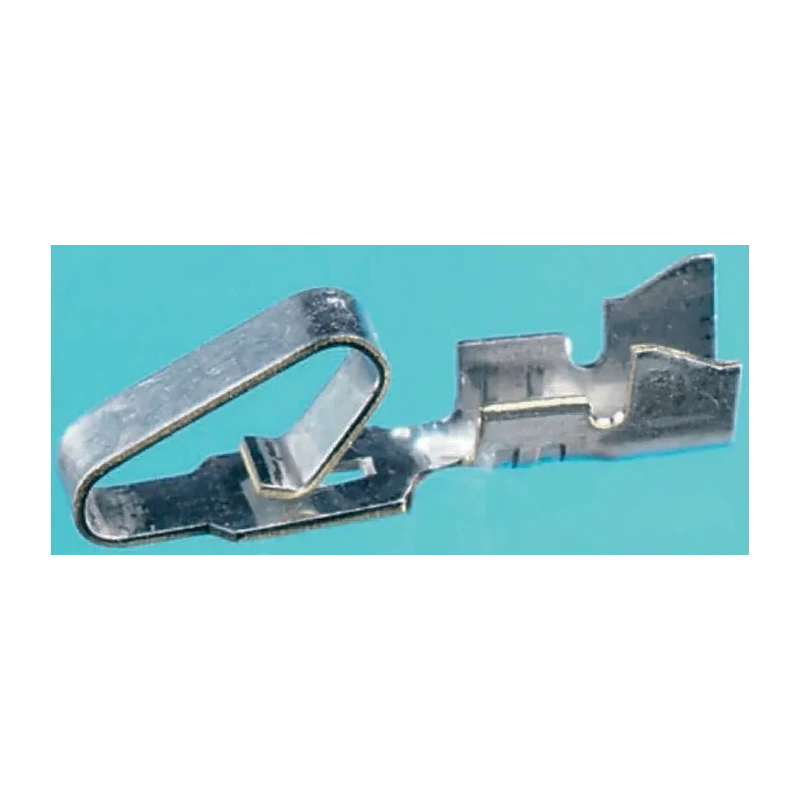

Molex 2478 Series Female Crimp Terminal Brass Gold Plated Contact 5A 24-18 AWG 08-55-0104

Free Delivery in India | Lowest Global Shipping Charges

Molex 2478 Series Female Crimp Terminal Brass Gold Plated Contact 5A 24-18 AWG 08-55-0104

Name: Molex 2478 Series Female Crimp Terminal Brass Gold Plated Contact 5A 24-18 AWG 08-55-0104
Brand: Molex
SKU: 206373
Price: 0.2 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	5A
Gender	Female
Contact Material	Brass
Series	2478
Termination Type	Crimp
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
For Use With	KK 396 Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	6mΩ

Key Features

Durable brass contact material enhances conductivity and strength.
Gold plating on contact ensures corrosion resistance and low contact resistance.
Supports current rating up to 5 amperes for efficient power handling.
Compatible with KK 396 connector housing for easy integration.
Operating temperature range from 0°C to 50°C suitable for various environments.
Dual cantilever design provides spring-like contact ensuring stable electrical connection.
Locking tang prevents accidental terminal back out for secure assembly.
Suitable for automotive, consumer electronics, medical, networking, and communications applications.

Product Description

The Molex 2478 Series Female Crimp Terminal model 08-55-0104 offers a high-quality connector contact solution suitable for 24 AWG minimum to 18 AWG maximum wire sizes, with a current rating of 5A. This terminal features a durable brass contact material plated with gold to ensure excellent conductivity and corrosion resistance. Its dual cantilever design maintains consistent contact pressure on the male pin header via a spring-like action, providing reliable connectivity in demanding industrial and commercial applications.

Designed for use with KK 396 connector housings, this crimp terminal supports a maximum contact resistance of 6 milliohms and withstands operating temperatures from 0°C to 50°C. The locking tang mechanism prevents terminal disengagement once securely loaded in the housing, enhancing safety and durability.

This terminal is extensively used in automotive industry, consumer electronics, data and computing systems, medical devices, communications infrastructure, and networking equipment, making it a versatile component for electrical and electronic assemblies.

Durable brass material with gold plating for long-lasting performance. Dual cantilever spring contact design ensures reliable connection. Rated current of 5 amperes for power efficiency. Compatible with KK 396 connector housing series.

Operating temperature range from 0°C to 50°C. Locking tang prevents terminal withdrawal for secure assembly. Low maximum contact resistance of 6 milliohms. Suitable for a broad range of industrial and commercial uses.

Choose Molex 2478 Series Female Crimp Terminal for robust, precise, and dependable wiring solutions. Explore more products in the Electronics & Electricals category for your industrial and technical needs on EnvMart.
