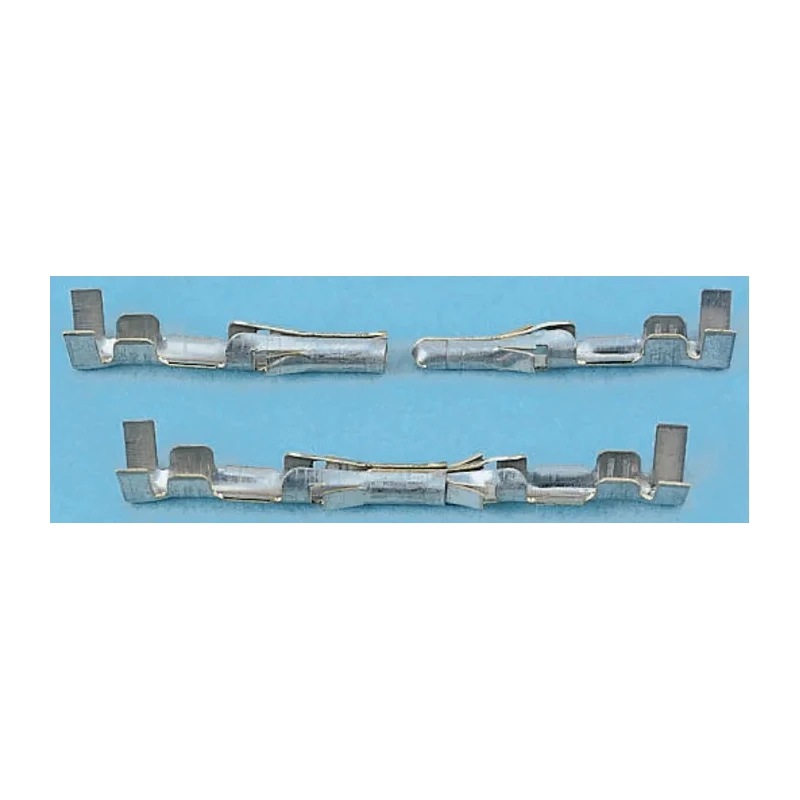

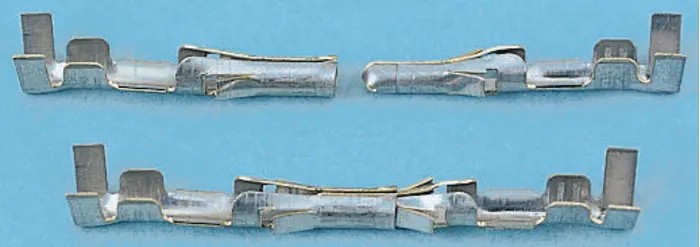

Molex 1189 Series Female Crimp Terminal, Gold Plated Brass Contact, Crimp Type, 20 AWG Min to 14 AWG Max 02-09-5106

Molex 02-09-5106 is a female crimp terminal from the 1189 series, constructed with brass contact material featuring gold plating to provide enhanced electrical conductivity and corrosion resistance. It supports wire sizes from 20 AWG minimum to 14 AWG maximum, making it suitable for a broad range of electrical wiring applications.

This crimp terminal is designed for use with the standard 0.093 inch connector housings, allowing for versatility and compatibility with existing connector systems. The crimp termination type ensures a secure and stable mechanical as well as electrical connection, accommodating industrial and commercial applications.

Operating temperature ranges from -40°C to a maximum of 105°C enable this component to function reliably in various environmental conditions. The maximum contact resistance of 10 milliohms ensures efficient signal transmission with minimal loss.

The 2.36 mm diameter pin and receptacle crimp terminals feature industry standard sizing, compatible with 5.03 mm pitch Standard 0.093 inch and 6.71 mm pitch 3191 series connector housings. This flexibility allows for use in both plug and receptacle housings as needed for design flexibility.

This terminal is typically employed in consumer electronics, communications equipment, networking devices, and portable devices where dependable electrical connections are critical.

Manufactured in the United States, the product meets stringent quality standards and is supplied in a bag packaging format suited for ready insertion into machinery, enhancing production efficiency.

Constructed of brass contact material with gold plating for reliable electrical connection. Compatible with standard 0.093 inch connector housings for flexible application. Supports crimp termination type ensuring secure mechanical and electrical connection.

Operates reliably under temperatures from -40°C up to 105°C for industrial environments. Offers maximum contact resistance of 10 milliohms for efficient signal transmission. Designed to fit into 2.36 mm diameter pin and receptacle crimp terminals with standard industry pitch.

Ideal for consumer electronics, communications, networking, and portable devices applications. Manufactured in the United States, ensuring high-quality standards. Explore more high-quality crimp terminals and connectors at EnvMart for your industrial, manufacturing, and electronics needs.
