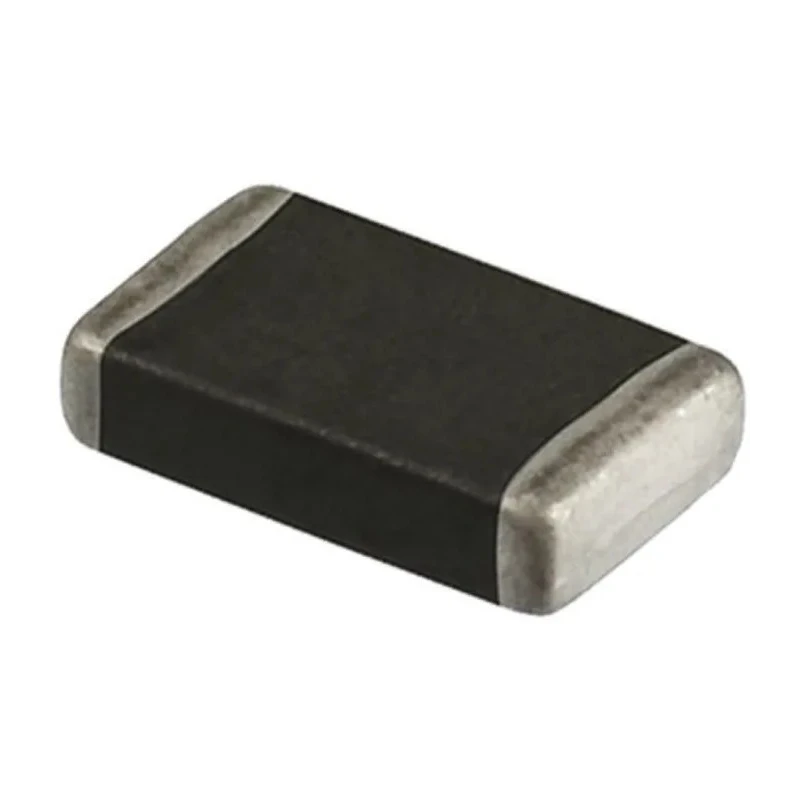

Wurth Elektronik WE-VS Surface Mount Varistor 1.18 nF 1 A Clamping 20 V 0805 82550060
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| THICKNESS | 1.25mm |
| Length | 2mm |
| Model | 82550060 |
| Depth | 1.25mm |
| Packaging | Reel |
| Mount Type | Surface |
| Series | WE-VS |
| Energy Rating | 0.1J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 1.18nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 9V dc |
| Standards/Approvals | RoHS, IEC61000-4-5 |
| Package/Case | 0805 |
| Termination Style | Silver/Nickel/Tin |
| Lead Pitch | 0.3mm |
| Maximum AC Voltage | 6V ac |
| Clamping Voltage VC | 20V |
| Clamping Current | 1A |
| Maximum Surge Current | 80A |
| Varistor Voltage | 12 V |
Key Features
- The varistor voltage is rated at 12 V to protect circuits effectively.
- Packaging is supplied in reels for efficient surface mount assembly.
- The component has a compact 0805 package size with dimensions of 2mm length and 1.25mm thickness and depth.
- Operates reliably from -40 °C up to 85 °C, suitable for various industrial applications.
- Termination style uses Silver/Nickel/Tin for excellent solderability and RoHS compliance.
- Energy rating of 0.1J provides robust absorption capacity against transient voltage spikes.
- Meets IEC61000-4-5 standards for surge and burst protection and IEC61000-4-2 for ESD robustness.
Product Description
Wurth Elektronik 82550060 WE-VS Series Surface Mount Varistor features a capacitance of 1.18 nF with a clamping current of 1 A at a clamping voltage of 20 V, designed specifically for effective electronic surge protection in sensitive circuits. Packaged in a standard 0805 case size, this varistor measures 2 mm in length with 1.25 mm thickness and depth, providing a compact footprint suitable for high-density PCB assemblies.
The device operates efficiently within a temperature range of -40 °C to 85 °C, making it suitable for diverse industrial, electronic, and commercial applications requiring reliable transient voltage suppression. Its Silver/Nickel/Tin termination ensures excellent soldering compatibility and long-term mechanical stability.
This varistor is packaged in reels, facilitating automated assembly processes in manufacturing environments. With an energy rating of 0.1J and a maximum surge current capacity of 80 A, it provides durable transient voltage absorption. Compliance with RoHS directives and IEC standards including IEC61000-4-5 for surge protection and IEC61000-4-2 for electrostatic discharge protection underlines its quality and reliability.
Typical industrial uses include surge suppression in power supply circuits, protection of sensitive semiconductor devices, and safeguarding control electronics in industrial and commercial environments.
The varistor voltage is rated at 12 V for precise circuit protection. Reel packaging supports efficient surface mount assembly. Compact 0805 case size for high-density PCB layouts. Operating temperature range from -40 °C to +85 °C.
Silver/Nickel/Tin termination for reliable soldering. Energy rating 0.1J capable of absorbing transient surges. Standards compliant to RoHS, IEC61000-4-5, and IEC61000-4-2. For more Varistor and surge protection components, explore the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this varistor is 1.18 nF.
The clamping voltage for this varistor is 20 V.
This varistor can handle a maximum surge current of 80 A.
The varistor has a length of 2 mm, a thickness of 1.25 mm, and a depth of 1.25 mm, packaged in an 0805 case size.
It operates efficiently within a temperature range of -40 °C to 85 °C.
The termination style uses Silver/Nickel/Tin for excellent solderability.
It is supplied in reels, facilitating efficient surface mount assembly.
It meets RoHS directives and IEC61000-4-5 for surge protection and IEC61000-4-2 for ESD protection.
The energy rating of this varistor is 0.1 J, providing robust absorption capacity against transient voltage spikes.
The varistor voltage is rated at 12 V, designed to protect circuits effectively.
This model is suitable for surge suppression in power supply circuits and protection of sensitive semiconductor devices.
The maximum DC voltage rating for this varistor is 9 V DC.
