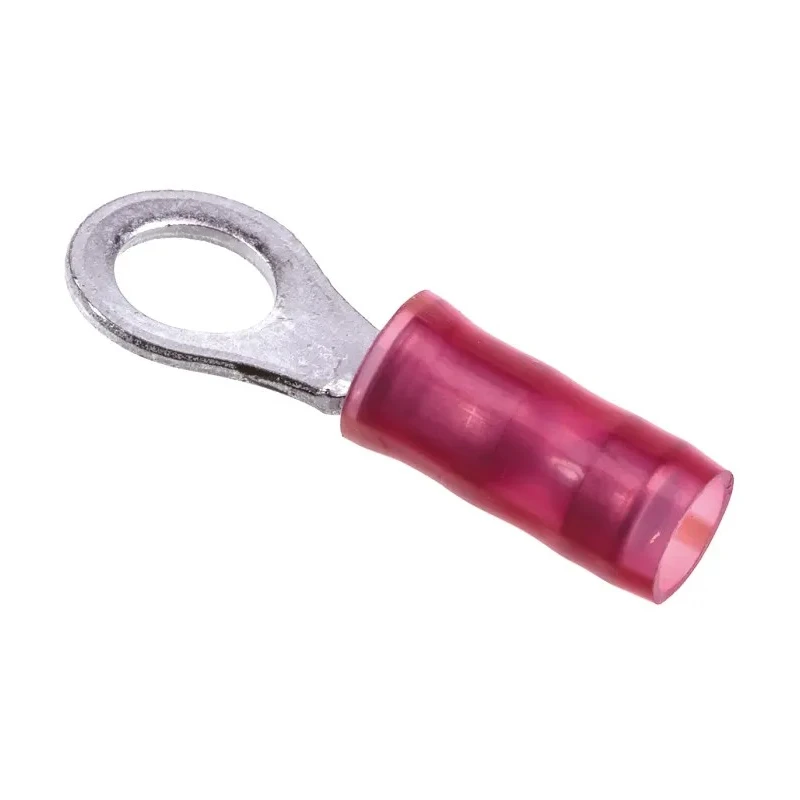

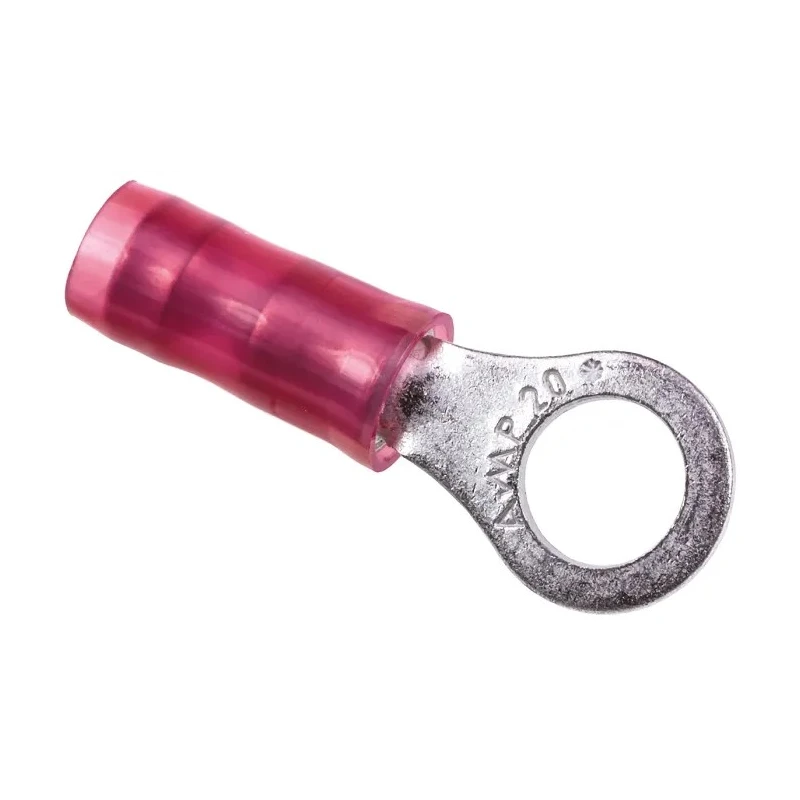

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG 16 AWG Wire Size Red 2-36153-4

TE Connectivity 2-36153-4 PIDG Insulated Ring Terminal is a precision-engineered wire crimp terminal suitable for industrial and electronic power connector applications. Featuring a pre-insulated diamond grip (PIDG) design, it ensures uniform reliability and strong mechanical and electrical connection in critical circuit environments. The ring terminal sports an M5 stud size and accommodates wire sizes from 22 AWG up to 16 AWG, making it versatile for various wiring needs.

The terminal’s copper body is plated with tin for enhanced corrosion resistance. Nylon insulation improves safety by reducing the risk of accidental shorts and enhances durability under mechanical stress. Serrations inside the barrel provide excellent contact with wire strands and high tensile strength after crimping. Its outer red nylon sleeve is colour-coded for quick and accurate wire size identification, streamlining assembly processes.

A funnelled wire entry design simplifies wire insertion, enabling efficient high-speed production operations. This ring terminal is capable of withstanding maximum operating temperatures of up to 105°C, suitable for demanding electrical environments.

The product is widely applied in industries such as instrumentation and control, power supplies, panel manufacturing, transportation, lifting equipment, motors, aerospace, and household appliances due to its dependable performance. While it does not list formal standards or approvals, it meets or exceeds stringent MIL-T-7928 Type II, Class 1 and 2 requirements in many cases.

Constructed from high conductivity copper for excellent electrical transfer. Nylon insulated for enhanced safety and mechanical protection. Serrated barrel design ensures maximum contact and tensile strength. Colour coded red sleeve for easy wire size identification.

Funnelled wire entry for fast and secure insertion. Supports wire sizes from 22 AWG to 16 AWG and M5 stud size. Maximum operating temperature: 105°C. For reliable and efficient wiring solutions, TE Connectivity's PIDG Ring Terminals provide a trusted option for various industrial and commercial electrical installations.
