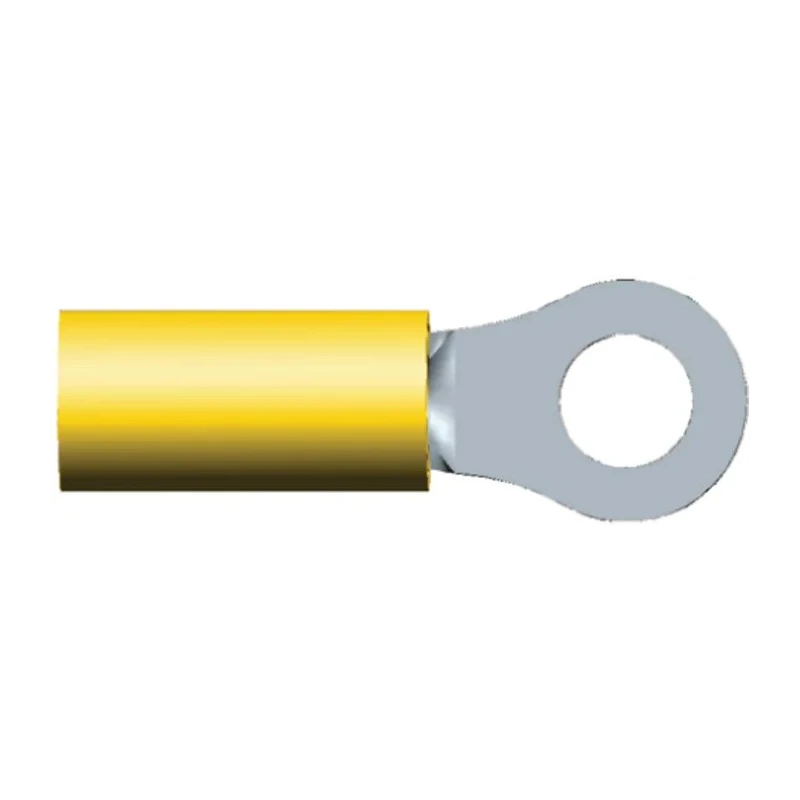

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG to 10 AWG Wire Size Nylon Insulation Yellow 2-36161-3

TE Connectivity 2-36161-3 PIDG Insulated Ring Terminal is a precision-engineered electrical connector designed for use with M5 stud size and wire sizes ranging from 12 AWG to 10 AWG. The terminal features a high-quality copper body with tin plating to optimize conductivity and corrosion resistance combined with a yellow nylon insulation sleeve that provides clear wire size identification and protects against environmental damage.

The terminal’s barrel contains serrations that maximize contact and tensile strength once crimped, ensuring a secure and reliable electrical connection. A copper sleeve inside the barrel enhances support for wire insulation, preventing fraying during installation and service. The funnelled wire entry design allows for quick wire insertion, ideal for high-speed production environments.

Constructed to meet RoHS standards, this PIDG ring terminal is versatile and suitable for various applications including instrumentation, lighting, power supplies, transportation equipment, lifting machinery, motors, aerospace, and household appliances.

Its consistent construction and compatibility with specialized crimping tools ensure reliable and uniform crimps that maintain electrical integrity in demanding industrial, laboratory, and commercial settings.

High conductivity copper body optimizes electrical performance. Durable nylon insulation provides environmental protection and wire color coding. Serrations in the barrel ensure strong mechanical and electrical contact. Copper sleeve inside barrel supports insulation and prevents fraying.

Funnelled wire entry facilitates fast wire insertion for efficient assembly. RoHS compliant for environmental and safety standards. Precision manufactured for uniform crimps with specialized tooling. Adaptable to a wide range of industrial and commercial wiring uses.

This TE Connectivity PIDG Ring Terminal is a trusted choice for electrical installations requiring dependable, efficient, and standardized wire termination. Browse our range of electronic connectivity solutions at EnvMart for high quality industrial components.
