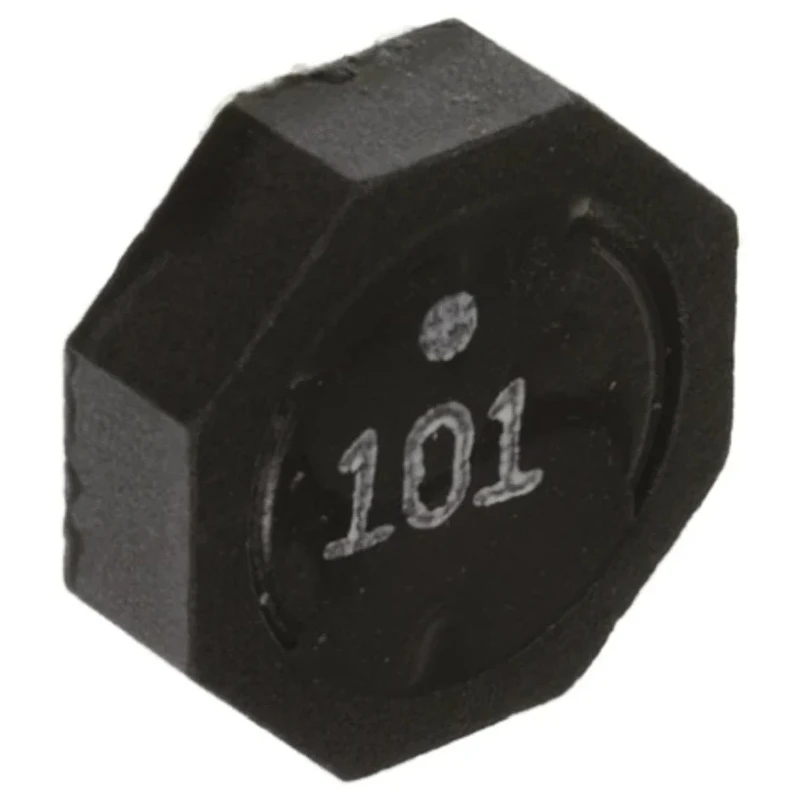

Wurth Elektronik WE-TPC 1038 Shielded Wirewound Surface Mount Inductor 22 μH ±30 % 2.5 A DC Current 744066220
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 3.8mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Package/Case | 1038 |
| Maximum DC Current | 2.5A |
| Maximum DC Resistance | 75mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 12MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsIEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
| IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
Key Features
- Constructed with a ferrite core for magnetic shielding and low leakage fields.
- Compact 1038 package case measuring 10 mm length, 3.8 mm height, and 10 mm depth.
- Operates reliably from -40°C to +125°C operating temperature range.
- Features a maximum DC resistance of 75 mΩ ensuring efficient conduction.
- Compliance with automotive standard AEC-Q200 and various industry standards including IEC and RoHS.
- Wirewound inductor construction ensures high current capability for portable power and embedded applications.
- Termination style designed for surface mount assembly providing ease of PCB integration.
- Maximum self-resonant frequency of 12 MHz suitable for switching regulator circuits.
Product Description
Wurth Elektronik 744066220 WE-TPC Series Shielded Wirewound Surface Mount Inductor features a ferrite core construction providing magnetic shielding and low leakage fields. With an inductance of 22 μH and a tolerance of ±30 %, this power inductor supports a maximum DC current of 2.5 A, making it ideal for high current applications.

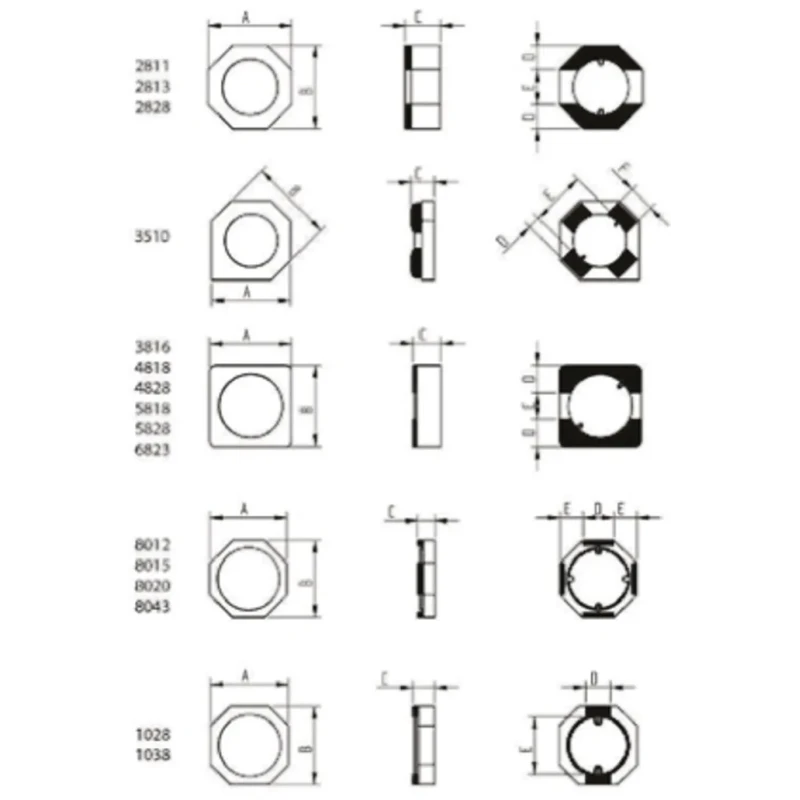

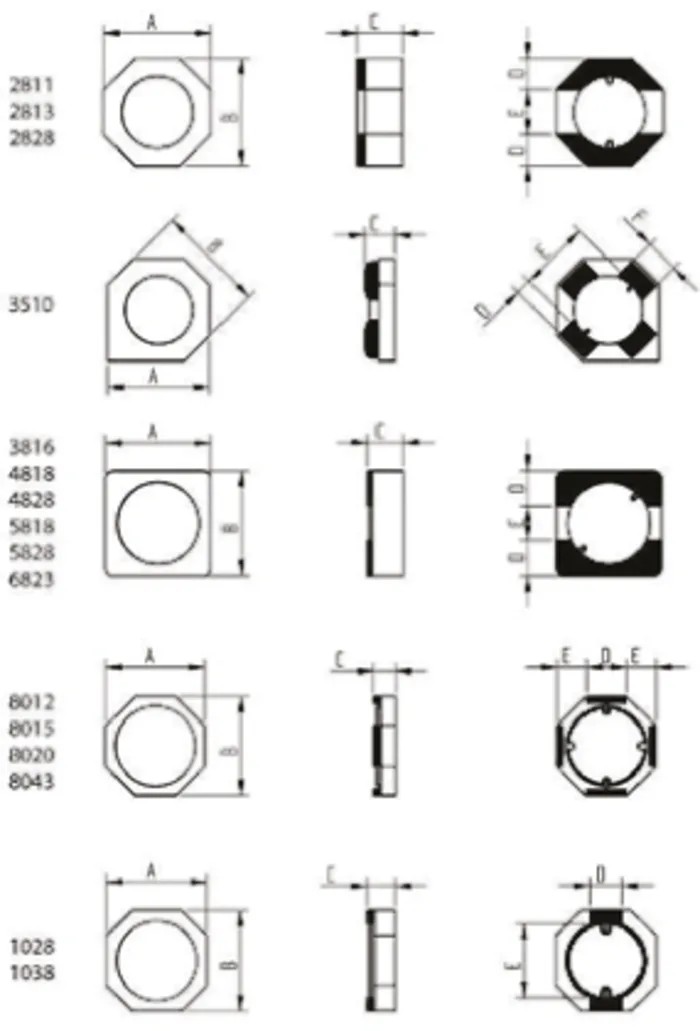

The inductor is housed in a 1038 package case measuring 10 mm in length, 3.8 mm in height, and 10 mm in depth. Designed for surface mount technology (SMT), it offers consistent performance in a compact size, suitable for automated PCB assembly lines. The high-temperature rating from -40 to +125°C ensures reliable operation in harsh environments.
This product complies with automotive standard AEC-Q200, IEC 60286-3, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, and RoHS regulations, illustrating its quality and environmental compliance.
The WE-TPC series inductors are wirewound for enhanced current handling and are commonly used in applications such as portable power devices including PDAs, digital cameras, PCMCIA cards and displays, embedded PCs, DC/DC converter circuits, and mobile data gathering systems.
Ferrite core provides effective magnetic shielding and reduces leakage fields. Compact and flat design optimal for space-constrained applications. High current capability supports demanding power requirements. Wide temperature range suitable for automotive and industrial use cases.
Surface mount termination style improves assembly efficiency. Packaged in tape and reel format suitable for automated manufacturing. Meets stringent industry standards ensuring performance and safety. Wirewound construction enhances durability and inductance stability.
Maximum self-resonant frequency of 12 MHz supports high-frequency circuits. Applications include DC/DC converters, embedded computing, and telemetric devices. Explore more electronic components and Surface Mount Inductors at EnvMart for reliable and efficient circuit design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±30%.
It supports a maximum DC current of 2.5 A, making it suitable for high current applications.
The inductor is housed in a 1038 package case measuring 10 mm in length, 3.8 mm in height, and 10 mm in depth.
It operates reliably within a temperature range of -40°C to +125°C.
It features a wirewound construction, which enhances its current handling capability.
The maximum self-resonant frequency is 12 MHz, suitable for high-frequency circuits.
The termination style is designed for surface mount assembly, facilitating ease of PCB integration.
It complies with the automotive standard AEC-Q200, ensuring it meets industry quality requirements.
The maximum DC resistance is 75 mΩ, which ensures efficient conduction.
This model is commonly used in applications such as DC/DC converters, portable power devices, and embedded systems.
It meets several industry standards including IEC 60286-3, IEC 61249-2-21, IPC/JEDEC J-STD-020E, and RoHS regulations.
The core material is ferrite, which provides magnetic shielding and low leakage fields.
