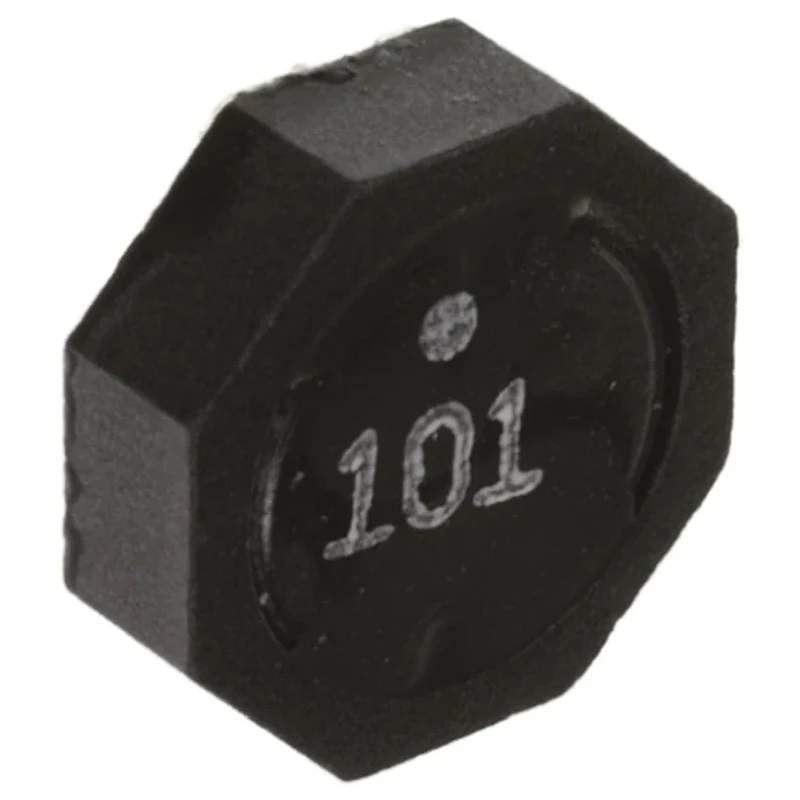

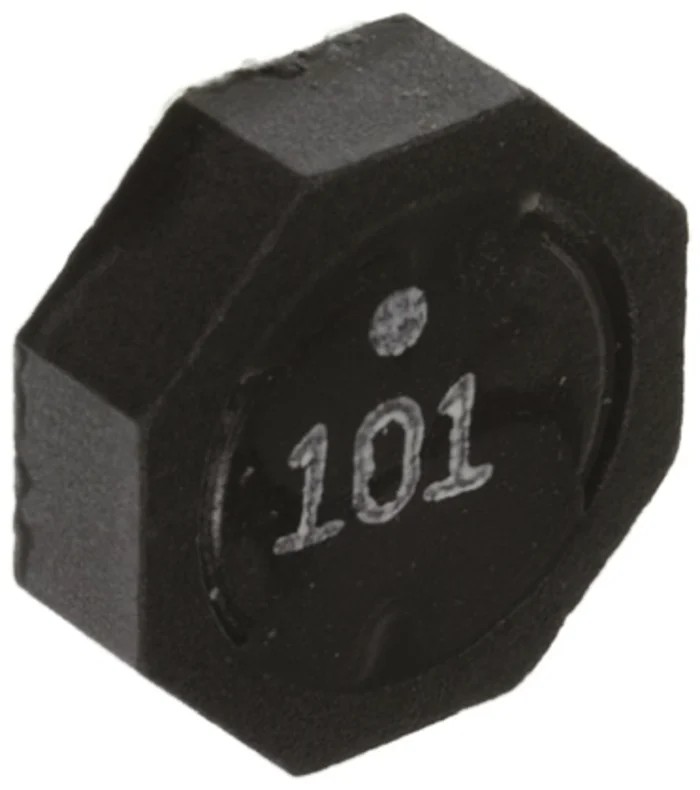

Wurth Elektronik Wirewound Shielded Surface Mount Inductor 5 μH ±30% 4.9 A IDC 10mmx3.8mm WE-TPC 744066005
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 3.8mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 5μH |
| Package/Case | 1038 |
| Maximum DC Current | 4.9A |
| Maximum DC Resistance | 22mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 30MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsIEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
| IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
Key Features
- Extremely flat magnetically shielded choke with ferrite core.
- High current handling capability suited for compact power designs.
- Surface mount termination style for automated PCB assembly.
- Operating temperature range from -40°C to 125°C.
- Compliant with automotive standard AEC-Q200.
- Supports applications including portable power supplies and DC/DC converters.
- Low maximum DC resistance of 22 mΩ for efficient performance.
- Maximum self-resonant frequency up to 30 MHz.
Product Description
Wurth Elektronik 744066005 is a wirewound shielded surface mount inductor featuring a ferrite core and a nominal inductance of 5 μH with ±30% tolerance. It supports a maximum DC current of 4.9 A and is housed in a 1038 package case measuring 10 mm in length and 3.8 mm in height. The inductor employs a magnetically shielded construction which ensures low electromagnetic interference and suitability for high-density circuit layouts.
Designed to operate within a broad temperature range from -40°C to 125°C, this component complies with stringent automotive standard AEC-Q200 and IEC, IPC/JEDEC, REACH, and RoHS directives, making it a reliable choice for demanding industrial and automotive electronics applications.
Its low DC resistance of 22 mΩ results in efficient energy transfer with minimal losses, while the maximum self-resonant frequency of 30 MHz enables effective filtering and energy storage in high-frequency circuits.
This surface mount inductor is ideal for portable power devices such as PDAs, digital cameras, PCMCIA cards, embedded PCs, and telemetric data gathering systems. The reel packaging facilitates streamlined production processes via automated pick-and-place assembly.
Extremely flat profile for compact designs. Magnetically shielded to minimize interference. High DC current rating suitable for power applications. Automotive and industrial grade standards compliance. Low DC resistance for improved energy efficiency.
Wide operating temperature range ensures versatility. Tape and reel packaging supports high volume manufacturing.
Explore the full range of Surface Mount Inductors and electronic components available at EnvMart for diverse industrial, laboratory, automotive, and commercial electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this inductor is 5 μH with a tolerance of ±30%.
This model supports a maximum DC current of 4.9 A.
It operates within a temperature range of -40°C to +125°C.
The inductor is housed in a 1038 package case, measuring 10 mm in length and 3.8 mm in height.
The maximum self-resonant frequency is up to 30 MHz.
The inductor features a ferrite core material.
The maximum DC resistance is 22 mΩ.
Yes, it complies with the automotive standard AEC-Q200.
It features a surface mount termination style.
It is packaged in tape and reel format to facilitate automated PCB assembly.
This model is suitable for applications such as portable power supplies and DC/DC converters.
It meets standards including IEC 60286-3, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, and RoHS.
