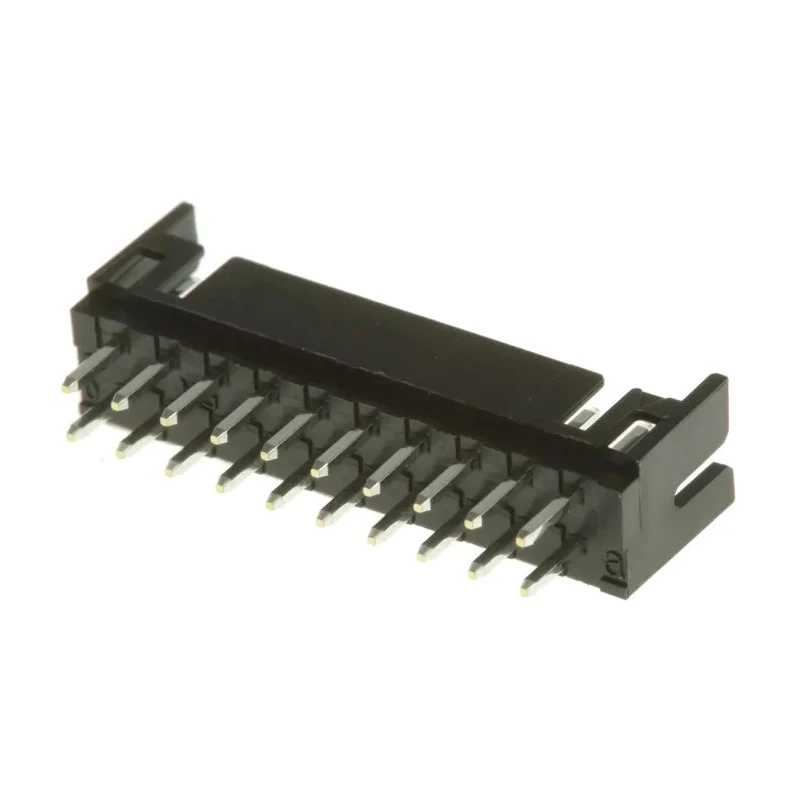

Hirose DF11 Series Straight Through Hole Shrouded PCB Header, 20 Contacts, 2 mm Pitch, 2 Row

Hirose DF11-20DP-2DSA(01) is a straight through hole PCB header from the DF11 series, featuring 20 male contacts arranged in 2 rows with a 2 mm pitch. This shrouded header is designed with a compact footprint, allowing double row contact configuration in the same space as a single row connector, making it ideal for space constrained electronic designs.

The connector housing is manufactured from polyamide for mechanical strength and thermal stability. The gold-plated brass contacts ensure robust and reliable electrical conductivity, with a 2 Ampere current rating and a 30 Volt operating voltage, supporting a wide range of electronic applications.

The robust four wall shrouded design includes guide ribs that prevent misalignment or incorrect mating, while a secure locking mechanism ensures connections remain intact during operation. The through hole mounting provides strong retention on the PCB suitable for demanding environments.

This PCB header supports both board-to-board and wire-to-board connector systems, offering flexibility in connectivity options. It operates effectively over a temperature range from -30°C to 85°C, ensuring reliability across industrial and commercial electronic applications.

Typical use cases for the Hirose DF11 series PCB Header include compact consumer electronics, digital cameras, LCD displays, measurement devices, and automotive electronics where space saving and secure connections are critical.

Compact double row design with 2 mm pitch for space saving PCB applications. Shrouded housing with guide ribs to prevent incorrect insertion and twisting. Gold-plated brass contacts ensure reliable electrical connection.

Suitable for board-to-board and wire-to-board connector systems. Operates reliably between -30°C to 85°C temperature range. Locking mechanism secures mating connector assemblies firmly. Mount type is through hole for robust PCB attachment.

Housing constructed from durable polyamide material. Designed for 30 V voltage and 2 A current rating. Ideal for use in compact electronic devices and applications. Explore more PCB Connectors and Headers on EnvMart for all your electronic component needs.
