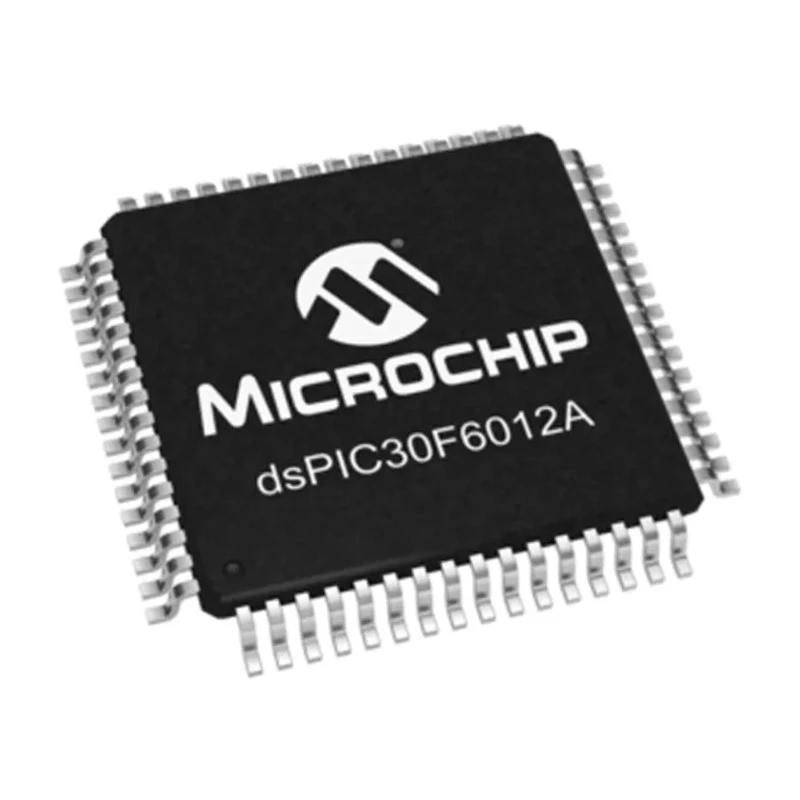

Microchip 16 bit Digital Signal Processor dsPIC30F6012A-30I/PF 30 MIPS 144kB FLASH 64-Pin TQFP

Microchip dsPIC30F6012A-30I/PF is a 16 bit Digital Signal Processor designed to deliver high performance at 30 MIPS, incorporating 144kB of Flash program memory and 8.19kB of RAM. This digital signal controller combines the versatility of an MCU with the processing power of a DSP, making it ideal for embedded control applications requiring efficient computation and peripheral integration.

This processor operates within a voltage range of 2.5V to 5.5V, supporting 5V system operations frequently preferred in various industrial and embedded systems. It comes in a compact 64-pin TQFP package, measuring 14mm in length and width, with a slim 1.05mm height, suited for surface mount technology deployments.

The dsPIC30F6012A-30I/PF includes integrated peripherals ideal for digital power conversion and motor control, such as 8 PWM units with 16 bit resolution, 1 ADC with 16 channels at 12 bit resolution, and 5 timers. The RISC architecture and 16 bit data bus enable efficient processing and control code execution.

This device supports reliable operation in temperature ranges from -40°C up to 85°C, making it suitable for demanding automotive, industrial, and consumer electronics applications. Its integration of SMPS, Codec interface, and motor control peripherals enables sophisticated digital power electronics and audio applications.

Operates at a maximum clock frequency of 30 MIPS ensuring efficient processing performance. Employs a 16 bit data bus width for precise data handling. Includes 8.19kB RAM for temporary data storage during operations. Utilizes RISC instruction set architecture for optimized control and processing speed.

Equipped with 1 ADC, 16 ADC channels, and 12 bit ADC resolution for accurate analog to digital conversions. Features 8 PWM units with 16 bit resolution and 5 timers for advanced motor control and peripheral management. Designed for surface mounting in a 64-pin TQFP package with compact dimensions (14mm x 14mm x 1.05mm).

Supports operating voltage range from 2.5V to 5.5V for versatile application environments. Functions reliably across a wide temperature range: -40°C to 85°C. Well-suited for applications involving motor control, digital power converters, and audio processing.

The Microchip dsPIC30F6012A-30I/PF is a perfect solution for industrial automation, embedded control systems, automotive electronics, and advanced audio signal processing. This highly integrated digital signal controller enables designers to achieve high efficiency and performance in compact form factors with robust operating range reliability.
