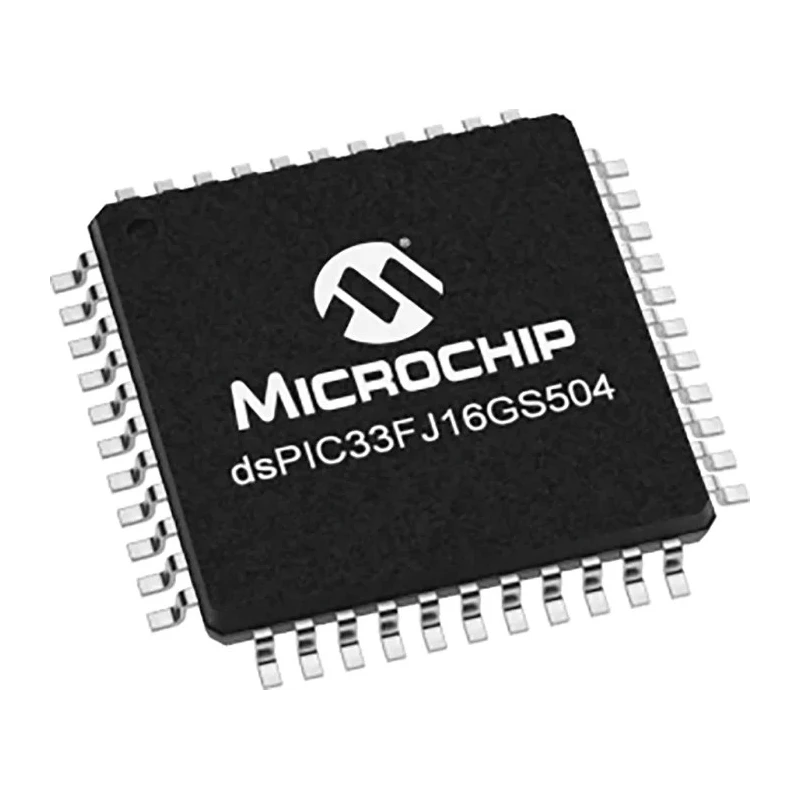

Microchip 16 bit Digital Signal Processor DSPIC33FJ16GS504-E/PT, 40 MHz Clock, 16kB FLASH, 44-Pin TQFP
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33FJ16GS504-E/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | DSPIC33FJ16GS504 |
| Maximum Operating Temperature | 125°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 10bit |
| Timer Resolution | 32bit |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 2 |
| Instruction Set Architecture | Harvard |
| Program Memory Type | FLASH |
| Number of ADCs | 2 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 4 |
| PWM Resolution | 16bit |
| ADC Channels | 12 |
| Number of PWM Channels | 8 |
| Numeric and Arithmetic Format | ALU |
Key Features
- Operates at a maximum clock frequency of 40 MHz delivering 40 MIPS performance.
- Features 16kB flash program memory and 2kB RAM capacity.
- Includes 12 ADC channels with 10-bit ADC resolution for precise analog-to-digital conversion.
- Equipped with 8 PWM channels and 4 PWM units supporting 16-bit resolution.
- Robust operating temperature range from -40°C to +125°C suitable for varied environments.
- Compact 44-pin TQFP surface mount package measuring 10 mm x 10 mm with 1.05 mm height.
- Harvard architecture with ALU numeric and arithmetic format enables efficient instruction execution.
- Includes dual 32-bit timers and automotive standard AEC-Q100 certification ensuring reliability.
Product Description
Microchip DSPIC33FJ16GS504-E/PT is a high-performance 16 bit Digital Signal Processor designed for digital power conversion and control applications. Operating at a maximum frequency of 40 MHz, it delivers efficient processing with 40 Million Instructions Per Second (MIPS). It features 16kB of FLASH program memory and 2kB of RAM, utilizing a Harvard instruction set architecture that optimizes code execution efficiency.
The device comes in a compact 44-pin TQFP surface mount package, measuring 10 mm in length and width with a height of 1.05 mm, suitable for space-constrained environments. It supports multiple analog and digital interfaces, including 12 ADC channels with 10-bit resolution and 8 PWM channels across 4 PWM units with 16-bit resolution. The integrated 32-bit timers provide precise timing control for embedded applications.
Engineered to withstand harsh conditions, it operates within a temperature range from -40°C up to +125°C, making it ideal for automotive and industrial uses. The product meets the AEC-Q100 automotive standard, ensuring reliability and quality for automotive system designs. It supports various digital power conversion applications, such as AC to DC converters, DC to DC converters, power factor correction, uninterruptible power supplies (UPS), inverters, embedded power supply controllers, circuit breakers, and arc fault detection.
The DSPIC33FJ16GS504-E/PT features advanced calculation capabilities with dual 40-bit accumulators, single-cycle multiply-accumulate (MAC) operations, and hardware divide functionality, facilitating high-speed PWM generation and digital control. This device is ideal for engineers developing efficient and robust power electronics, industrial automation, and embedded system solutions.
Operates at 40 MHz clock frequency with 40 MIPS throughput. 16kB FLASH program memory and 2kB RAM size for application storage. 12 ADC channels with 10-bit resolution for accurate sensor interfacing. 8 PWM channels with 16-bit resolution for motor and power control.
Compact 44-pin TQFP package for surface mounting on PCBs. Wide operating temperature range suitable for automotive and industrial environments. Harvard architecture and ALU numeric format for efficient processing. Meets AEC-Q100 automotive standard for reliability and quality.
Applications include SMPS, UPS, inverters, power factor correction, and embedded power-supply control.
This DSPIC33FJ16GS504-E/PT processor provides a robust and efficient platform for digital signal processing tasks in industrial, automotive, and embedded systems engineering sectors. Browse more Digital Signal Processors at EnvMart for related solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MHz.
It features 16kB of FLASH program memory.
This unit supports a 10-bit resolution for its 12 ADC channels.
The processor includes 8 PWM channels with a 16-bit resolution.
It operates within a temperature range from -40°C to +125°C.
It comes in a compact 44-pin TQFP surface mount package.
This model includes 2 integrated 32-bit timers.
It meets the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
It utilizes a Harvard instruction set architecture for efficient code execution.
This unit has a RAM capacity of 2kB.
The processor includes 4 PWM units.
It delivers a performance of 40 Million Instructions Per Second (MIPS).
