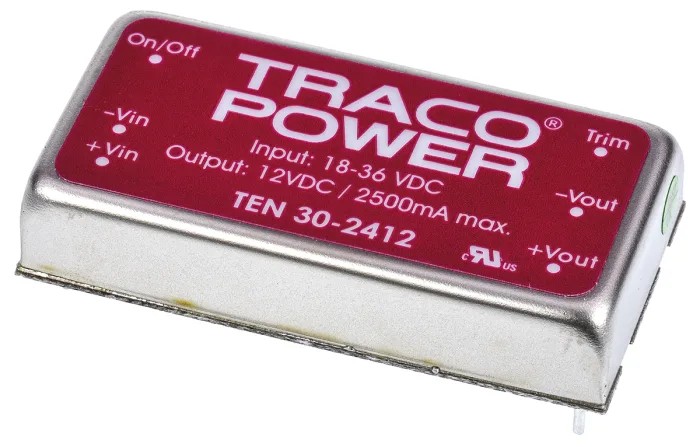

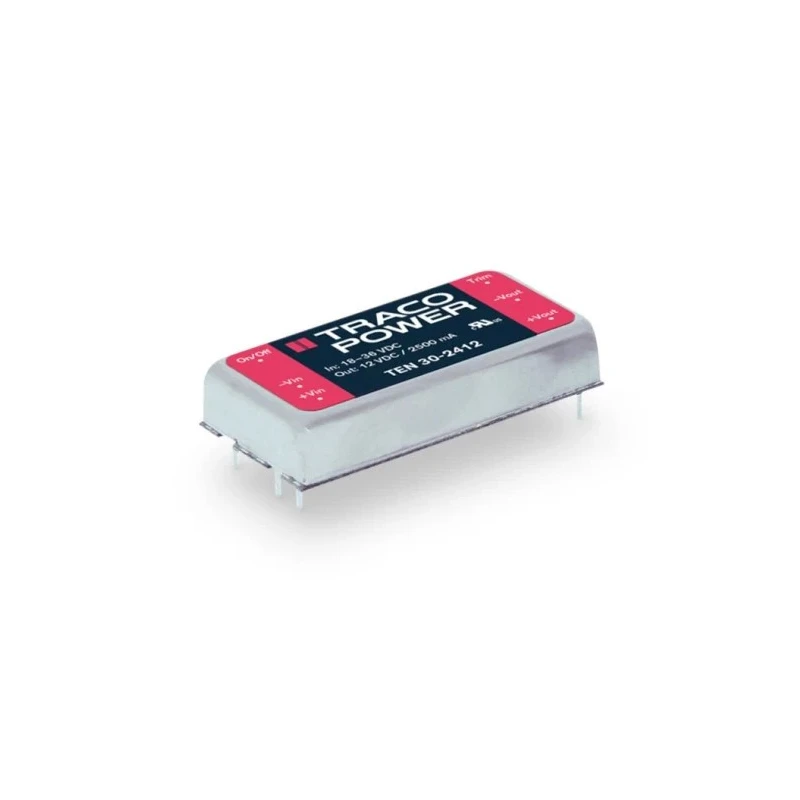

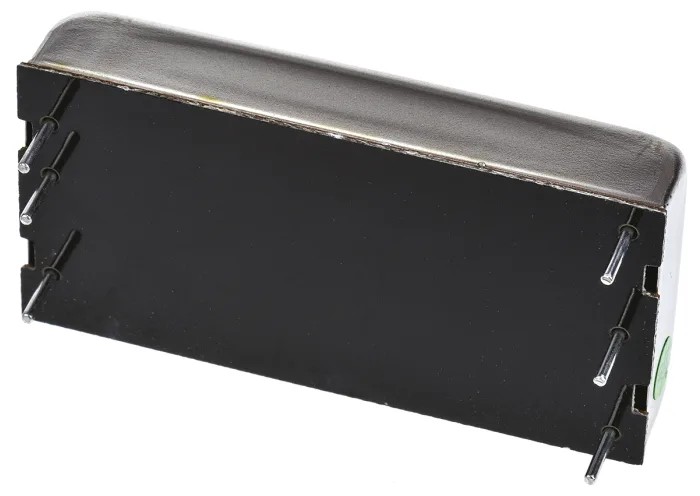

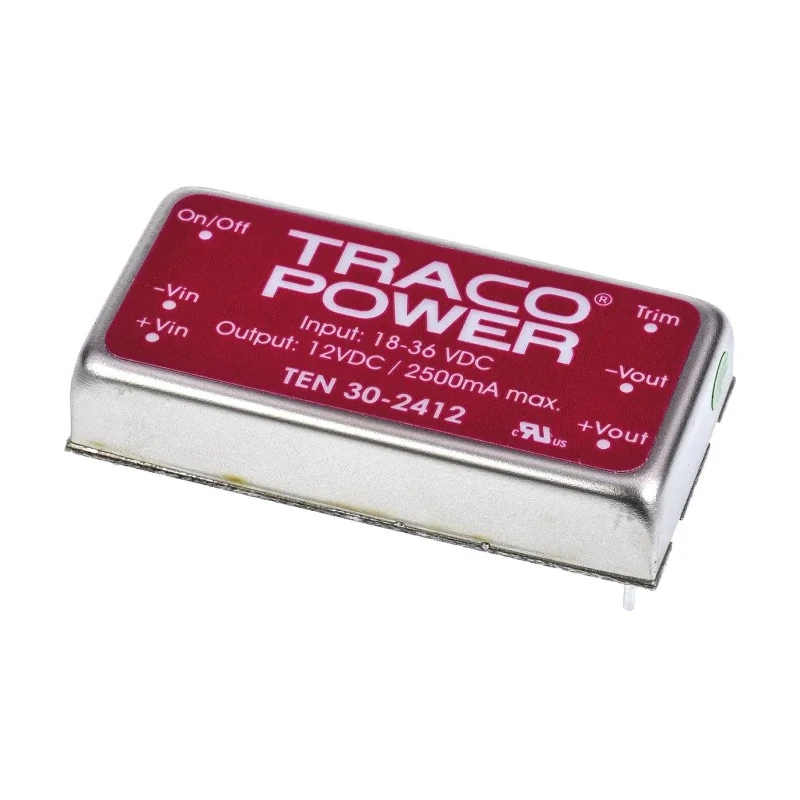

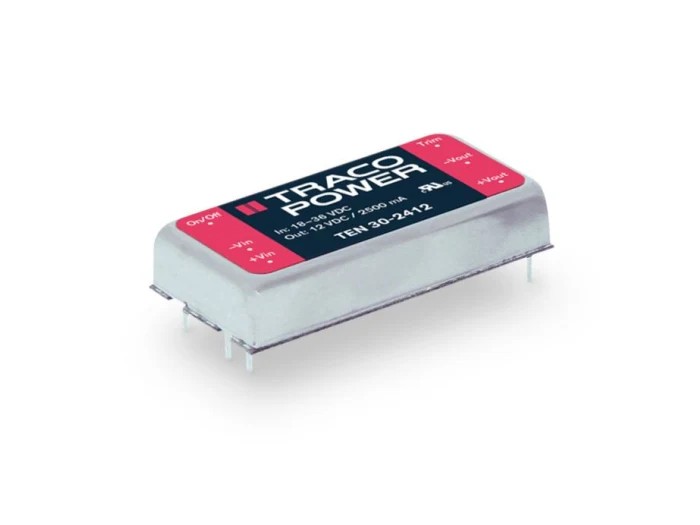

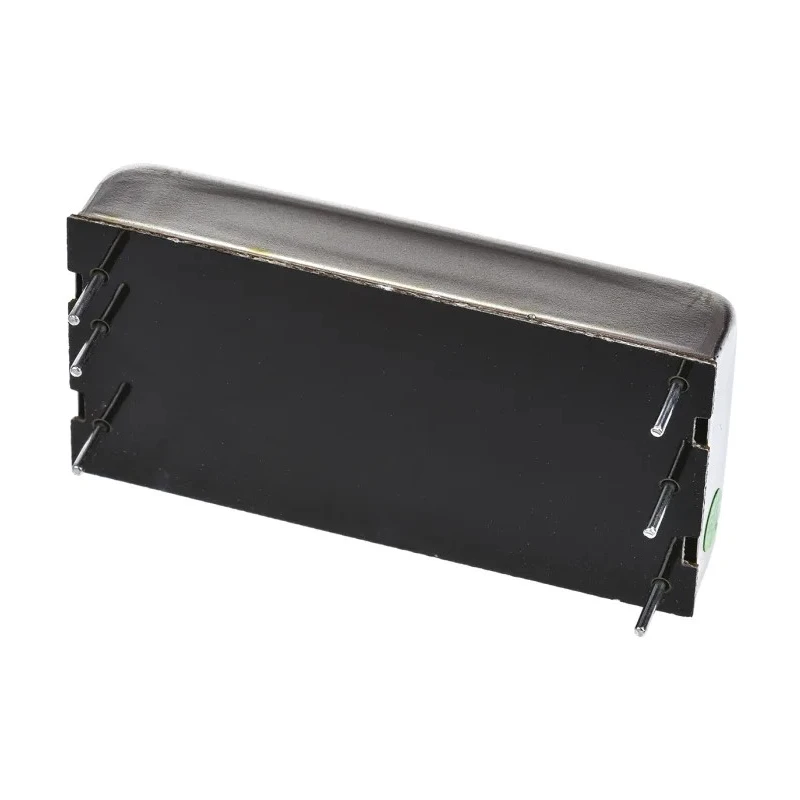

TRACOPOWER DC/DC Converter 12V DC Output 2.5A 36V DC Max Input 18V Min Input 30W PCB Mount TEN 30-2412

TRACOPOWER TEN 30-2412 DC/DC Converter is designed for efficient power conversion from a broad input voltage range of 18V to 36V DC into a regulated 12V DC output at 2.5A, delivering a maximum output power of 30W. Its compact encapsulated package (25.4mm length x 25.4mm width x 10.2mm depth) allows easy PCB mounting within electronic systems.

The converter boasts a high efficiency of 91%, significantly minimizing heat generation and eliminating the need for additional heat sinks in many applications. It operates reliably in extreme conditions, supporting a wide temperature range from -40°C minimum to 85°C maximum, making it suitable for industrial, telecommunications, and portable electronic applications.

Safety and durability are enhanced by a 1.5kV DC isolation voltage, reducing risk of electrical shocks and interference. The unit incorporates built-in EMI filtering to safeguard system signals and integrated short-circuit protection ensures quick recovery from power faults, reducing downtime.

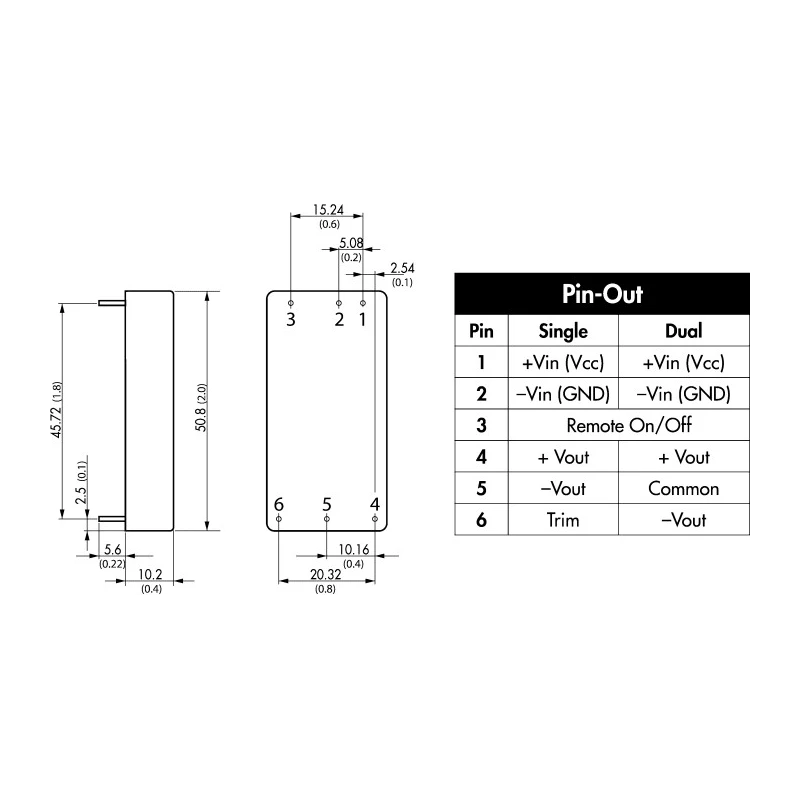

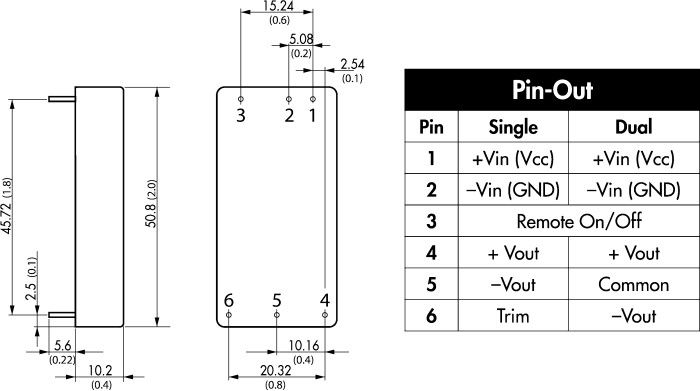

Its fast startup time of 30ms ensures rapid availability of stable power output, and the device includes clear pin labelling on the top plate for straightforward wiring integration.

Common use cases for the TEN 30-2412 include portable electronic devices, telecommunications network equipment, and power distribution systems requiring reliable and efficient DC voltage regulation on circuit boards.

High efficiency of 91% minimizes heat dissipation and power loss. PCB mounting type suitable for compact electronic assemblies. Wide operating temperature range from -40°C to 85°C ensures reliability under harsh conditions.

Encapsulated package ensures electrical insulation and protection. Isolation voltage of 1.5kV DC enhances safety in power applications. Fast startup time of approximately 30 milliseconds. Integrated EMI protection reduces interference with system signals.

Single output channel with adjusted voltage input ratio of 2:1. Applications range from portable devices to telecommunications and power distribution equipment. Explore our Electronics & Electricals category for more power management solutions and TRACOPOWER products for your energy conversion needs.
