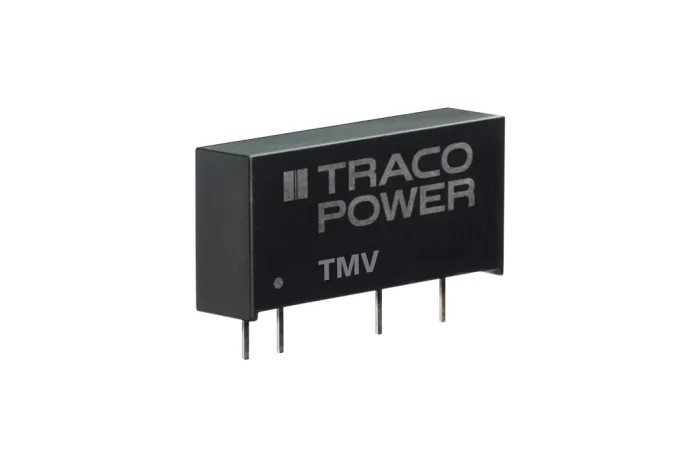

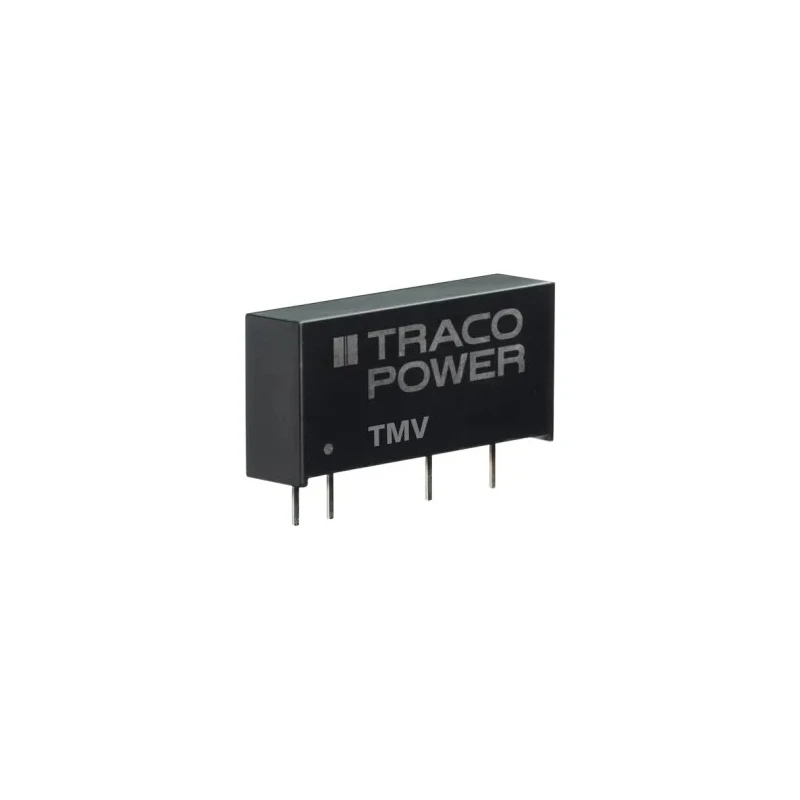

TRACOPOWER TMV Series Miniature Isolated 1W Dual Output DC-DC Converter, 15V dc/34 mA Output, 12V dc Input TMV 1215D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMV DC/DC Converter, 15V dc/ 34 mA, 12V |
| Brand | TRACOPOWER |
| Efficiency | 81% |
| Length | 19.5mm |
| Model | TMV 1215D |
| Depth | 10.2mm |
| Width | 6.1mm |
| Mount Type | Through Hole |
| Series | TMV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIL |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 12V dc |
| Minimum Input Voltage | 0V |
| Number of Pins | 5 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 34mA |
| Output Voltage Adjustment Range | 12 to ±10 V |
| Isolation Voltage | 3kV dc |
| Output Voltage 2 | -15V dc |
Key Features
- Miniature SIP package suitable for space critical applications.
- Dual isolated outputs delivering 15V dc at 34 mA maximum output current.
- Operates with a 12V dc input voltage ranging from 0V minimum.
- Through hole mounting with 5 pins and SIL package type for easy PCB integration.
- Wide operating temperature range from -40°C to 85°C ensuring robust performance.
- High isolation voltage of 3000 Vdc offering electrical safety and noise reduction.
- Compact dimensions of 19.5mm length, 10.2mm depth, and 6.1mm width.
- Typical efficiency of 81% for optimized power use and thermal management.
Product Description
TRACOPOWER TMV 1215D is a miniature, isolated 1 Watt DC-DC converter designed in a SIP package that provides dual output power for industrial and electronic board level applications. The converter supports high efficiency up to 81% and operates from a 12 V DC input, delivering stable 15 V DC output at 34 mA. This unit enables compact power distribution solutions in space-critical designs due to its minimal board space requirement of approximately 1.2 cm2.
The TMV series features isolated single and dual output configurations with an I/O isolation voltage of 3000 Vdc, providing excellent noise immunity and safety protection in electronic circuits. With a broad operating temperature range spanning from -40°C to +85°C, it is suited for harsh environmental conditions often encountered in industrial, manufacturing, and embedded systems.
The through-hole mounted SIL package, incorporating 5 pins, facilitates straightforward integration into various PCB layouts. The robust MTBF rating of 2 million hours ensures dependable performance in demanding applications. This series complies with RoHS standards, eliminating lead content and supporting environmentally conscious manufacturing processes.
Dimensions are compact with a length of 19.5 mm, width of 6.1 mm, and depth of 10.2 mm. The device is manufactured in Taiwan, Province Of China, reflecting stringent quality control.
These converters are widely applied in industrial electronics, telecommunications, instrumentation, and power supply modules requiring isolated low-power DC-DC solutions. The proven technology and standardized form factor facilitate easy design upgrades and replacements.
Miniature SIP package for space-efficient power design. Dual isolated outputs with high isolation voltage. Wide temperature operation from -40°C to +85°C. High efficiency up to 81% reducing thermal dissipation. Compliant with RoHS for environmental safety.
Long operational life with MTBF of 2 million hours. Through-hole mounting for secure PCB connection.
Explore the Electronics & Electricals category at EnvMart for a comprehensive selection of DC-DC Converters and related power supply components suitable for varied industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 1 Watt.
It operates with a 12V DC input voltage ranging from 0V to 12V.
The dimensions of this unit are 19.5 mm in length, 10.2 mm in depth, and 6.1 mm in width.
This model has a typical efficiency rating of 81%.
The isolation voltage of this converter is 3000 Vdc.
It operates within a temperature range of -40°C to 85°C.
This model provides two isolated outputs.
It features through-hole mounting with 5 pins for easy PCB integration.
It delivers dual outputs of 15V DC and -15V DC.
The mean time between failures (MTBF) for this unit is rated at 2 million hours.
Yes, it complies with RoHS standards, eliminating lead content.
This converter is widely applied in industrial electronics, telecommunications, instrumentation, and power supply modules.
