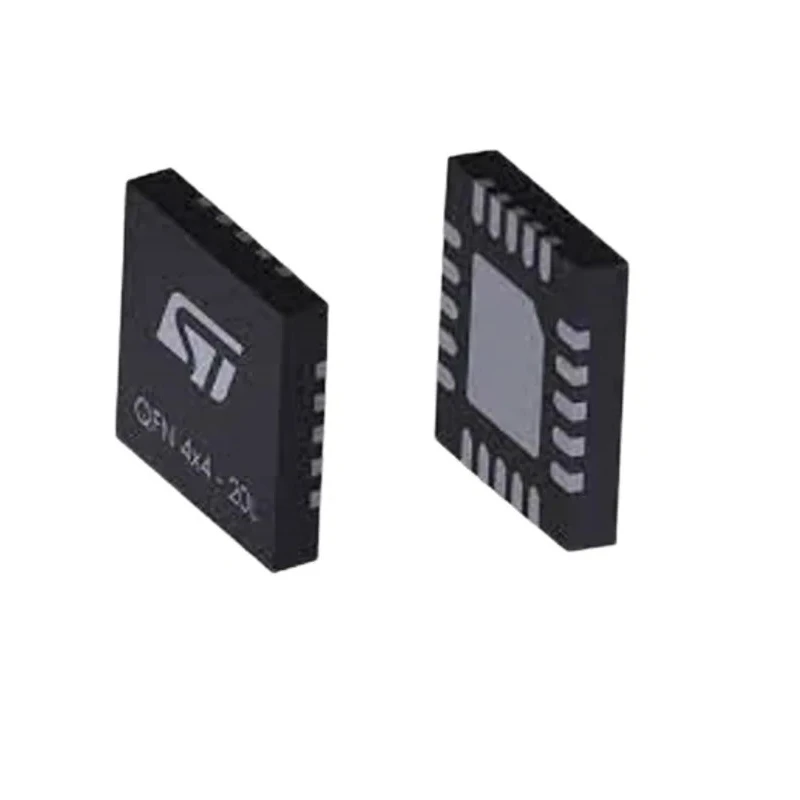

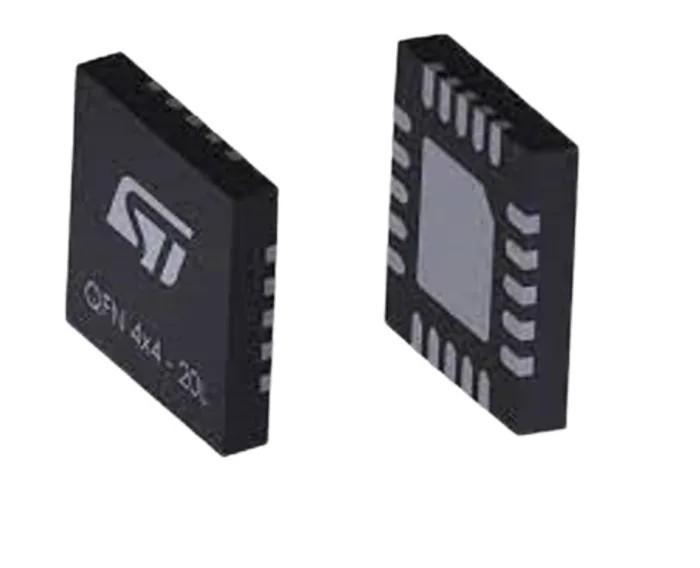

STMicroelectronics USB Controller 5.5V USB Type C 20-Pin OFN Surface Mount TCPP03-M20
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 800μm |
| Length | 4.05mm |
| Model | TCPP03-M20 |
| Mount Type | Surface |
| Series | TCPP03-M20 |
| Maximum Operating Temperature | 125°C |
| Package Type | OFN |
| Sub Type | USB Interface |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 2.7mA |
| USB Specification | USB Type C |
| Supported Protocols | USB Type C |
Key Features
- Supports USB Type C protocol for enhanced compatibility.
- Operates with a supply voltage range from 2.7V to 5.5V.
- Features ESD protection compliant with IEC 61000-4-2 Level 4.
- Designed for surface mount with a compact 20-pin OFN package.
- Supports operating temperatures from -40°C to 125°C for reliable performance.
- Includes VBUS current sensing and discharge functionality for safety.
- Integrates overtemperature and overvoltage protection mechanisms.
- Suitable for dual role power USB-C power delivery implementations.
Product Description
STMicroelectronics TCPP03-M20 is a highly integrated USB Controller designed for USB Type C applications, operating effectively over voltage ranges from 2.7V to 5.5V. It is packaged in a compact 20-Pin OFN surface mount form factor, measuring 4.05mm in length and 800μm in height.
This controller supports dual role power (DRP) functionality enabling cost-effective USB-C power delivery compliant implementations. It provides comprehensive protection features including ESD protection compliant with IEC 61000-4-2 Level 4 standards, overvoltage protection on CC lines, and overcurrent protection on VCONN lines with maximum ratings of 100 mW and 6 V respectively.
Additional features include integrated VBUS current sensing and discharge circuitry, overtemperature protection with typical threshold at 150 °C, and "Dead Battery" management to ensure robust system reliability across varying thermal and power conditions.
Communication is supported via I2C interface with selectable addresses, facilitating seamless integration into complex system architectures.
The TCPP03-M20 is engineered for industrial and commercial electronics applications requiring reliable, safe USB Type C interface functionality. Its robust operating temperature range from -40°C to 125°C makes it suitable for harsh environments in industrial, manufacturing, and automotive sectors.
Supports USB Type C protocol for enhanced compatibility. Operates with a supply voltage range from 2.7V to 5.5V. Features ESD protection compliant with IEC 61000-4-2 Level 4. Designed for surface mount with a compact 20-pin OFN package.
Supports operating temperatures from -40°C to 125°C for reliable performance. Includes VBUS current sensing and discharge functionality for safety. Integrates overtemperature and overvoltage protection mechanisms. Suitable for dual role power USB-C power delivery implementations.
Compact dimensions facilitate integration in densely packed PCBs.
EnvMart offers this USB Interface Controller as part of a wide range of Semiconductor components for Electronics and Electricals sectors, catering to industrial, automation, and manufacturing applications.
Explore more products in our USB Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 2.7V to 5.5V.
It has a length of 4.05mm and a height of 800μm, packaged in a compact 20-pin OFN surface mount form factor.
The maximum operating temperature for the TCPP03-M20 is 125°C.
This model integrates ESD protection compliant with IEC 61000-4-2 Level 4, overvoltage protection on CC lines, and overcurrent protection on VCONN lines.
It supports the USB Type C protocol, enhancing compatibility for various applications.
The operating temperature range for the TCPP03-M20 is from -40°C to 125°C.
The supply current for this model is 2.7mA.
It is designed for surface mounting.
This model supports dual role power (DRP) functionality for cost-effective USB-C power delivery implementations.
It includes overtemperature protection with a typical threshold at 150°C to ensure reliability under varying thermal conditions.
This USB controller features a pin count of 20.
The TCPP03-M20 is manufactured in India.
