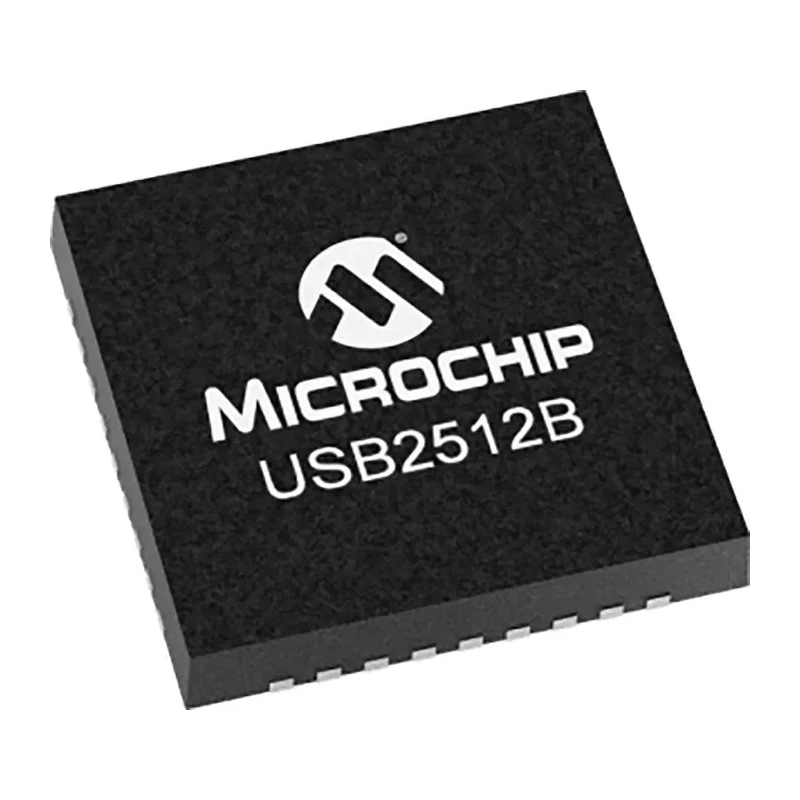

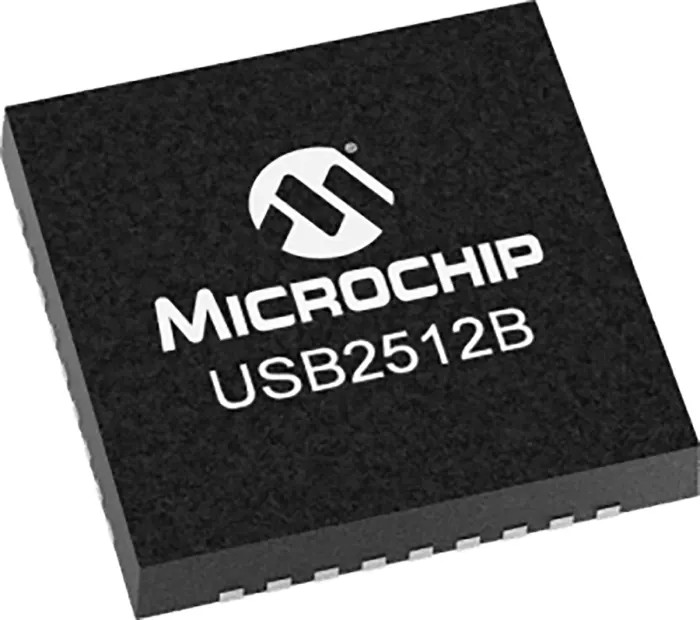

Microchip USB Controller 1-Channel 3.3V-3.6V I2C USB 2.0 36-Pin SQFN USB2512B/M2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 6.1mm |
| Model | USB2512B/M2 |
| Mount Type | Surface |
| Series | USB251 |
| Maximum Operating Temperature | 85°C |
| Package Type | SQFN |
| Sub Type | Controller |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB differential-pair pin locations ease PCB design by aligning USB signal lines directly to connectors |
| Pin Count | 36 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | I2C, USB 2.0 |
Key Features
- Features high performance with ultra low power consumption.
- 16-bit 36-pin SQFN package enables compact board design.
- Provides robust ESD protection for reliable operation.
- Operates within 0 to 85 degrees Celsius temperature range.
- Equipped with MultiTRAK technology for efficient data throughput.
- Pin locations optimized for easy PCB design alignment.
- Suitable for consumer, mobile and embedded applications requiring USB expansion.
Product Description
Microchip USB2512B/M2 USB Controller 1-Channel is a highly efficient USB 2.0 hub controller IC designed for low power and small footprint applications. It operates with a single power supply ranging from 3.3 V minimum up to 3.6 V maximum, making it suitable for compact electronic devices.
This controller features a 36-pin SQFN package measuring 6.1 mm in length and 0.95 mm in height, providing a space-saving form factor ideal for modern consumer electronics and mobile device integration.
The device supports the I2C protocol for configuration and control, and includes robust ESD protection to enhance device durability and reliability in harsh environments.
With an operating temperature range from 0°C to 85°C, the USB2512B/M2 is engineered for standard industrial and consumer environments. It incorporates Microchip's MultiTRAK technology, delivering high-performance multiple transaction translation, enabling efficient USB data throughput on each port which supports flexible port mapping and disable sequencing.
High performance and ultra low power USB 2.0 controller IC. Compact 36-pin SQFN package suitable for space-limited PCB layouts. Supports single power supply voltage from 3.3 V to 3.6 V. Robust ESD protection ensuring device longevity.
MultiTRAK technology for superior data throughput in mixed-speed USB environments. Programmable pin locations aiding easy alignment with PCB connectors. Operating temperature range of 0°C to 85°C suitable for many industrial and consumer devices.
This USB controller is ideal for embedded systems, mobile computing, and consumer electronics requiring a reliable and compact USB interface IC. Its versatility and performance make it a preferred choice for industry applications demanding efficient USB expansion solutions.
Explore more semiconductor and USB interface IC products at EnvMart to find compatible components for your application needs.
Explore more products in our USB Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a single power supply voltage ranging from 3.3 V to 3.6 V.
The USB2512B/M2 comes in a 36-pin SQFN package, measuring 6.1 mm in length and 0.95 mm in height.
It operates effectively within a temperature range of 0°C to 85°C.
This model supports the I2C protocol for configuration and control, as well as USB 2.0 for data transmission.
This controller is suitable for embedded systems, mobile computing, and consumer electronics requiring a compact USB interface.
MultiTRAK technology enables high-performance multiple transaction translation, allowing for efficient USB data throughput on each port.
This model features a pin count of 36.
The USB2512B/M2 is designed for surface mounting.
This model is part of the USB251 series.
The country of origin for the USB2512B/M2 is India.
