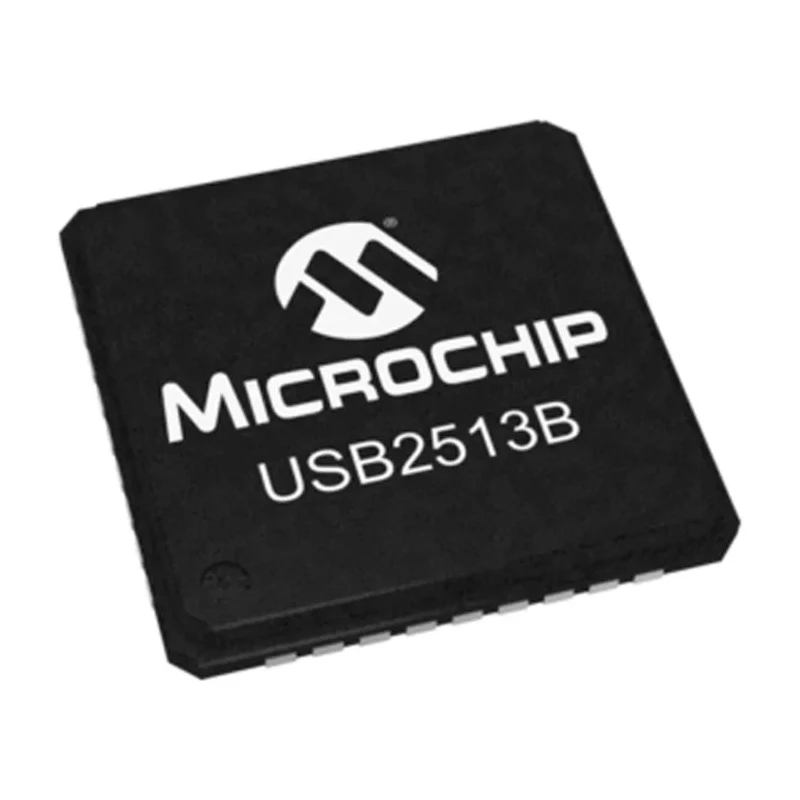

Microchip USB2513BI-AEZG USB 2.0 Controller IC 1-Channel 480 Mbps 3.3-4.6 V 36-Pin QFN USB2513BI-AEZG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 6.15mm |
| Model | USB2513BI-AEZG |
| Mount Type | Surface |
| Series | USB251 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Pin Count | 36 |
| Maximum Supply Voltage | 4.6V |
| Minimum Supply Voltage | 3.3V |
| Maximum Data Rate | 480Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | USB 2.0 |
Key Features
- Supports USB Battery Charging specification Rev. 1.1 for Charging Downstream Ports.
- Features MultiTRAK technology with dedicated Transaction Translator per port.
- Includes PortMap, PortSwap, and PHYBoost for PCB layout flexibility and signal integrity.
- Operates with supply voltage range of 3.3 V minimum to 4.6 V maximum.
- Surface mount package with 36-pin QFN facilitates compact PCB designs.
- Wide operating temperature range from -40°C to 85°C ensures reliability in various environments.
- Supports Hi-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) USB communications.
- Drop-in replacement for USB251x/USB251xA devices simplifies upgrades and repairs.
Product Description
Microchip USB2513BI-AEZG is a high-performance USB 2.0 compliant controller IC designed for USB interface applications requiring a single-channel hub with 480 Mbps data rate. Featuring advanced MultiTRAK™ technology, each downstream port gets a dedicated Transaction Translator (TT), delivering consistent full-speed data throughput regardless of the number of active connections. The device supports USB Battery Charging specification Rev. 1.1, enabling charging downstream ports (CDP) functionality.
The USB2513BI-AEZG offers extensive configurability to simplify PCB design and implementation. PortMap allows flexible port remapping and disable sequencing, while PortSwap lets you program USB differential-pair pin locations to align signal lines directly with connectors. PHYBoost enhances USB signal drive strength, maintaining signal integrity across various layouts. It supports multiple USB speeds including Hi-Speed (480 Mbps), Full-Speed, and Low-Speed communications.
Supplied in a compact 36-pin QFN surface mount package measuring 6.15 mm in length and 0.95 mm height, this controller IC is optimized for space-constrained electronic designs. The power supply operates between 3.3 V minimum and 4.6 V maximum, compatible with typical USB-powered devices. The operating temperature range from -40°C to 85°C ensures robust performance in industrial, automotive, and commercial environments.
The USB2513BI-AEZG serves as a drop-in replacement for previous USB251x and USB251xA devices, providing an easy upgrade path without requiring redesigns. Its integration in industrial, laboratory, and electronic manufacturing facilitates reliable USB 2.0 interface hubs supporting multiple downstream devices, with power management options and enhanced data throughput.
Key technical benefits include low power consumption, high data rate support, flexible port management, and compliance with USB standards. These features make it suitable for applications in electronic components, semiconductor interface ICs, and USB hub controller modules.
Supports USB Battery Charging Rev. 1.1 to enhance charging capability on USB ports. MultiTRAK™ technology ensures dedicated high-performance transaction translation per downstream port. PortMap and PortSwap enable customizable port and pin configurations to simplify PCB layouts.
PHYBoost elevates signal drive strength to maintain USB signal quality under varying conditions. Wide operating temperature and voltage range cater to diverse industrial and commercial use cases.
For engineers and developers requiring a reliable, USB 2.0 standard-compliant controller with flexible configurations and robust performance, the Microchip USB2513BI-AEZG is a leading component choice. Explore more USB Interface ICs by Microchip at EnvMart and access technical support for your design and manufacturing needs.
