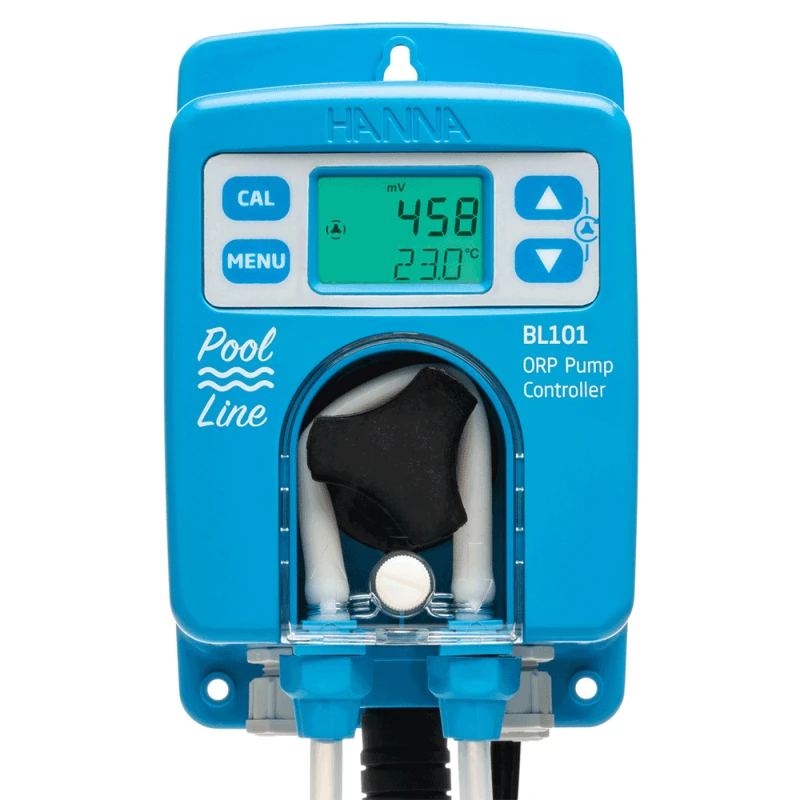

Pool Line ORP Controller and Dosing Pump - BL101-Meter and probe

Name: Pool Line ORP Controller and Dosing Pump - BL101-Meter and probe
Brand: Hanna
SKU: 72872
Price: 463.93 USD
Availability: InStock



Category Dosing Pumps Brand Hanna

Specifications

Country of Origin	India
Package Contents	ORP controller, dosing pump, HI20083 probe, mounting hardware
Temperature Accuracy	±0.5 °C
Power Consumption	15 VA
Power Supply	100–240 Vac, 50/60 Hz
Dimensions	90 x 142 x 80 mm
Temperature Resolution	0.1 °C
Temperature range	-5.0 to 105.0 °C
Environment	0 to 50 °C, max. 95% RH non-condensing
ORP Range	-2000 to 2000 mV

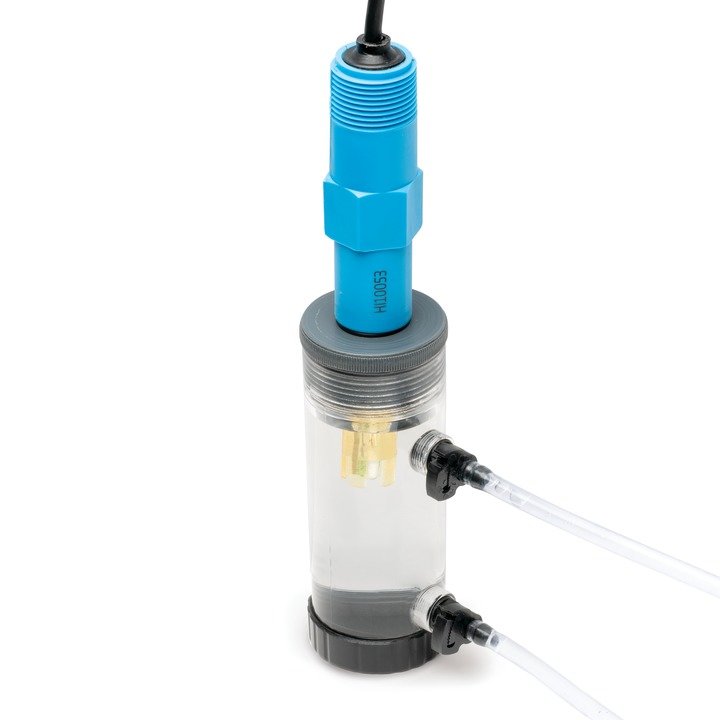

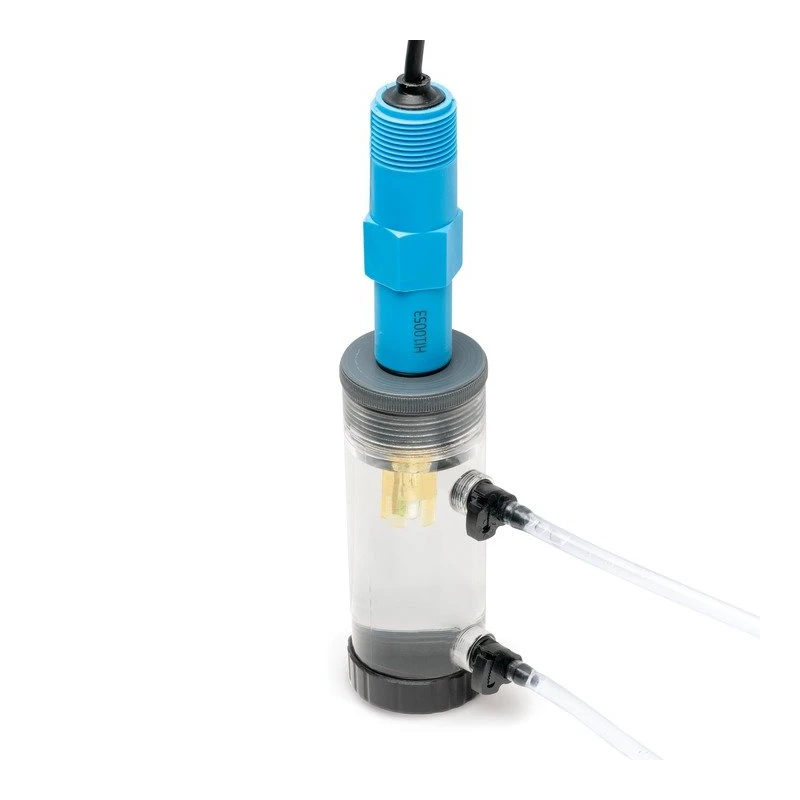

ORP Electrode	HI20083 ORP/temperature probe with quick connect DIN connector (supplied)
ORP Resolution	1 mV
ORP Accuracy	±5 mV
Model	BL101
IP Rating	IP65
Alarm Relay Set Point	Triggered after 5 sec. if readings exceed threshold
Enclosure	Wall mounted with built-in pump
Weight	0.91 Kg
System type	Pool Line ORP Controller and Dosing Pump, Meter and Probe
Product Condition	New
MPN	BL101

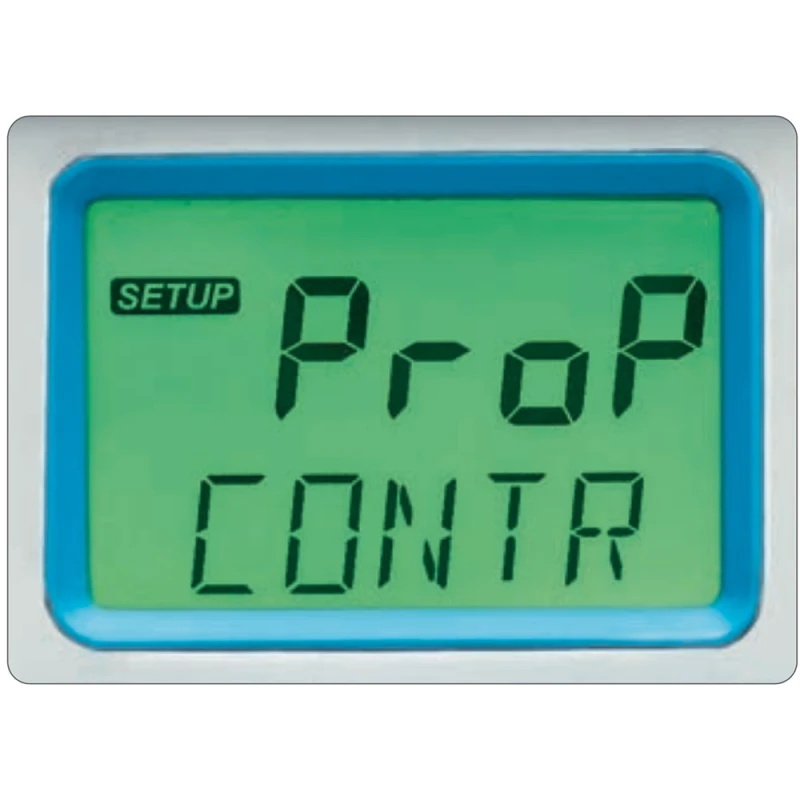

Dosing Control	Proportional and on/off control
Electrode Connection	Quick connect DIN
Overdosing Control	Overtime protection (1 to 180 min. or Off)

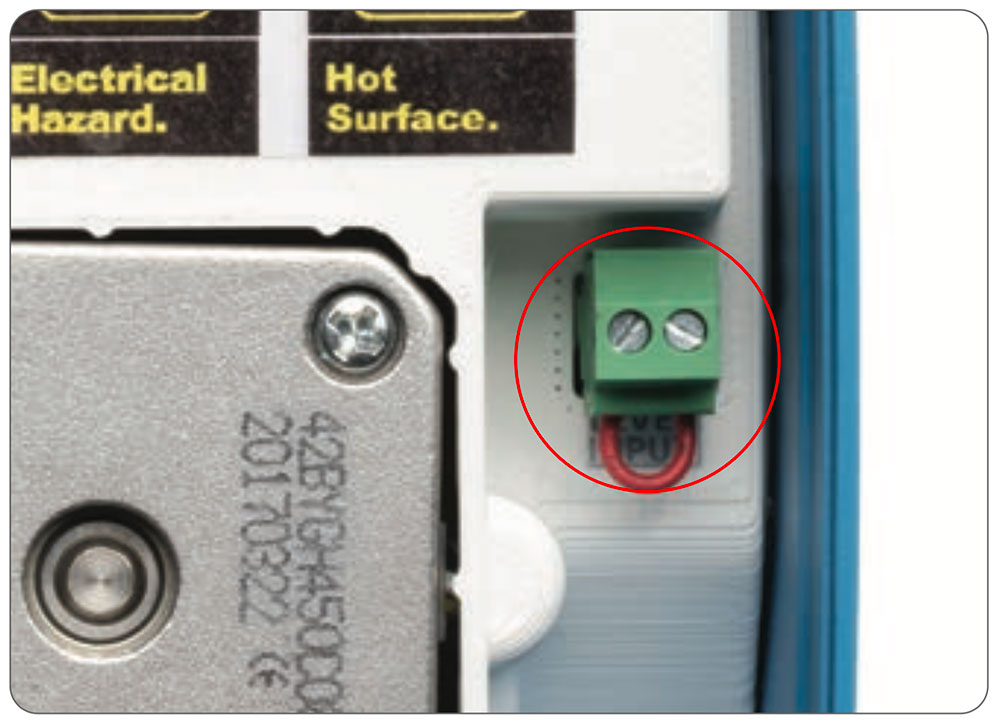

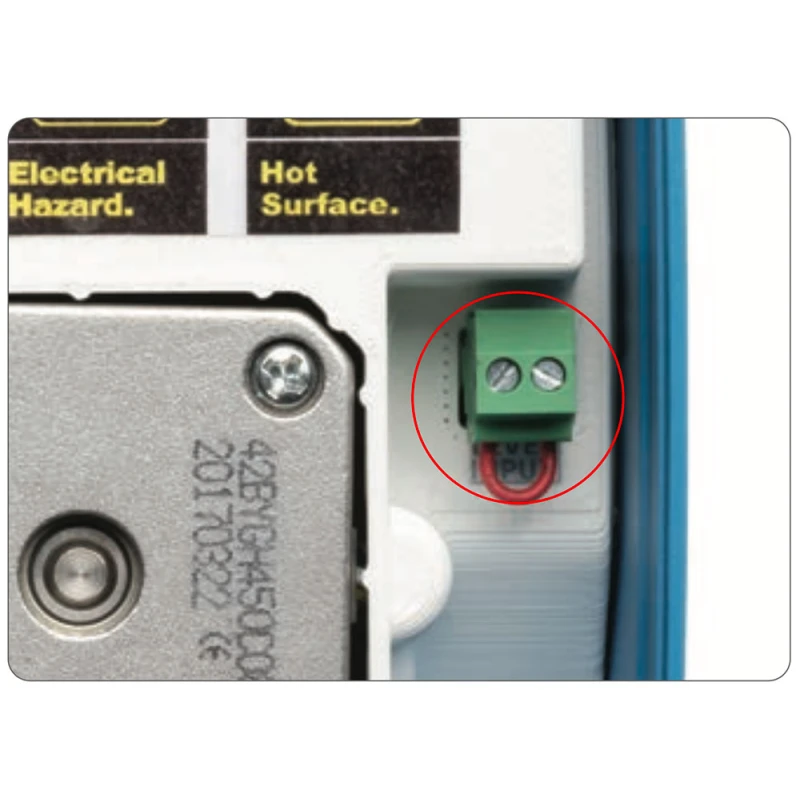

Digital Input Signal	Allows external switches (hold for low reagent or pump status)
Process Calibration	Single point, adjustable (±50 mV)

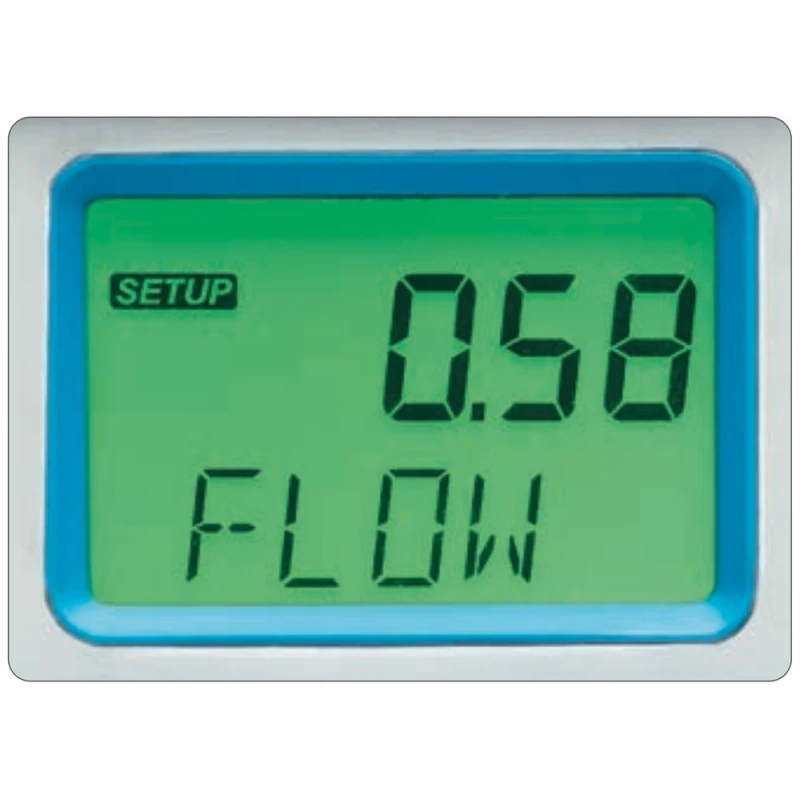

Dosing Flow Rate	0.5 to 3.5 L/h

Key Features

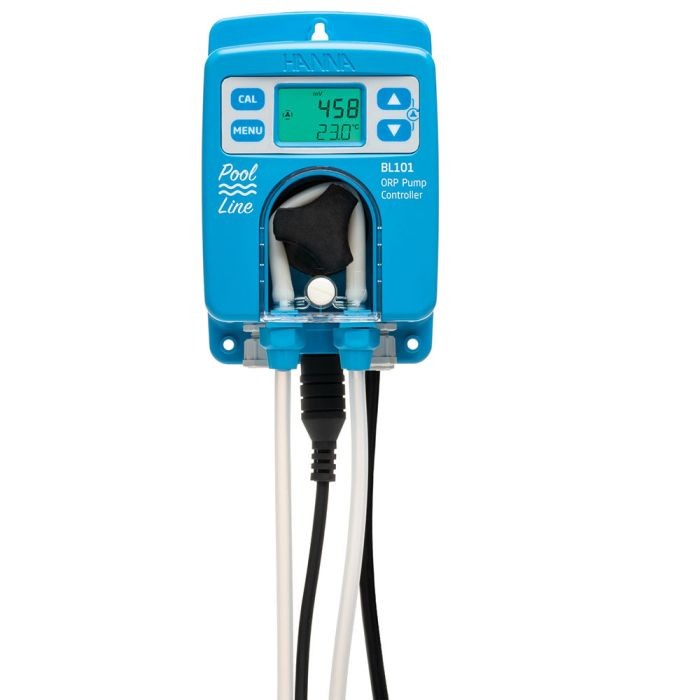

BL101 Pool Line ORP Controller and Dosing Pump is a compact industrial system for maintaining oxidation-reduction potential in pools, hot tubs, and spas.

Integrated system includes both an ORP controller and a chemical dosing pump for all-in-one operation.
Features a process probe with 1/2'' NPT threads for easy in-line mounting in recirculation lines.
Selectable dosing flow rate from 0.5 to 3.5 L/h covers a range of pool and spa sizes.
Alarm relay for protection, with set points triggered by over/under ORP conditions and overtime dosing control.
Digital input signal allows for external hold via low reagent level or recirculation pump status.

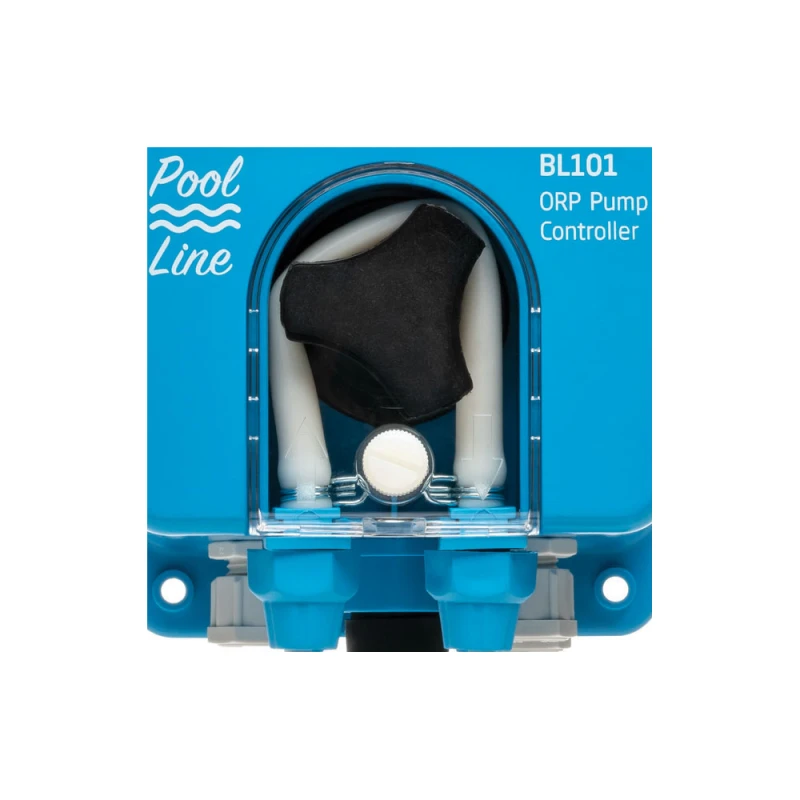

Manual pump priming, proportional and on/off dosing control, and adjustable dosing set points for precise chemical dosing.
Wide ORP measurement range (-2000 to 2000 mV) with ±5 mV accuracy and 1 mV resolution.
Supplied with HI20083 ORP/temperature probe using a quick-connect DIN connector.
Wall-mount enclosure with IP65 protection ensures durability in poolside environments.
Suitable for commercial, residential, and industrial pool and spa water quality management.

Product Description

The BL101 Pool Line ORP Controller and Dosing Pump is an engineered solution designed to help maintain the ideal oxidation-reduction potential (ORP) in swimming pools, hot tubs, and spas. This integrated system is the practical choice for homeowners, facility managers, and maintenance professionals who require continuous and reliable water disinfection control. It incorporates a precision process controller and a chemical dosing pump in a single wall-mount enclosure for convenient operation and installation.

Key features include a robust ORP probe with 1/2'' NPT threads, input for level or flow control switches, and selectable manual or proportional dosing from 0.5 to 3.5 L/hour. The BL101 enables precise dosage of oxidizers such as liquid chlorine based on real-time ORP readings for automated water quality control. Protective functions like alarm relay activation and overtime dosing protection further promote system safety and reliability.

Integrated controller and chemical dosing pump for all-in-one water treatment solution.
Adjustable dosing set points (200 to 900 mV) and proportional band (10–200 mV) for fine-tuned automation.
Durable wall-mounted enclosure with IP65 ingress protection for challenging indoor and outdoor environments.
Process calibration with single-point, adjustable (±50 mV around measured value) for on-site adaptability.
Wide measurement (–2000 to 2000 mV) and temperature range (–5°C to 105°C), supporting broad operational flexibility.
Manual control facilitates pump priming and maintenance operations.
Supplied with HI20083 ORP/temperature probe and quick-connect DIN connector for fast setup.
Alarm relay and overtime protection (1 to 180min or off) minimize risks of improper dosing and ensure robust unattended operation.
Digital input for hold, compatible with level controller or flow switch interruption for safer operation.
Ideal for water quality management in industrial, residential, and commercial pools and spas.

Typical applications: pool and spa water sanitation, water treatment management in hotels, residences, and recreational facilities, or any installation requiring precise, automated ORP regulation and chemical dosing control.

Explore more advanced water quality controllers and dosing technology in the Laboratory Instruments & Supplies category at EnvMart.

Pool Line ORP Controller and Dosing Pump - BL101-Meter and probe

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The BL101 Pool Line ORP Controller is designed to maintain the ideal oxidation-reduction potential (ORP) in swimming pools, hot tubs, and spas, ensuring effective water disinfection.

The dosing pump supports a selectable flow rate from 0.5 to 3.5 liters per hour, making it suitable for various pool and spa sizes.

Yes, the BL101 is ideal for commercial, residential, and industrial applications, providing reliable water quality management across different environments.

The system includes an alarm relay for over/under ORP conditions and overtime dosing control, enhancing safety and reliability during operation.

The ORP probe is supplied with a quick-connect DIN connector, allowing for easy setup and installation in your pool's recirculation lines.

The enclosure has an IP65 rating, ensuring it is protected against dust and water, making it durable for poolside environments.

Yes, the BL101 allows for manual pump priming and control, providing flexibility for maintenance operations and adjustments.

The ORP measurement range is from -2000 to 2000 mV, with an accuracy of ±5 mV and a resolution of 1 mV, allowing for precise monitoring.

The dosing set points can be adjusted between 200 to 900 mV, along with a proportional band of 10–200 mV for fine-tuned automation.

The BL101 is suitable for pool and spa water sanitation, water treatment management in hotels, residences, and recreational facilities requiring automated ORP regulation.
