Pool Line BL101 ORP Controller and Dosing Pump, Panel Mounted Flow Cell | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Pool Line ORP Controller and Dosing Pump - BL101-Meter, probe and panel mounted flow cell kit

Name: Pool Line ORP Controller and Dosing Pump - BL101-Meter, probe and panel mounted flow cell kit
Brand: Hanna
SKU: 72874
Price: 772.84 USD
Availability: InStock



Category Dosing Pumps Brand Hanna

Specifications

Country of Origin	India
Temperature Accuracy	±0.5 °C
Power Consumption	15 VA
Power Supply	100 – 240 Vac, 50/60 Hz
Dimensions	90 x 142 x 80 mm
Temperature Resolution	0.1 °C
Temperature range	-5.0 to 105.0 °C
Environment	0 to 50 °C, max. 95% RH non-condensing
ORP Range	-2000 to 2000 mV
ORP Electrode	HI20083 ORP/temperature probe with quick connect DIN connector (supplied)
ORP Accuracy	±5 mV
Model	BL101
Alarm Relay Set Point	Triggered after 5 sec. if threshold exceeded
Application	Swimming pools, hot tubs, spas, industrial and commercial water treatment
Enclosure	Wall mounted with built-in pump
Weight	0.91 Kg
Enclosure Rating	IP65
Controller Type	Process ORP Controller with Dosing Pump
Product Condition	New
MPN	BL101
Over Dosing Control	Overtime protection (1 to 180 min. or Off)
Digital Input Signal	Supports external hold switches
ORP Calibration	Single point, adjustable (±50 mV around measured value)
Dosing Flow Rate	Selectable 0.5 to 3.5 L/hour (manual control for pump priming)
ORP Dosing Set Point	Adjustable 200–900 mV
ORP Hysteresis Band	Adjustable 10–100 mV
ORP Proportional Band	Adjustable 10–200 mV
Probing Thread Size	1/2" NPT

Key Features

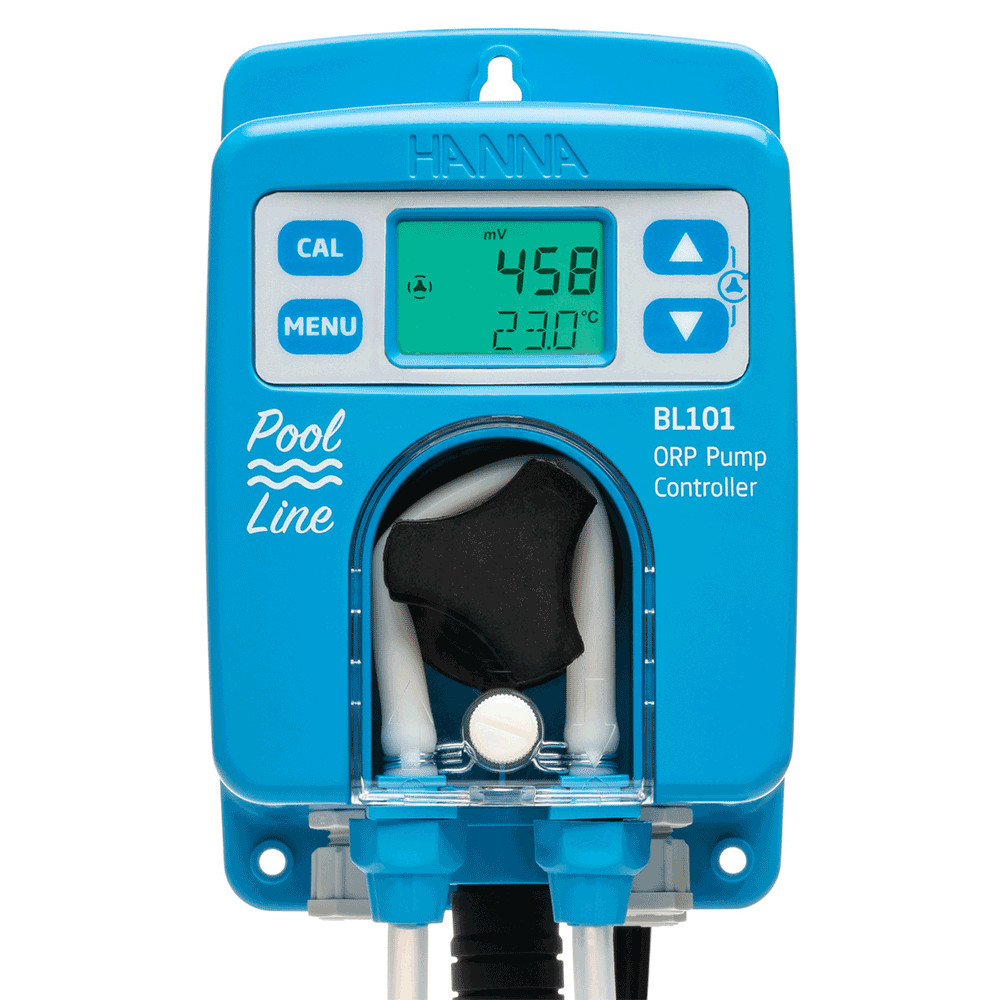

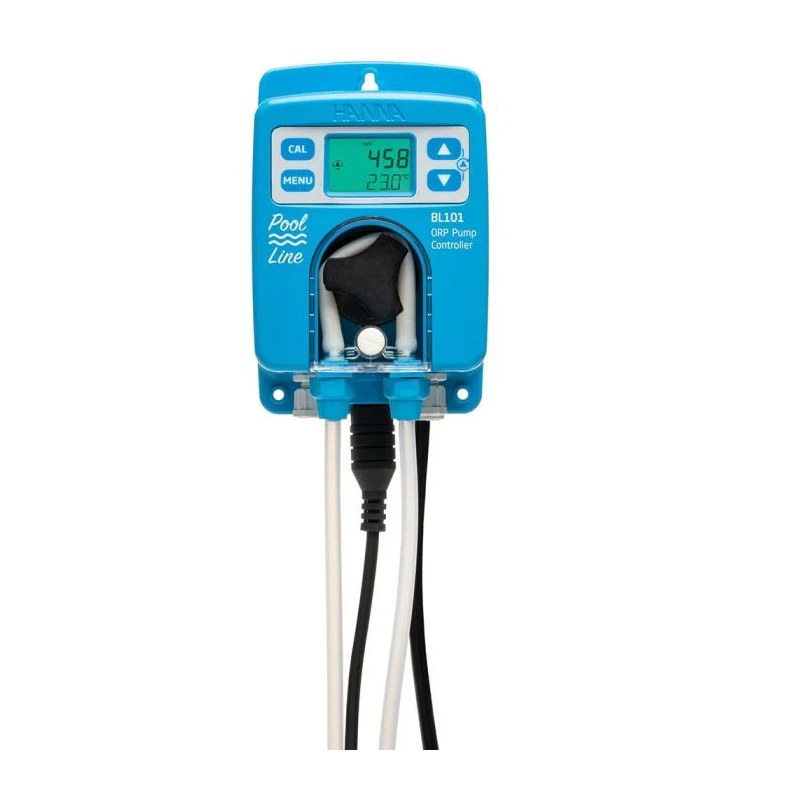

Pool Line BL101 ORP Controller and Dosing Pump offers an integrated solution for maintaining ORP in pools and spas.

Combines process controller and chemical dosing pump in a single wall-mounted enclosure.
Supports input for external level controller or flow switch for added safety.
Features an industrial process probe with 1/2″ NPT threads for in-line installation.
Wide ORP dosing set point adjustable from 200 to 900 mV with single point calibration.
Supports proportional and on/off dosing control for optimal chemical management.
Selectable flow rate from 0.5 to 3.5 L/hour, manual pump priming, and overtime protection.
IP65-rated enclosure for reliable indoor or outdoor installation.
Operates on 100–240 VAC, 50/60 Hz power supply for global compatibility.
High/low mode alarm relay with set point, and digital input for external control/hold.
Supplied with HI20083 ORP/temperature probe and quick connect DIN connector.

Product Description

The Pool Line ORP Controller and Dosing Pump, model BL101, delivers a comprehensive solution for ensuring optimal oxidation-reduction potential (ORP) regulation in swimming pools, hot tubs, and spas. Designed for both homeowners and maintenance professionals, this system integrates a high-accuracy ORP controller with a robust chemical dosing pump, all within an IP65 wall-mounted enclosure.

The BL101 system features a process probe with 1/2″ NPT threads for direct insertion into the recirculation line, ensuring precise real-time monitoring of the pool water’s ORP values. The controller offers a dosing set point adjustable between 200 and 900 mV, with hysteresis (10–100 mV) and proportional band (10–200 mV) adjustments for tailored dosing control. Single-point process calibration allows for ±50 mV correction around the measured value, maintaining chemical balance effectively.

Combines a digital process controller and chemical dosing pump for complete pool water management.
Wide selectable dosing flow rate (0.5–3.5 L/hour) to accommodate different pool or spa sizes.
Alarm relay with adjustable set point is activated after consecutive readings beyond threshold, enhancing safety.
Temperature monitoring from -5.0 to 105.0 °C with ±0.5 °C accuracy ensures proper chemical reactions.
Power supply of 100–240 VAC, 50/60 Hz provides worldwide compatibility.
Proportional and on/off dosing operation, with over-dosing control (1–180 min. or Off) prevents excessive chemical addition.
Includes HI20083 ORP/temperature probe with quick connect DIN, ensuring rapid setup and reliable readings.
Wall-mount, IP65 enclosure designed for durability in humid or outdoor pump areas.

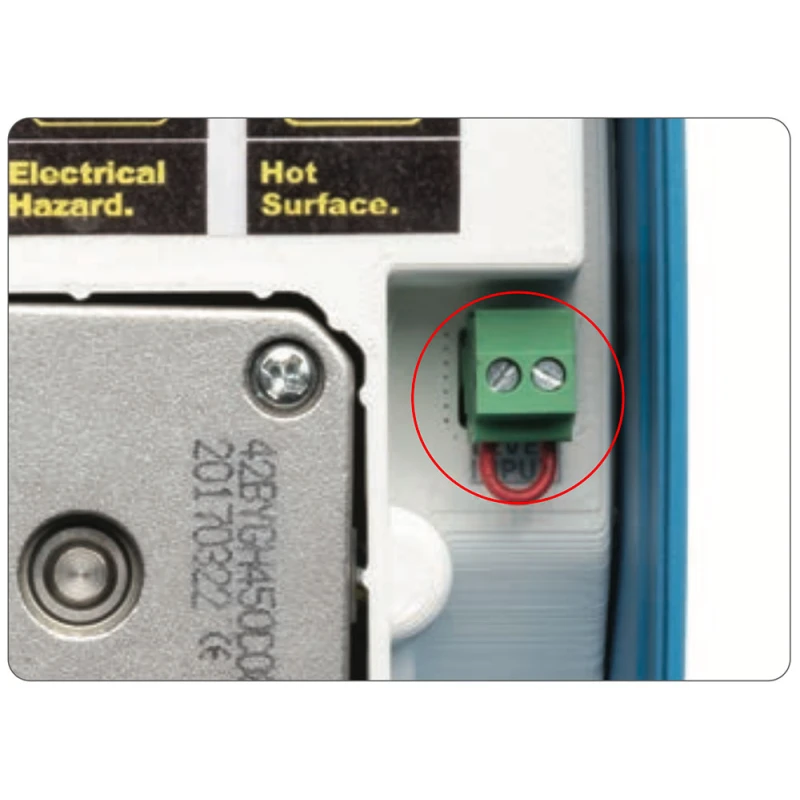

Digital input terminal supports connection to external hold switches, such as low reagent sensors or pump interlocks.

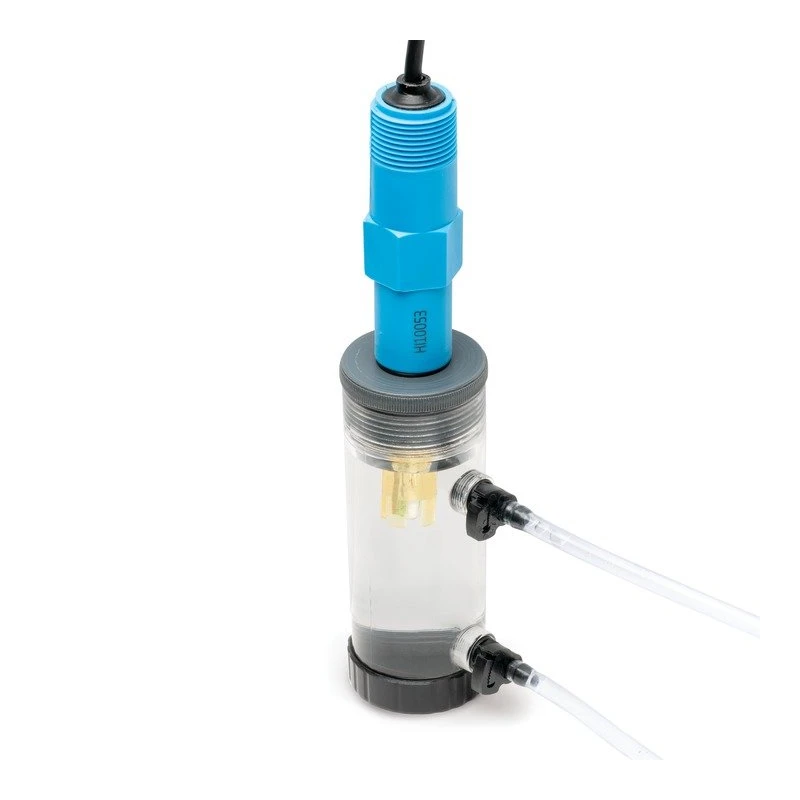

Typical industrial and commercial use cases: water treatment, municipal pool maintenance, hotel and resort pools, residential pool automation, and chemical process management for water features. System comes complete with panel mounted flow cell kit and all required installation hardware. For further selection of pool automation and water quality control devices, explore EnvMart’s full range in this industrial category.

Pool Line ORP Controller and Dosing Pump - BL101-Meter, probe and panel mounted flow cell kit

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The Pool Line BL101 ORP Controller is designed to maintain optimal oxidation-reduction potential (ORP) levels in swimming pools and spas, ensuring safe and clean water through precise chemical dosing.

The dosing pump in the BL101 system allows for proportional and on/off dosing control, adjusting the flow rate between 0.5 to 3.5 L/hour based on the ORP levels detected, ensuring accurate chemical management.

The ORP dosing set point is adjustable from 200 to 900 mV, allowing for tailored chemical dosing based on specific pool or spa requirements.

Yes, the BL101 features an IP65-rated enclosure, making it suitable for both indoor and outdoor installations, providing durability in humid environments.

The BL101 operates on a power supply of 100–240 VAC at 50/60 Hz, making it compatible for use in various global locations.

The BL101 includes a high/low mode alarm relay with adjustable set points, and supports external control inputs for additional safety measures, such as low reagent sensors.

Yes, the BL101 allows for single-point calibration with a correction range of ±50 mV around the measured value, ensuring accurate readings and chemical balance.

The BL101 system comes complete with the HI20083 ORP/temperature probe, a panel-mounted flow cell kit, and all necessary installation hardware for quick setup.

The BL101 is suitable for various facilities, including municipal pools, hotels, resorts, residential pools, and water treatment facilities, providing effective water quality management.

The BL101 monitors temperature from -5.0 to 105.0 °C with an accuracy of ±0.5 °C, ensuring that chemical reactions occur effectively within the appropriate temperature range.
