BL101 Pool Line ORP Controller and Dosing Pump, Meter, Probe, 0.5–3.5 L/h, 100–240V, IP65 | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Pool Line ORP Controller and Dosing Pump - BL101-Meter, probe and in-line mounting kit

Name: Pool Line ORP Controller and Dosing Pump - BL101-Meter, probe and in-line mounting kit
Brand: Hanna
SKU: 72873
Price: 619 USD
Availability: InStock



Category Dosing Pumps Brand Hanna

Specifications

Country of Origin	India
Package Contents	Meter, HI20083 probe, in-line mounting kit
Temperature Accuracy	±0.5 °C
Power Supply	100 – 240 Vac, 50/60 Hz
Flow Rate	0.5 to 3.5 L/h
Dimensions	90 x 142 x 80 mm
Temperature Resolution	0.1 °C
Product Type	ORP Controller and Dosing Pump
Temperature range	-5.0 to 105.0 °C
Calibration	Single-point, ± 50 mV
Environment	0 to 50 °C, max. 95% RH non-condensing
ORP Range	-2000 to 2000 mV
ORP Resolution	1 mV
ORP Accuracy	±5 mV
Model	BL101
IP Rating	IP65
Alarm Relay Set Point	Configurable, 5 sec. delay
Enclosure	Wall mounted with built-in pump
Weight	0.91 Kg
Product Condition	New
MPN	BL101
Maximum Flow Rate	3.5 L/h
Over Dosing Control	Overtime protection (1 to 180 min or Off)
ORP Dosing Range	200 to 900 mV
Electrode/Probe	HI20083 ORP/temperature probe supplied
Dosing Control Modes	Proportional and on/off control

Key Features

BL101 Pool Line ORP Controller and Dosing Pump is a comprehensive solution for maintaining ideal oxidation-reduction potential (ORP) in swimming pools and hot tubs.

Designed for continuous monitoring and regulation of ORP via integrated dosing control.
Supports both proportional and on/off dosing control modes.

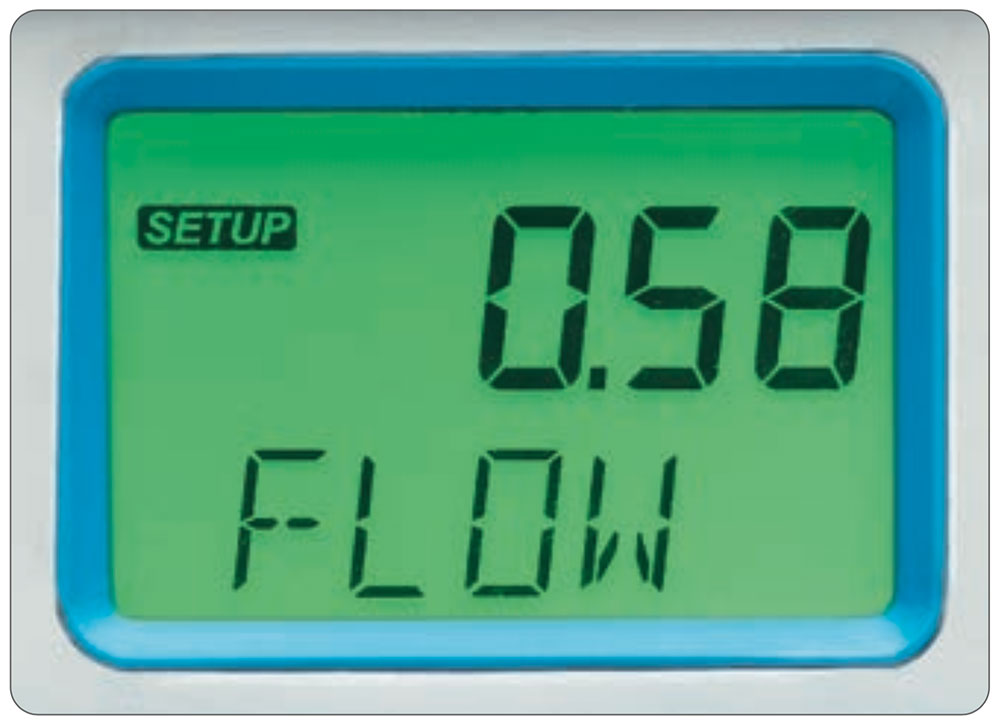

Operates with selectable flow rate from 0.5 to 3.5 L/h for precise chemical dosing.
Includes an industrial process probe with 1/2″ NPT threads and quick-connect DIN connector (HI20083) for seamless in-line mounting.

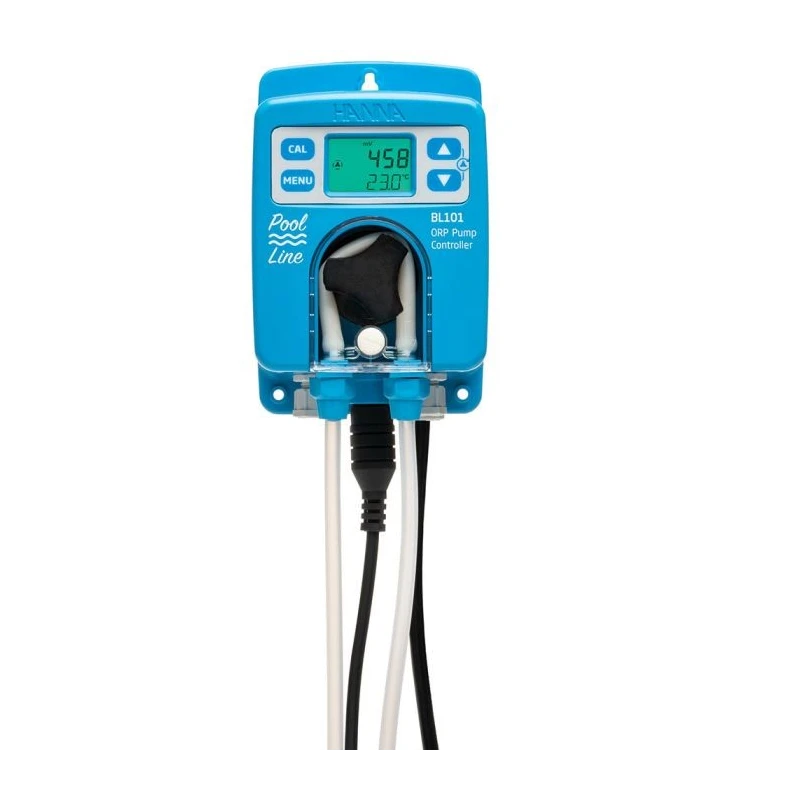

Wall-mounted enclosure with built-in pump and IP65-rated robust construction.
Accepts 100–240 Vac, 50/60 Hz power supply input for flexible installation.

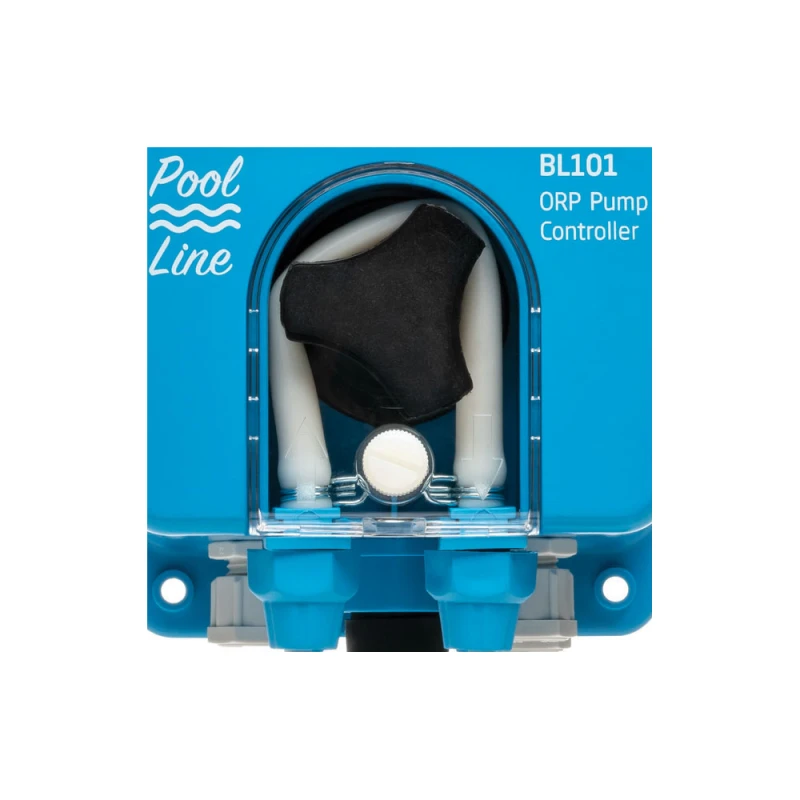

Manual control function for fast pump priming and system setup.
Features alarm relay with programmable set point and over-dosing protection.
Suitable for pools, spas, hot tubs, commercial, hospitality, and water treatment applications.
Supplied with meter, probe, and in-line mounting kit for complete integration.

Product Description

The BL101 Pool Line ORP Controller and Dosing Pump provides an all-in-one solution for precise chemical management of swimming pools, hot tubs, and spas. Equipped with a process controller and integrated dosing pump, this system ensures optimum oxidation-reduction potential (ORP) is maintained at all times. Operating with a selectable dosing flow rate between 0.5 to 3.5 L/h, the BL101 is engineered to deliver reliable, proportional, and on/off control for various pool environments.

Continuous digital monitoring and dosing to maintain user-set ORP values from 200 to 900 mV.
Process calibration with single-point adjustment (±50 mV around measured ORP).

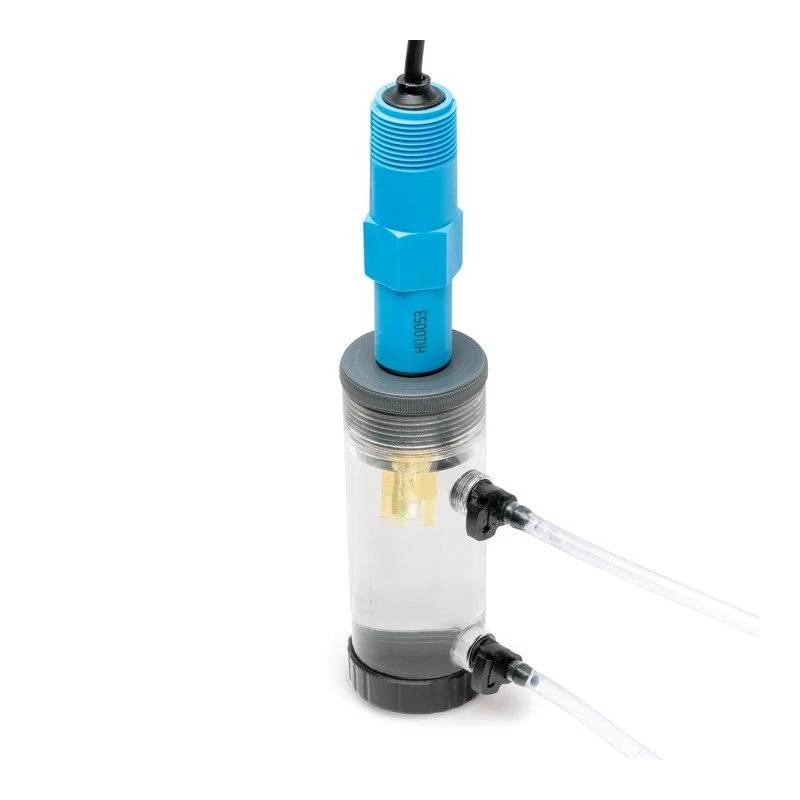

HI20083 ORP/temperature probe with quick connect DIN connector included.
Wall-mounted design with IP65 enclosure suitable for outdoor and pump room installations.

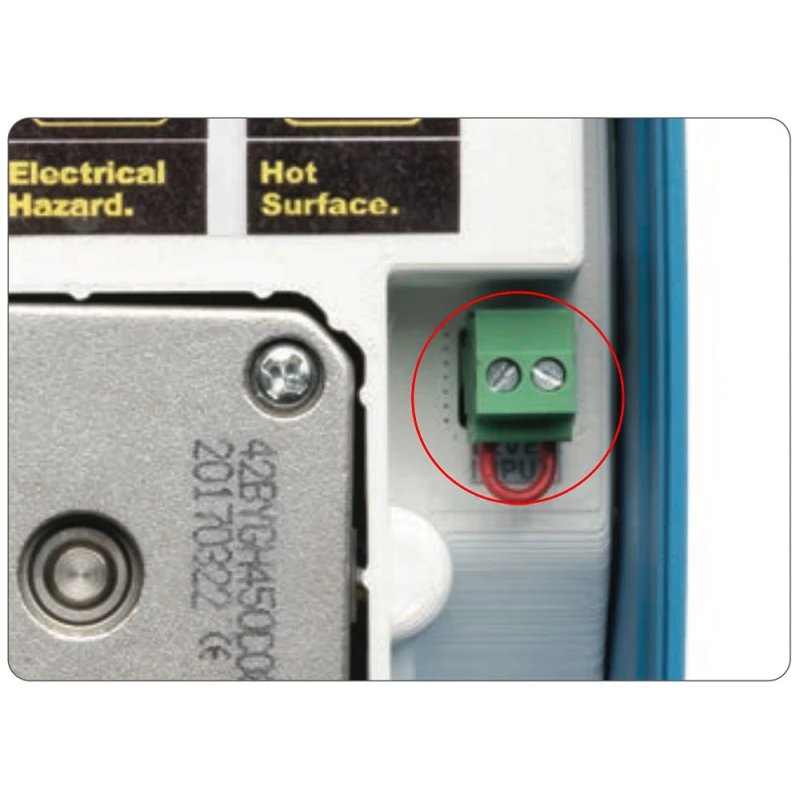

System features alarm relay, automatic over-dosing protection, and digital input signal for external events such as reagent level or recirculation pump status.
Overdosing control with adjustable overtime protection (1 to 180 min or Off).
Manual priming and external input signal interface for operational flexibility.

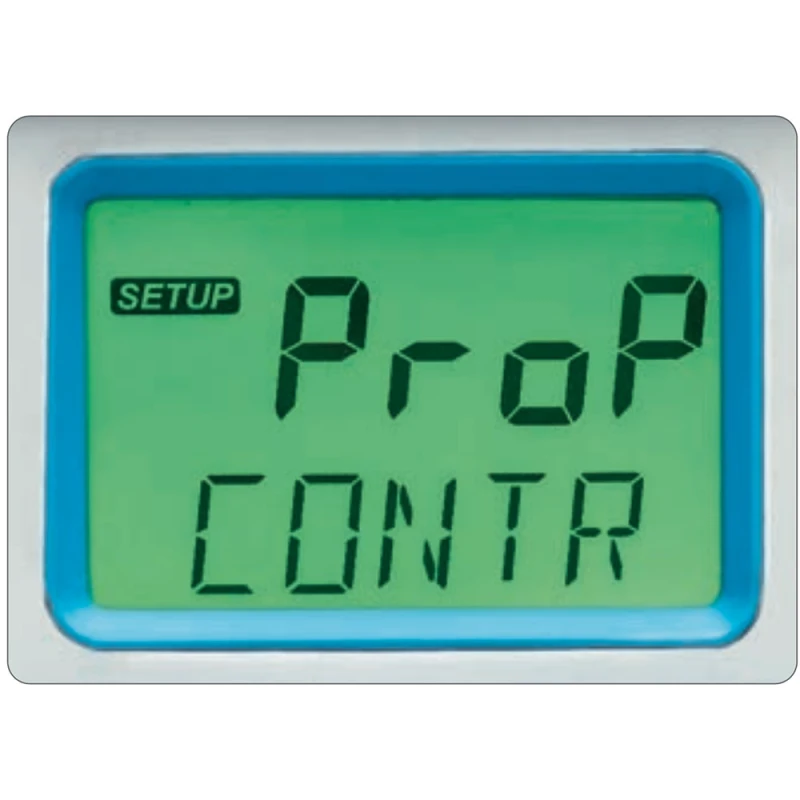

Adjustable hysteresis and proportional band for optimal dosing accuracy.

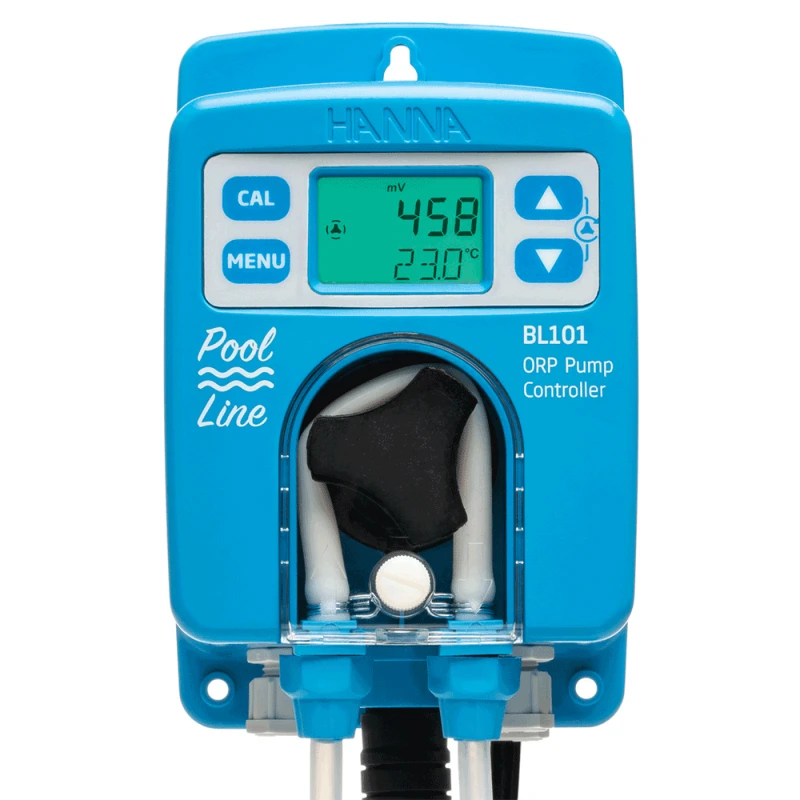

LCD meter, dosing pump, probe, and in-line mounting accessories supplied as a ready-to-install kit.
Typical industrial and commercial use cases: water treatment plants, commercial swimming pools, hospitality, and facility maintenance sectors.

Set includes: Meter, HI20083 probe, in-line mounting kit. Explore more ORP controllers and dosing pumps in Swimming Pool and Spa Controllers category on EnvMart.

Pool Line ORP Controller and Dosing Pump - BL101-Meter, probe and in-line mounting kit

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The BL101 Pool Line ORP Controller is designed to maintain the ideal oxidation-reduction potential (ORP) in swimming pools and hot tubs by continuously monitoring and regulating chemical dosing.

The dosing pump has a selectable flow rate ranging from 0.5 to 3.5 liters per hour, allowing for precise chemical dosing based on your pool's requirements.

Yes, the BL101 features an IP65-rated enclosure, making it suitable for outdoor installations and resistant to dust and water ingress.

The alarm relay allows you to set programmable thresholds for ORP levels, providing alerts for over-dosing protection and other operational conditions.

The BL101 operates on a power supply of 100–240 Vac, 50/60 Hz, which provides flexibility for various installation environments.

Yes, the BL101 is designed for both residential and commercial applications, including swimming pools, hot tubs, and water treatment facilities.

The BL101 comes with a meter, an HI20083 ORP probe, and an in-line mounting kit, providing a complete solution for installation and operation.

The BL101 features a manual control function that allows for quick pump priming and system setup, enabling immediate adjustments as needed.

The BL101 includes an industrial process probe (HI20083) with 1/2″ NPT threads and a quick-connect DIN connector for easy in-line mounting.

The adjustable hysteresis allows you to set a range around the target ORP value, optimizing the dosing accuracy by preventing frequent on/off cycling of the pump.
