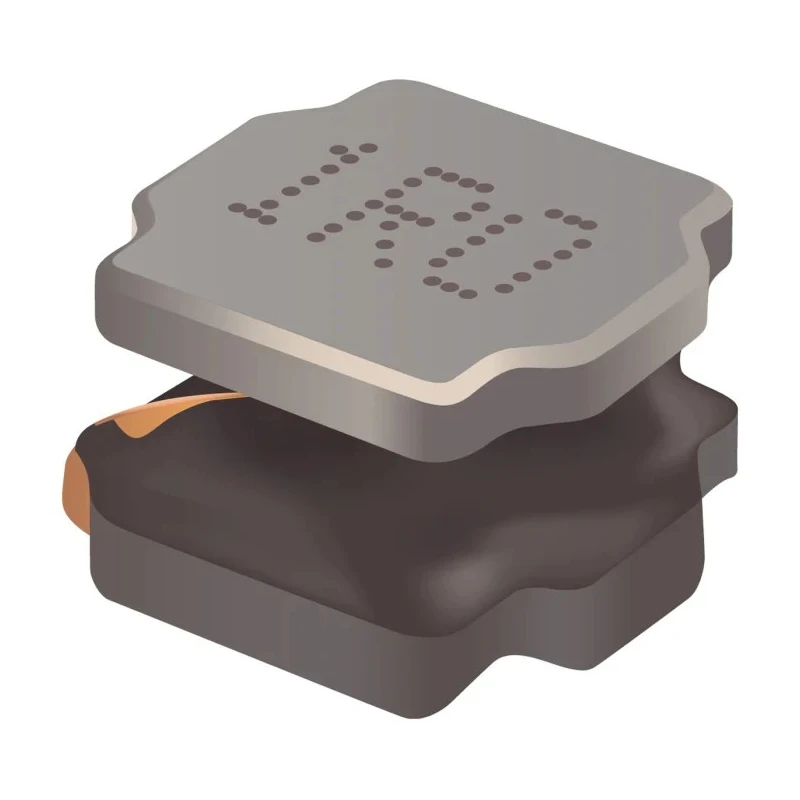

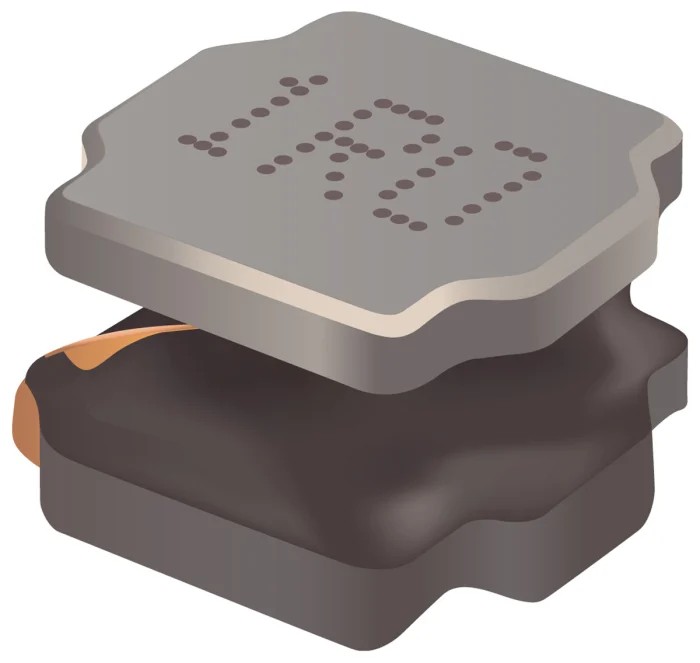

Bourns Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH Semi Shielded ±20 % 3.2 A Idc SRN6045TA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 330mm |
| Brand | Bourns |
| Height | 4.2mm |
| Length | 6mm |
| Model | SRN6045TA |
| Depth | 6mm |
| Series | SRN6045TA |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 3.2A |
| Maximum DC Resistance | 52mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 25MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Semi Shielded |
| Automotive Standard | AEC-Q200 |
| Automotive systems | Driver assistant, information, lighting, entertainment |
Key Features
- This inductor features a ferrite core construction for high magnetic stability.
- It is semi magnetically shielded and suitable for surface mount PCB assembly.
- The device operates over a wide temperature range from -55°C to 125°C.
- It meets AEC-Q200 automotive standard for reliable automotive applications.
- Maximum DC resistance is 52 mΩ ensuring efficient current handling.
- The maximum self-resonant frequency is 25 MHz allowing stable operation in high frequency circuits.
- The inductor is moulded with a height of 4.2 mm, length and depth of 6 mm each.
- Termination style is surface mount, compatible with automated assembly processes.
Product Description
Bourns SRN6045TA Shielded Wirewound Surface Mount Inductor is a semi shielded power inductor with a ferrite core, designed specifically for high performance in automotive and industrial electronic systems. It offers an inductance value of 10 μH with a tolerance of ±20 % and supports a maximum DC current of 3.2 A, ensuring reliable power handling.
This inductor features a semi shielded wirewound construction encapsulated in a moulded package measuring 6 mm in length, 6 mm in depth, and 4.2 mm in height. Its ferrite core provides high magnetic permeability and excellent frequency response, with a maximum self resonant frequency of 25 MHz and a minimum quality factor of 15, suitable for noise suppression and signal conditioning.
The product complies with the stringent AEC-Q200 automotive standard, ensuring robust performance in harsh environments with operating temperatures ranging from -55°C to 125°C. Its low maximum DC resistance of 52 mΩ helps maintain efficiency in power circuits.
Common applications include automotive systems such as driver assistance, lighting, information handling, entertainment systems, as well as DC-DC converters, power supplies, television sets, and digital video devices. Its surface mount termination style enables compatibility with modern PCB manufacturing processes.
Ferrite core provides high magnetic stability and performance. Semi shielded construction reduces electromagnetic interference. Compliance with RoHS ensures environmental safety and compliance. AEC-Q200 qualification certifies automotive quality and reliability.
Designed for use in power supplies and automotive electronic subsystems.
Ensure to browse the Electronics Components category at EnvMart for additional Surface Mount Inductors and related electronic components designed for industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20%.
This inductor supports a maximum DC current of 3.2 A.
The inductor has a height of 4.2 mm, a length of 6 mm, and a depth of 6 mm.
The maximum self-resonant frequency is 25 MHz, allowing stable operation in high frequency circuits.
It operates over a wide temperature range from -55°C to 125°C.
The core material is ferrite, which provides high magnetic stability.
The maximum DC resistance is 52 mΩ, ensuring efficient current handling.
It meets the AEC-Q200 automotive standard for reliable automotive applications.
The termination style is surface mount, making it compatible with automated assembly processes.
Common applications include automotive systems, DC-DC converters, power supplies, and digital video devices.
The minimum quality factor is 15, suitable for noise suppression and signal conditioning.
Yes, it complies with RoHS, ensuring environmental safety and compliance.
